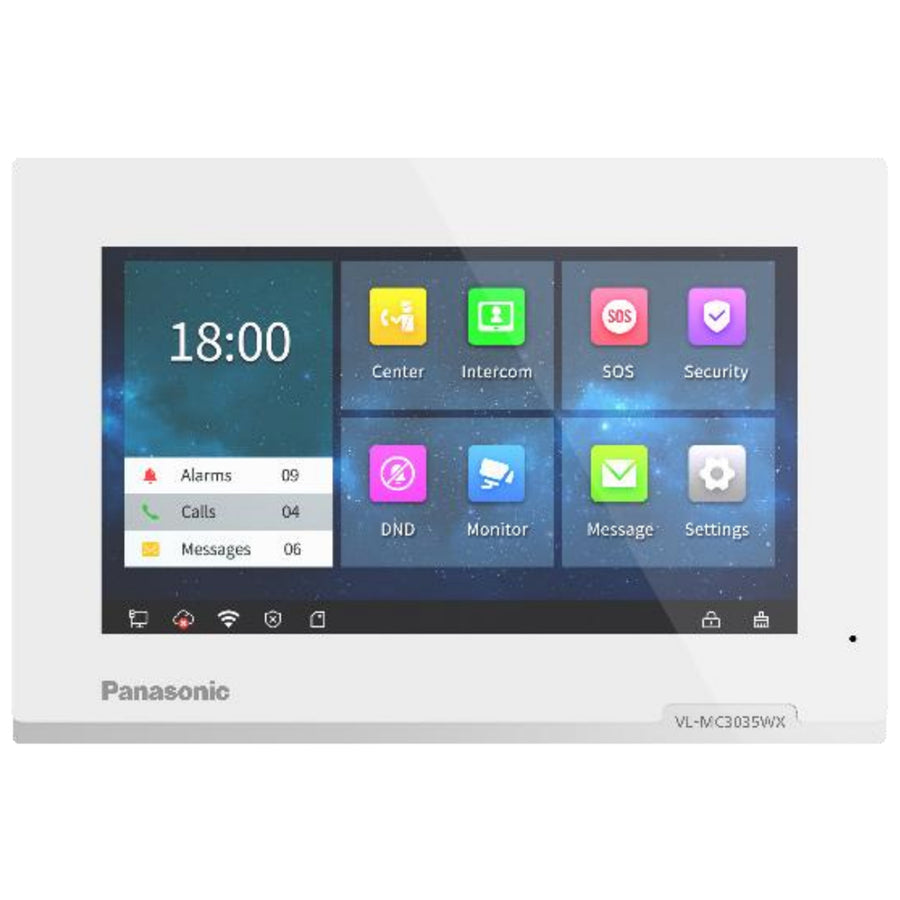

Panasonic VL-MC3035WX IP Colour Screen Video Intercom Monitor White WiFi Std POE

SKU: VL-MC3035WX ● In Stock

$381.98 ~~$549.58~~

Free shipping over $299 Genuine product 7-day returns

Features

PANASONIC VL-MC3035WX colour screen doorbell

This model is a 7-inch color touch screen room monitor used in Panasonic's IP Video Intercom Systems. It features a 1024 x 600 pixel resolution display and supports both wired (TCP/IP) and wireless (2.4GHz Wi-Fi) connections. The device operates on a Linux system with 128MB of flash memory and 64MB of RAM. It also includes a 32GB MicroSD card for storage.

Additionally, the VL-MC3035WX is part of the VL-SC3235WX IP Video Intercom kit, which includes the VL-VC3535BX doorbell camera. This kit supports Power over Ethernet (PoE) and various connection methods, enhancing home security with advanced technology and seamless connectivity.

- 7-inch capacitive touch colour screen.
- Resolution: 1024 x 600 pixels.
- Operating system: Linux.
- Flash: 128MB.
- RAM: 64MB.
- Storage (MicroSD card): 32GB (included).
- Connection: TCP/IP; IPv4; Wifi (WLAN 2.4GHz).
- Power supply: PoE (IEEE 802.3af compliant, Class 0 device); DC 12V, 630mA; DC 27V, 280mA.
- Supports QR code scanning function on Room Monitor screen using mobile application.
- Remote unlocking: The electronic lock is connected to the door station and opens the door remotely.
- Monitor door stations and IP & surveillance cameras in the same network.
- Supports smartphone connection.
- Colour: White.

Video Intercom

Supports both video and audio communication

Easy Binding

Allows scanning of QR codes displayed on the Room Monitor using mobile applications for quick setup

Remote Unlock

Enables remote unlocking of electronic locks connected to Door Stations

Second Doorbell Support

Includes a port for connection to traditional doorbell switches

SOS/Duress Function

Allows sending SOS alerts to connected mobile applications

Voice Messaging

Permits visitors to leave audio messages

Intercom Log

Maintains a log of call history

Video Recording

Automatically records video and audio during calls when a MicroSD card is inserted

Monitoring

Supports monitoring of door stations and IP surveillance cameras within the same network

Smartphone Connectivity

Allows connection with smartphones for remote monitoring and communication

Specifications

Technical Specifications

Dimensions	Approximately 130 mm (height) x 194 mm (width) x 15.9 mm (depth)
Color Options	White or Black with a silver bottom border
External Material	PMMA (Polymethyl Methacrylate) and ABS (Acrylonitrile Butadiene Styrene)
Operation	Capacitive touch screen
Installation	Compatible with 3"x 3" concealed boxes, 86 back boxes, and surface mount brackets with magnet
Screen Size	7-inch color display
Resolution	1024 x 600 pixels
Operating System	Linux
Flash Memory	128MB
RAM	64MB
Storage	Includes a 32GB MicroSD card for video and audio recording during calls
Network Protocols	TCP/IP, IPv4
Wireless Connectivity	Wi-Fi (WLAN 2.4GHz)
Power Supply Options	PoE (Power over Ethernet) compliant with IEEE 802.3af, Class 0 deviceDC 12V, 630mADC 27V, 280mA
