Panasonic

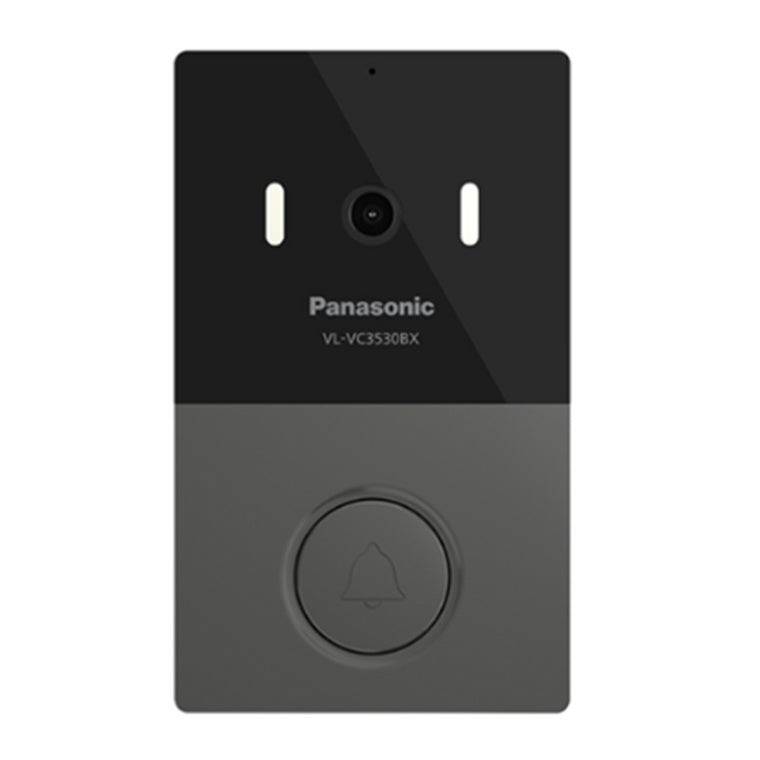

Panasonic VL-VC3530BX IP Video Intercom Door station - Indoor IP30 Std POE
$245.22
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Panasonic VL-VC3530BX IP Video Intercom Door station - Indoor IP30 Std POE
Specifications
Technical Specifications
| Operation system | Linux |
|---|---|
| Flash | 16MB |
| RAM | 64MB |
| Size | - |
| Operation Method | Mechanical Keys |
| Resolution | - |
| Video Compression | H.264 |
| Video Pixel | VGA, 720P |
| Camera Pixel | 1.0M pixel CMOS sensor 1/4-inch CMOS sensor 1.85mm EFL |
| Minimum Illuminance Required | 0.01lx (within approx. 50cm from the camera lens) |
| Camera Quantity | Single Camera |
| HDR | - |
| Viewing Angle | 110°(H) / 60°(V) |
| Lighting Method | White coloured LED lights |
| Audio Compression | G.711 |
| Speaker | 8Ω / 0.5W |
| Microphone | -54 ± 2dB |
| Face Capacity | - |
| Card Capacity | - |
| Frequency | - |
| Wiring | UTP (Cat 5e or higher) |
| Protocol | IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP |
| Network Interface | RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X) |
| Power Out Port | - |
| RS485 | - |
| Relay Output | - |
| Fire Detect Port | - |
| Lock Release | - |
| Door Status Port | - |
| Wiegand Port | - |
| Power Source | PoE (IEEE 802.3af compliant, Class 0 device) or Power supply unit (Sold separately) |
| Operating Voltage | PoE 48V or 12 to 27VDC |
| Current Rating | POE 48V, 55mA or DC 12V, 450mA; DC 27V, 200mA |
| Power Consumption | Standby: 1.0W, Operating: 2.65W |
| Installation Method | Flush mount |
| Colour | Black |
| Dimensions (H x W x D) (Excluding protru | Approx. 150mm x 90mm x 12.5mm |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | Up to 90% (non-condensing) |
| IP rating (Ingress Protection) | IP30 |
| IK rating (Impact Protection) | - |
| Talking Method | Hands-free |
| Display Language | - |
| Motion Detect | - |
| External Material | PMMA + ABS |
| Weight | Without package: 140g With package: 260g |
| Warranty | 12 months |
| Brand | Panasonic |
|---|---|
| Product Type | Security Systems |
| Weight | 1.0 kg |
| Warranty |
|---|
