Panorama Antennas

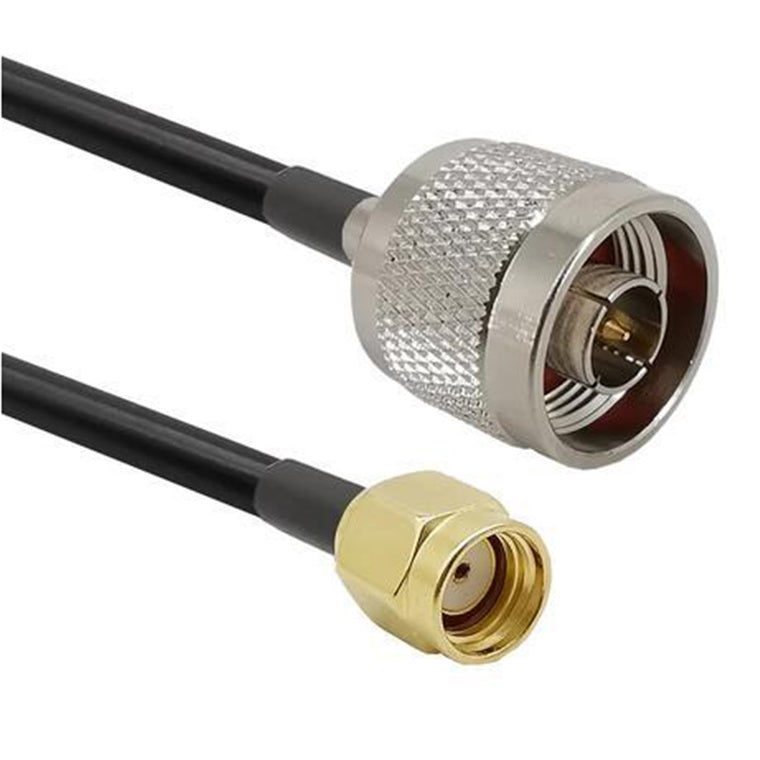

Panorama Antennas C29NP-5SMARV - 5 meter N-Male to RP-SMA-Male CS29 Cable for WiFi Applications
$50.28
Free shipping over $299
Genuine product
7-day returns
Panorama Antennas C29NP-5SMARV - 5 meter N-Male to RP-SMA-Male CS29 Cable for WiFi Applications
Features
5 meter N-Male to RP-SMA-Male CS29 Cable for WiFi Applications
- CS29 cable is a double shielded cable designed for outdoor use and is UV and water resistant.
- Panorama Antennas' CS29 cable offers all the performance and flexibility associated with RG58 but with far less attenuation.
- The CS29 coaxial cable is flexible, bendable and has a low signal loss.
- The CS29 cable is perfect for use in demanding conditions.
Specifications
Technical Specifications
| Brand | Panorama |
|---|---|
| Manufacturer Part Number | C29NP-5SMARV |
| Color | Black |
| Cable Length | 5m |
| Connector A | N Male |
| Connector B | RP-SMA Male |
| Jacket Material | TPE |
| Min. Bend Radius (mm) | 13 |
| Diameter (mm) | 5 |
| Attenuation (dB /10m) @ 400MHz | 2.2 |
| Attenuation (dB /10m) @ 1GHz | 4 |
| Attenuation (dB /10m) @ 2GHz | 5.5 |
| Shield efficiency. to IEC 61196-1 | <-90dB |
