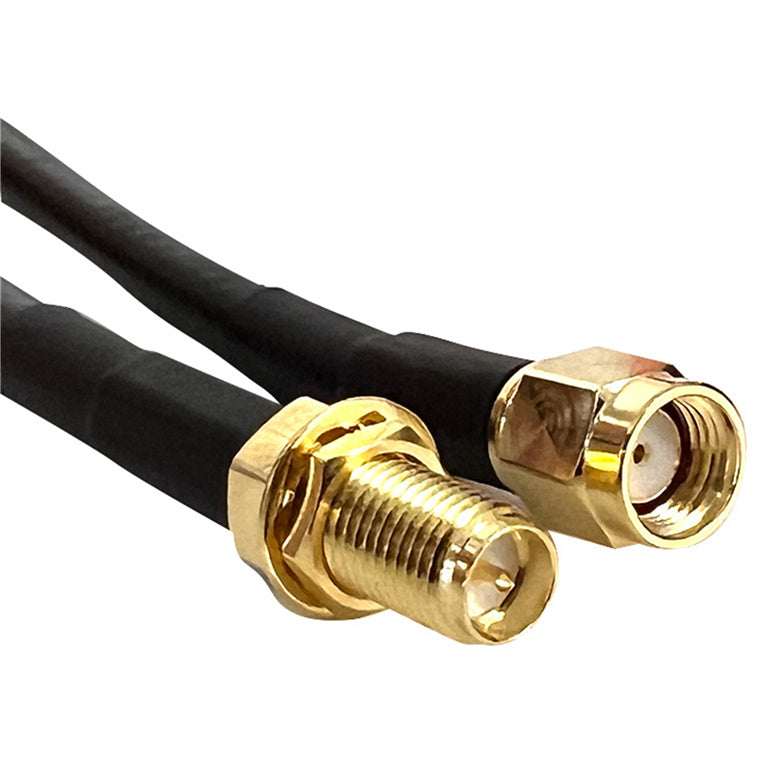

Panorama Antennas C29SMARV-5SMARVJ - 5 meter RP-SMA-Male to RP-SMA-Female CS29 Extension Cable

The Panorama Antennas extension cable is a high-quality 5-meter coaxial cable featuring a RP-SMA male connector on one end and a RP-SMA female connector on the other. Its design makes it ideal for extending the connection range of antennas and radio communications equipment, especially where greater distance or flexibility is required.

Superior Outdoor Performance

One of the standout features of the CS29 cable is its specialized construction for outdoor use. The cable is double shielded, ensuring optimal signal protection from interference, and is resistant to both UV radiation and water. The durable TPE jacket further enhances its environmental resistance, making it highly suitable for demanding installations in challenging conditions.

Low Attenuation and High Flexibility

Compared to traditional RG58 cables, the CS29 offers the same level of performance and flexibility but with significantly lower attenuation rates. This means that signals can travel further with less loss, ensuring clearer and more reliable transmissions. The cable's minimum bend radius of 13mm and 5mm diameter also mean it is flexible and easy to route, even in tight or complex installations.

Technical Features and Data

In terms of specifications, the CS29 performs admirably across key metrics. Its attenuation is rated at just 2.2 dB per 10 meters at 400MHz, 4 dB per 10 meters at 1GHz, and 5.5 dB per 10 meters at 2GHz. Furthermore, the shielding efficiency is exceptionally high, with a rating of less than -90dB according to IEC 61196-1, minimizing signal leakage and maximizing transmission integrity.

Optimal Choice in Challenging Environments

Given its robust construction, low signal loss, and flexibility, the CS29 extension cable from Panorama Antennas is perfect for use in outdoor or industrial settings where standard cables may not endure. Whether used for antenna extension, wireless equipment installation, or other RF applications, it ensures reliable performance even under severe environmental stresses.
