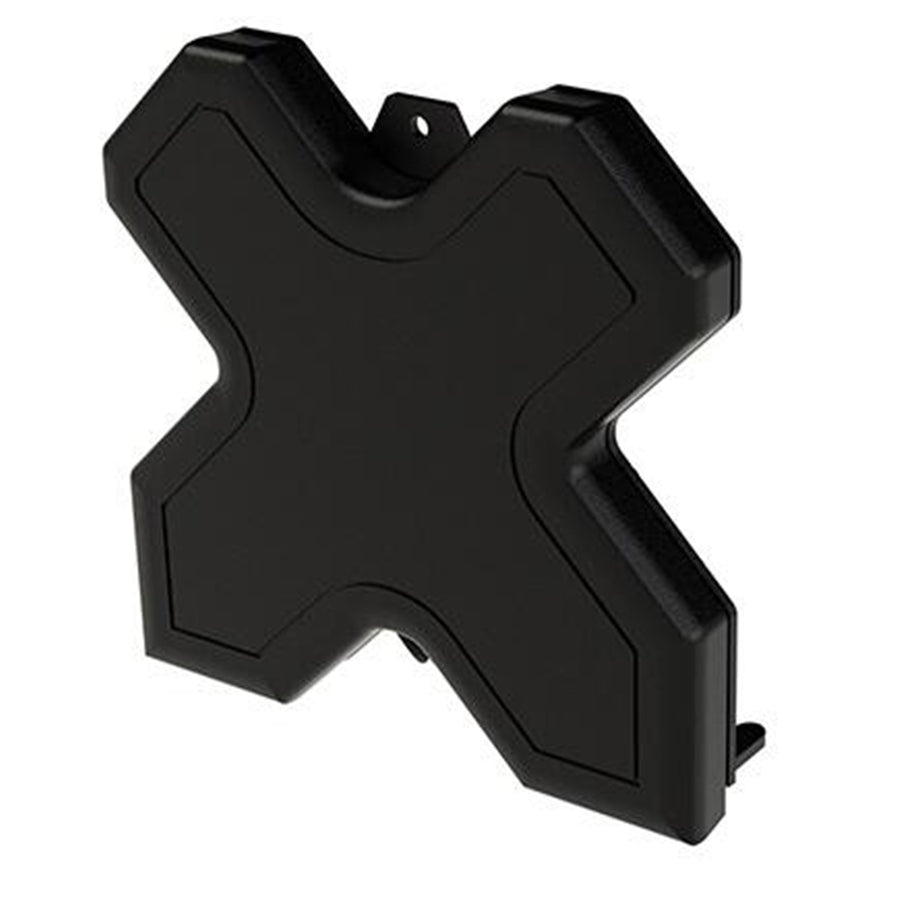

Panorama Antennas DMM4-6-60-2SP - 4G/5G 4x4 MiMo Antenna Desk/Window/Wall Mount

The DMM4 portable antenna is an innovative antenna design which provides 4x4 MiMo function for 4G/5G with fallback to 3G/2G

It is a cost effective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers, thereby improving satisfaction and retention.

This antenna is a future proof solution for Cat 18/20 4G and 5G devices. Incorporating four separately fed, ultra wide band elements for 617-960/1710- 6000MHz in a single housing, the DMM4 provides a 4x4 MiMo function. It can also provide 2x 2x2 MiMo function for a router with dual modems, each requiring a 2x2 antenna system.

The DMM4 is highly portable and features desk mount feet which fold out for use, and flat for transport. A suction window mount enables the user to optimise their signal in multiple locations, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided.

The DMM4-6-60-2SP antenna is supplied with two twinned 2m (6') length coaxial cables, with 4 x SMA connectors.

Product Features

- 4G/5G CAT18/20 LTE ready with fallback to 2G/3G
- Desk, window and wall mountable design
- Lightweight portable plug-and-play solution

Performance Features

- 4G/5G CAT18/20 LTE Ready
- 4x4 MiMo
- Up to 5dBi peak gain
- Multiple mounting options
- Integrated coax with connector terminations

Benefits

- Lightweight and easy to use
- Unique X design for efficient 4x4 MiMo performance
- Cost effective 4G/5G LTE antenna

Applications

- Failover
- Retail & commerce
- Travel
