Panorama Antennas GPS2D4-6-60 - Dual Sharkee 5G Antenna for Mobility Solutions 4x Cellular 2x GPS

Panorama GPS2D4-6-60 Dual Sharkee 5G Antenna for Mobility Solutions 4x Cellular 2x GPS

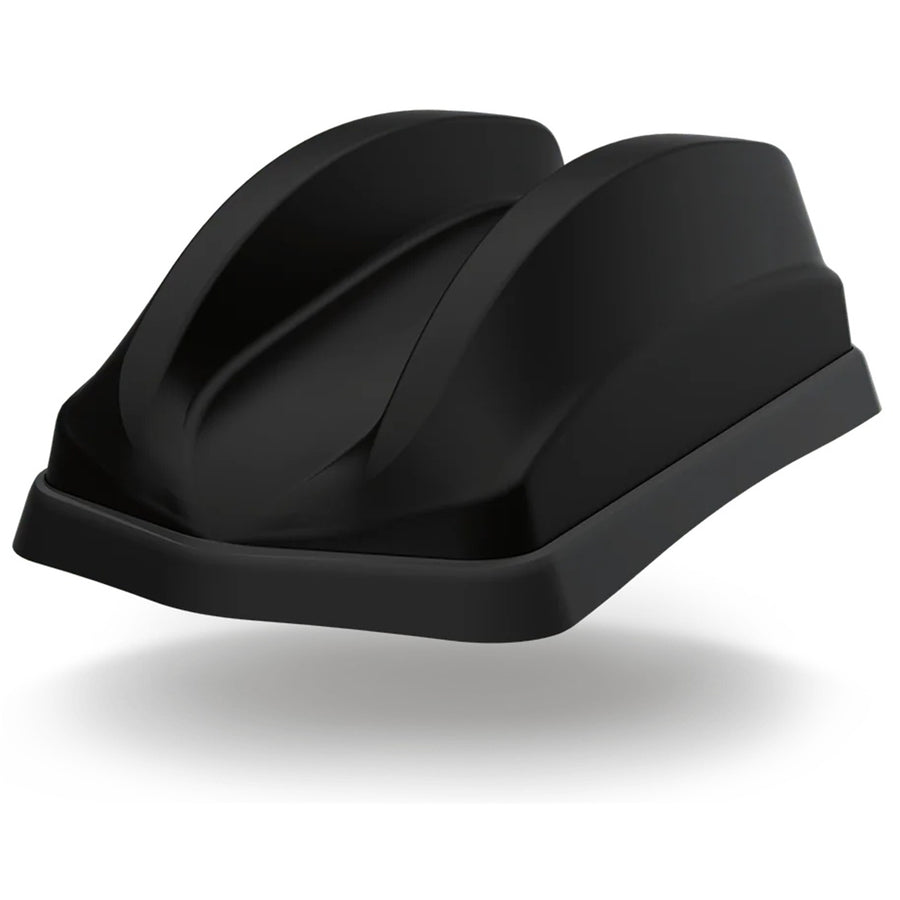

The GPS2D4-6-60 is a 6-in-1 advanced 4G/5G, and GPS/GNSS antenna with a dual sharkfin style housing. The dual fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications, where a cost-effective, efficient and robust antenna is essential.

Configured in a robust shark fin style housing, the ultra-wideband 4x4 MIMO cellular antenna elements cover all 5G LTE spectrum frequencies worldwide (617-960/1427-6000 MHz), including LTE band 71 (617 to 698 MHz). There are two active GPS/GNSS antennas, each with a 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. An integral mounting stud for an external antenna whip is provided, with a blanking cap supplied if this function is not required.

The antenna must be installed on a metal panel when a comms whip is used, otherwise, it may be fitted on a non-metallic panel while still offering similar performance. Requiring only a single hole mounting, the antenna reduces vehicle damage, installation time, and cost and visual impact. The rugged dome is built from heavy-duty plastic for extra durability. It includes a bottom gasket for reliable sealing and conductive pads for superior grounding. The GPS2D4-6-60 is IP69K certified, assuring it withstands water and dust for safe operation outdoors.

- Omnidirectional 5G LTE multi-antenna for mobile operations
- 4x4 MIMO LTE with 617-960 MHZ and 1710-6000 MHz range
- Advanced filtering for LTE Band 13/14 operation and Band 71
- 2x GPS/GNSS with advanced filtering, 1562 to 1612 MHz, and 26 dB gain LNA

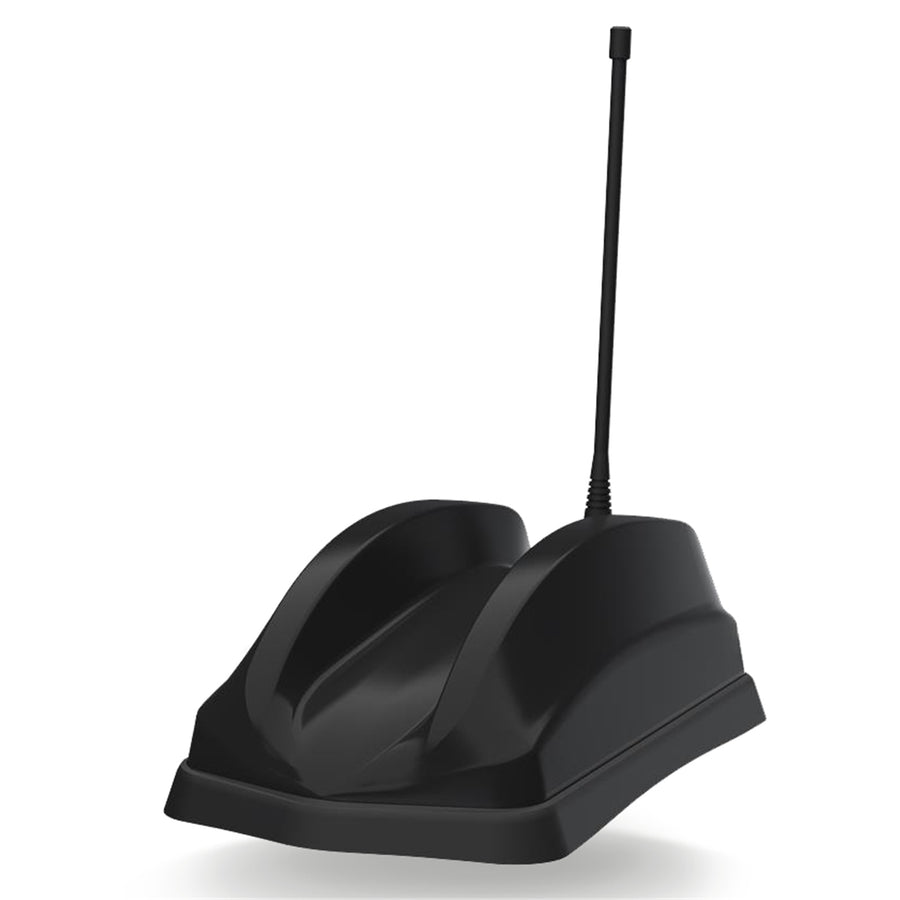

- Integrated mount supports an optional mobile radio whip antenna (7:1 with the radio whip)
- Maximum input power: Internal elements 5 W / main whip 60 W
- Through-hole panel mounting
- 30cm low-loss, flame retardant cables
- IP69K rated dome
