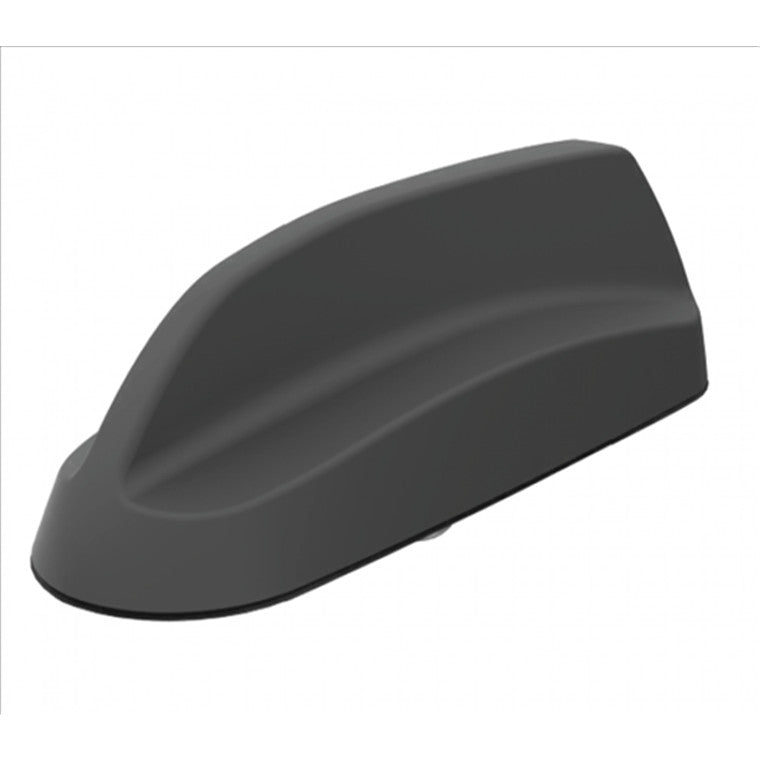

Panorama Antennas GPSD-7-27-24-58 - Shark Fin Vehicle Antenna 2 Cellular (698-2700MHz) 1 GPS 2 WiFi
Panorama Antennas GPSD-7-27-24-58 - Shark Fin Vehicle Antenna 2 Cellular (698-2700MHz) 1 GPS 2 WiFi
Features
A one size fits all, shark fin style solution for MiMo Cellular, MiMo WiFi and GPS applications requiring VHF or UHF capability.
- OEM shark fin styling
- GPS/GNSS, MiMo 2G/3G/4G cellular & optional MiMo 2.4/4.9-6GHz in one housing
- Heavy duty design for optional VHF or UHF whip
The GPSD 'MiMo Sharkee™' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas.
A further version of GPSD is available that adds 2x2 MiMo antenna function for 2.4/5.8GHz WiFi.
The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle's resale value.
Specifications
Technical Specifications
| 2G/3G/4G Frequencies | 698-960/1710-3800MHz |
|---|---|
| Global Positioning | GPS / GNSS 1562-1612 |
| Wifi Frequencies | MiMo - 2.4/5.0GHz - (Optional) |
| 2G/3G/4G MiMo | 2x2 |
| WiFi MiMo | Optional 2x2 |
| Max Input Power (W) | 50 |
| Pattern | Omni-directional |
| Frequency Range (MHz) | 1562-1612 |
| LNA Gain (dB) | 26 |
| Length (mm) | 172 |
| Width (mm) | 61 |
| Height (mm) | 50 |
| Mounting Type | Panel Mount |
| Mounting Method | 18mm (3/4") Mounting Bush |
| Whip Mounting | M6x0.75 |
| IP Rating | IP66 |
| Flame Retardancy | UN118.01 Compliant |
