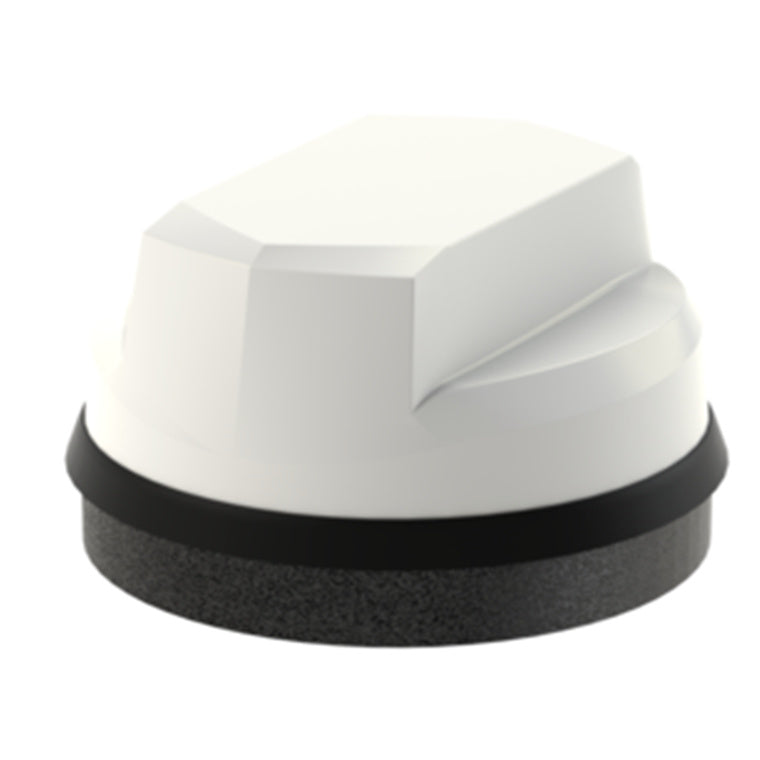

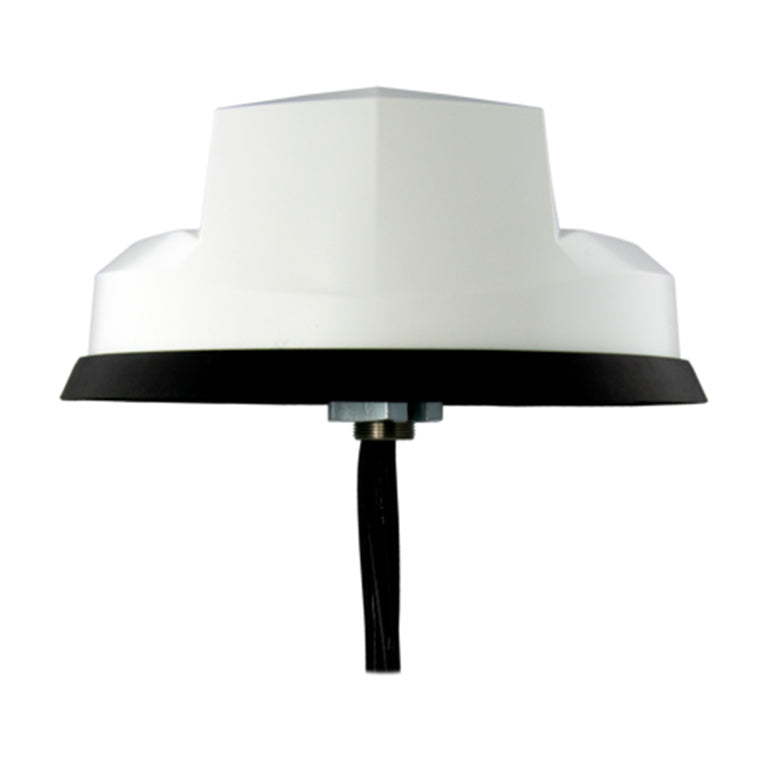

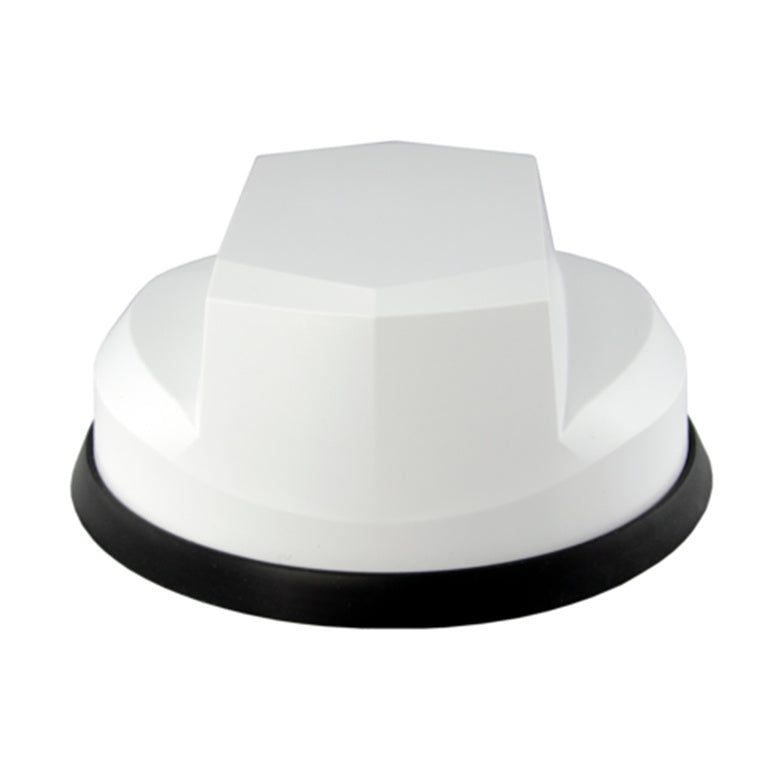

Panorama Antennas LG-IN2456-W-LC - 3-in-1 Dome Antenna 2x2 MiMo 5G LTE GNSS 5m cables

Versatile 3-in-1 Connectivity Solution

The LG-IN2456 Dome Kit is a high-performance 3-in-1 antenna system designed to address modern wireless communication needs. Combining 2x2 MiMo 5G LTE and active GPS/GNSS reception, this device ensures powerful and reliable data connectivity in demanding environments. It operates across an extensive frequency range (617-960/1710-6000MHz) that makes it suitable for advanced networking solutions, including deployment with Cradlepoint and Ericsson routers.

Optimized Design for Performance and Reliability

Constructed in a robust, low-profile enclosure, the LG-IN2456 can deliver consistent 2x2 MiMo 4G/5G performance. Its flexible platform is engineered so the main LTE elements can be efficiently integrated with additional functions, such as GPS and GNSS, without sacrificing reliability. This integration supports real-time global positioning and high-speed cellular connectivity, providing a competitive edge for routers and telematics systems.

Flexible Mounting and Wide Compatibility

This antenna is optimized for panel mounting and can be installed on both conductive and non-conductive surfaces, enhancing installation flexibility. The package comes with integrated RG174 flame-retardant cables, which meet UNECE 118.01 and EN45545-2 safety standards. Additionally, the halogen-free flame-retardant radome further ensures safety and compliance, allowing the antenna to be applied in various industries such as transportation, emergency services, and industrial IoT.

Enhanced Environmental Protection

The white radome of the LG-IN2456 is designed to withstand harsh environmental conditions. It is rated IK10 for vandal resistance-meaning it is extremely durable against mechanical impacts-and meets IP69K standards for protection against dust and powerful water jets. Such protective qualities make this antenna highly suitable for outdoor or exposed installations where resilience to damage and ingress is essential.

Comprehensive Technical Specifications

Electrically, the antenna supports LTE frequencies from 617-960/1710-6000MHz, GPS/GNSS bands at 1562-1612MHz, with a peak gain of 9 dBi and 2x2 MiMo LTE capabilities. Its omnidirectional pattern ensures signal consistency regardless of orientation, while being ground plane independent aids versatility. Mechanically, the product is available in white, stands 80mm high with a diameter of 180mm, and operates between -40°C and +85°C. It is mountable using an 18mm (3/4") mounting bush, catering to a range of installation preferences.
