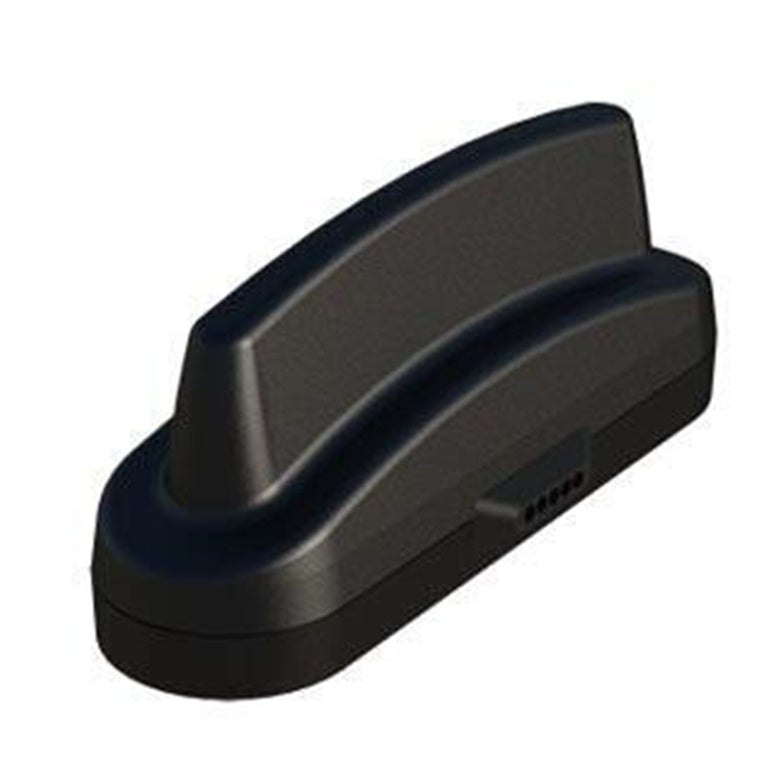

Panorama Antennas LGAM-BC3G-26-1SP - 3-in-1 2x2 MiMo 4G LTE + GNSS Panel Mount Antenna with 1m cable SMA set
Panorama Antennas LGAM-BC3G-26-1SP - 3-in-1 2x2 MiMo 4G LTE + GNSS Panel Mount Antenna with 1m cable SMA set
Features
3-in-1 2x2 MiMo 4G LTE + GNSS Panel Mount Antenna w/ 3m cable SMA
Compatible with Cradlepoint IBR200 / IBR600 / IBR900 series routers
The LP[G]AM-BC3G-26 range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.
The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTEbands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications which require position or timing function.
The antenna can be fitted on a non- conductive panel if required* and offers easy, quick, secure and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 3m (10') cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
Specifications
Technical Specifications
| LTE Frequencies | 698-960/1710-3800MHz |
|---|---|
| Global Positioning | GPS / GNSS 1562-1612 |
| LTE MiMo | 2x2 |
| Max Input Power (W) | 20 |
| Pattern | Omni-directional |
| Ground Plane Independent | Yes |
| Frequency Range (MHz) | 1562-1612 |
| LNA Gain (dB) | 26dB |
| Available Colours | Black |
| Length (mm) | 150 |
| Width (mm) | 45 |
| Height (mm) | 49 |
| Operating Temperature | -30 / + 70°C |
| Mounting Type | Panel Mount |
| Mounting Method | 18mm (3/4") Mounting Bush |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Panorama Antennas |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
