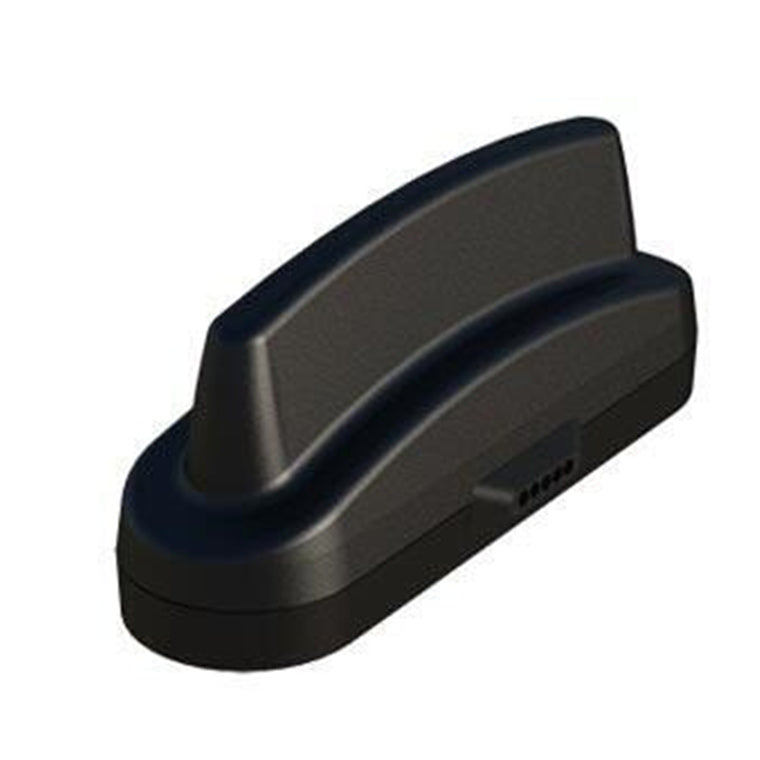

Panorama Antennas LGAMM-BC3G-26-3SP - 3-in-1 2x2 MiMo 4G LTE + GNSS Panel Mount Antenna with 3m cable SMA set Magnetic Mount

The Panorama Antennas LGAMM-BC3G-26-3SP is a versatile and robust 3-in-1 antenna solution, combining 2x2 MiMo 4G LTE and GNSS functionality within a single compact package. Designed to meet the demanding requirements of IoT and M2M applications, it is particularly suitable for integration with Cradlepoint IBR200, IBR600, and IBR900 series routers, ensuring reliable connectivity and advanced location services.

Advanced Design and Capabilities

This antenna incorporates two isolated MiMo elements to support global cellular and LTE bands across the 698-960MHz and 1710-3800MHz ranges. The LG version further includes an active GPS/GNSS/Galileo/Beidou module, catering to scenarios that demand geolocation or precise timing. The use of effective isolation and correlation between antenna elements enhances signal integrity and overall performance, regardless of the deployed region.

Flexible Installation Options

One of the key benefits of this model is its flexible mounting system. The antenna's weatherproof, low-profile housing is designed for both conductive and non-conductive panel installations. It comes equipped with a magnetic mounting bush and an acrylic adhesive sealing pad, allowing for straightforward, secure, and weather-resistant deployment. This ensures reliable operation in a wide array of environments and surface types.

Plug-and-Play Connectivity

For ease of setup and integration, the LGAMM-BC3G-26-3SP is supplied with integrated 3-meter cables and SMA plug connectors. This facilitates seamless plug-and-play connectivity with a variety of network terminals and devices, minimizing installation time and technical complexity for the user.

Technical Specifications

From an electrical standpoint, the antenna supports a maximum input power of 20W and provides an omnidirectional radiation pattern, independent of the ground plane. The GNSS module offers a frequency range of 1562-1612MHz and achieves a low-noise amplifier (LNA) gain of 26dB, ensuring accurate and consistent positioning. Mechanically, the antenna measures 150mm in length, 45mm in width, and 61mm in height, with black as the available color. It is designed to withstand operating temperatures from -30°C to +70°C, making it a reliable choice for both indoor and outdoor deployments.
