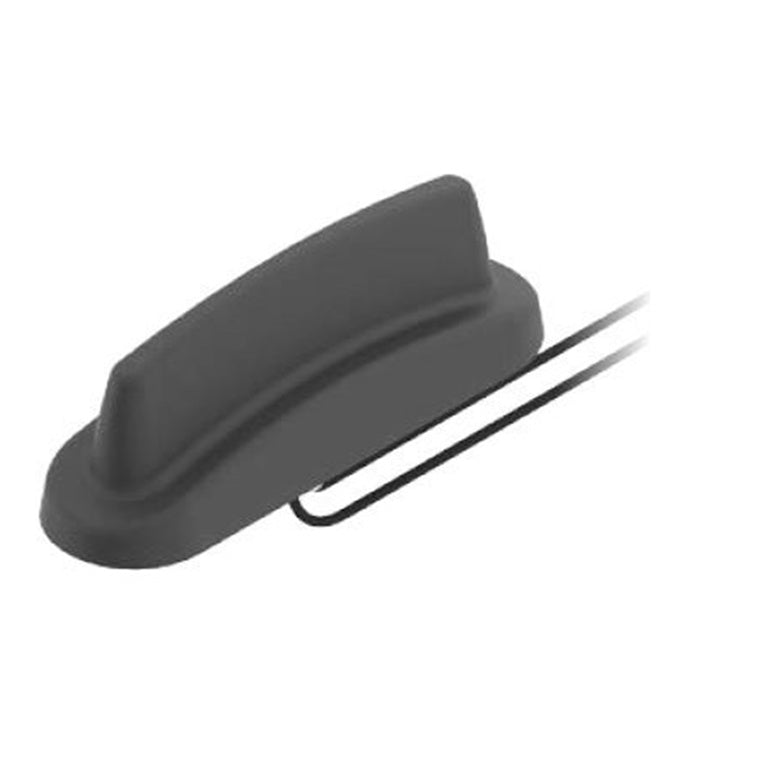

Panorama Antennas LPAM-BC3G-26-1SP - 2-in-1 4G LTE and GPS Panel Mount Antenna 1m cable SMA

Compatible with a wide range of cellular routers including Cradlepoint IBR200 / IBR600 / IBR900 series.

The LPAM-BC3G-26 range has been designed to provide MiMo Cellular / LTE antenna functions for IOT and M2M applications.

This version comes with 1m of cable

The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz.

The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure, and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 1m (3.3') cable and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.

Product Features

- Compact low profile MiMo LTE antenna
- High performance in a distinctive design
- Optional GNSS version available

Performance Features

- Covers all 2G/3G/4G/5G LTE cellular bands
- Weatherproof design
- Single hole mount with a small footprint

Benefits

- Provides MiMo LTE capability in a compact antenna
- Easy to install with integrated cables
- Can perform on or off a conductive surface

Application

- Static M2M & IoT devices
- Remote monitoring, smart metering
- Vending machines
