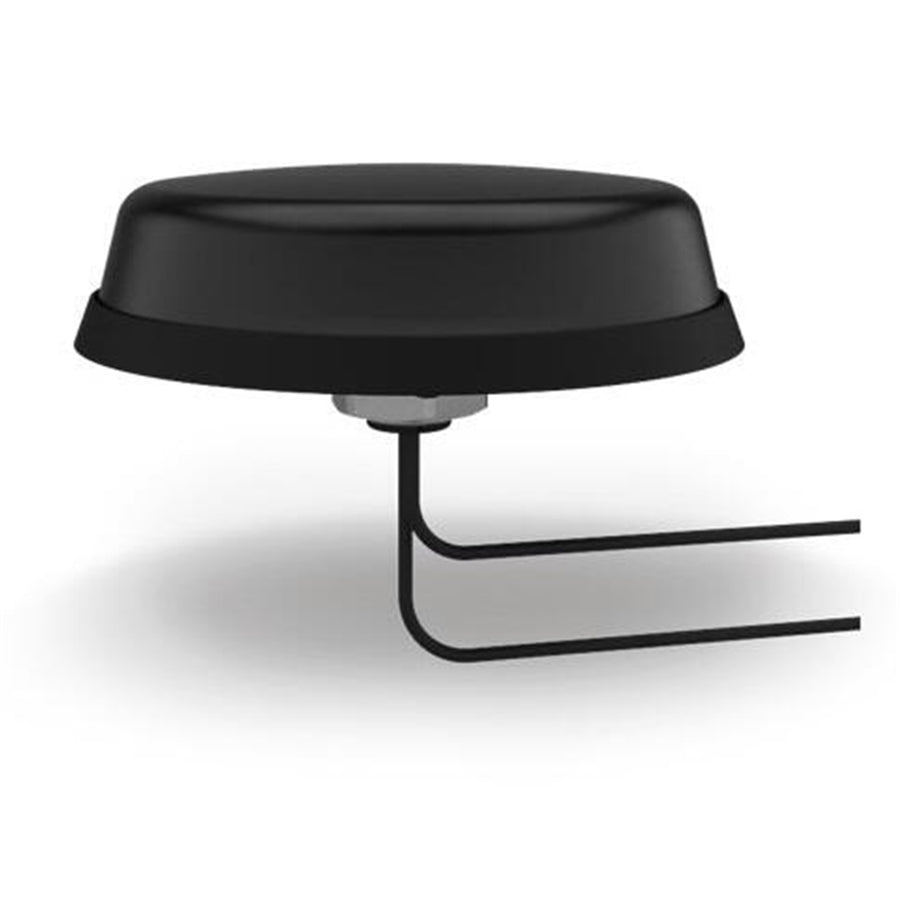

Panorama Antennas LPM2-7-27-2SP - Ultra Low Profile 2x2 MiMo 4G LTE Omni Antenna IK10 IP69K 2x SMA
Panorama Antennas LPM2-7-27-2SP - Ultra Low Profile 2x2 MiMo 4G LTE Omni Antenna IK10 IP69K 2x SMA
Features
The LPM2-7-27-[X] range has been designed to promote MiMo 4G/LTE coverage in an ultra-low profile package. The compact and robust housing is weatherproof and contains two antenna elements with effective isolation and low correlation coefficient covering 698-960/1427-27000MHz frequency bands.
The antenna is designed to be panel mounted. Supplied with integrated flame retardant RG174 (compliant to UN ECE 118.03) cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different routers and modems.
The antenna is supplied in black flame retardant LEXAN EXL9330 plastic as standard.
- Low Visual Impact
- 4x4 MiMo 4G/5G
- Frequency 698-960/1427-27000MHz
- 7dBi Directional Peak Gain
- Wall or Mast Mount
- 2x 2m cable with SMA male for connection to 4G routers
Specifications
Technical Specifications
| Pattern | Omnidirectional |
|---|---|
| Max Input Power(W) | 5 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | 698 - 960MHz | 2dBi; 1427 - 2700MHz | 5dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | No |
| UHF Elements | No |
| Number of GPS Elements | No |
| Colour | Black |
| Height | 32 (mm) | 1.26 (in) |
| Diameter | 123 (mm) | 4.84 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| Cable Length - LTE | 2 (m) | 6.56 (ft) |
| Cable Type (LTE) | FR RG174 |
| Connector (LTE) | SMA (m) |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| IP Rating | IK10; IP69K |
| Technology | 4G/5G; 2G/3G; 2G/3G/4G |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Panorama Antennas |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
