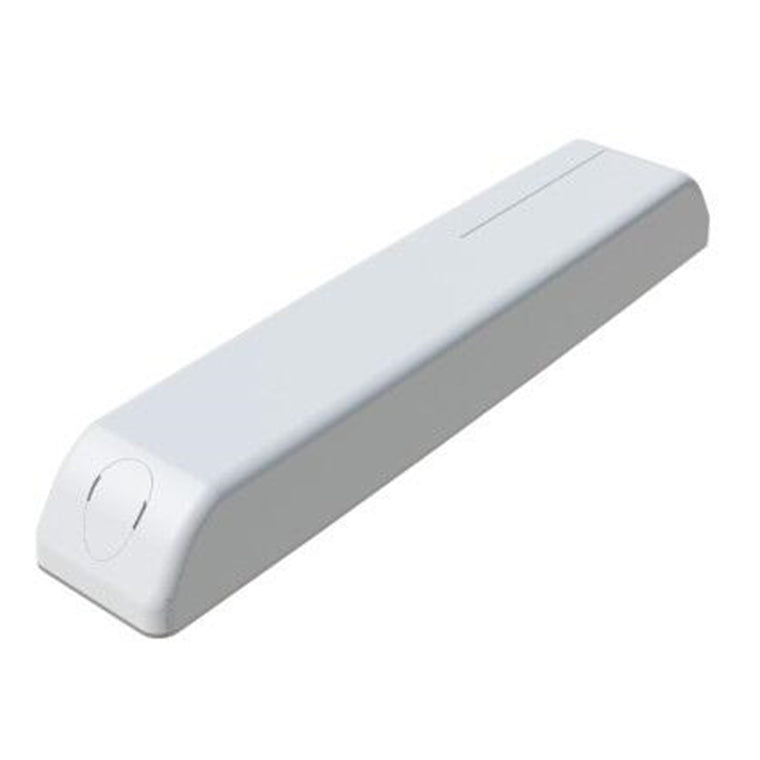

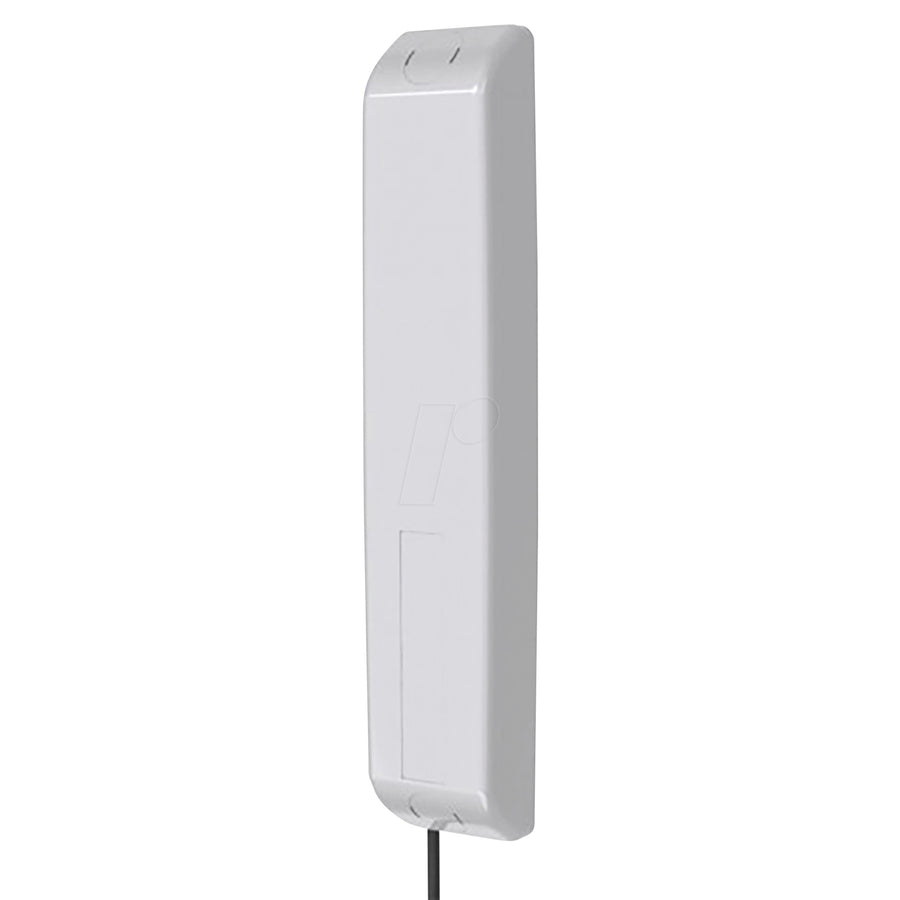

Panorama Antennas LPW-BC3G-26-2SP - 4G LTE Low Profile Wall Mount Smart Antenna 2m cable SMA

SKU: LPW-BC3G-26-2SP ● In Stock

$48.21

Free shipping over $299 Genuine product 7-day returns

Panorama Antennas LPW-BC3G-26-2SP - 4G LTE Low Profile Wall Mount Smart Antenna 2m cable SMA

Features

4G LTE Low Profile Wall Mount Antenna w/ 2m cable SMA

Compatible with a wide range of cellular routers, including Cradlepoint IBR200 / IBR600 / IBR900 series.

The Panorama LPW range of antennas are designed to decrease the lifetime cost of M2M installations by offering a robust, effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.

This antenna offers ground-plane independent omni-directional performance across global cellular and LTE bands making it a versatile solution for any number of applications. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in problematic coverage areas.

It can be installed using the supplied automotive grade adhesive pad or via the integrated screw mounting bosses. If the antenna is panel mounted the cable can be routed through a hole in the adhesive pad to run invisibly into the panel behind.

*Performance may change based on mounting surface.

Specifications

Technical Specifications

LTE Frequencies	698-960/1710-2700MHz
Typical VSWR	<2:1
Peak Gain (dBi)	2
Max Input Power (W)	20
Pattern	Omni-directional
Ground Plane Independent	Yes
Available Colours	Grey
Length (mm)	165
Width (mm)	32
Height (mm)	19.6
Operating Temperature	-30 / + 70°C
Mounting Type	Wall Mount; Panel Mount; Adhesive Mount
Mounting Method	Screw Mount; Adhesive Pad
