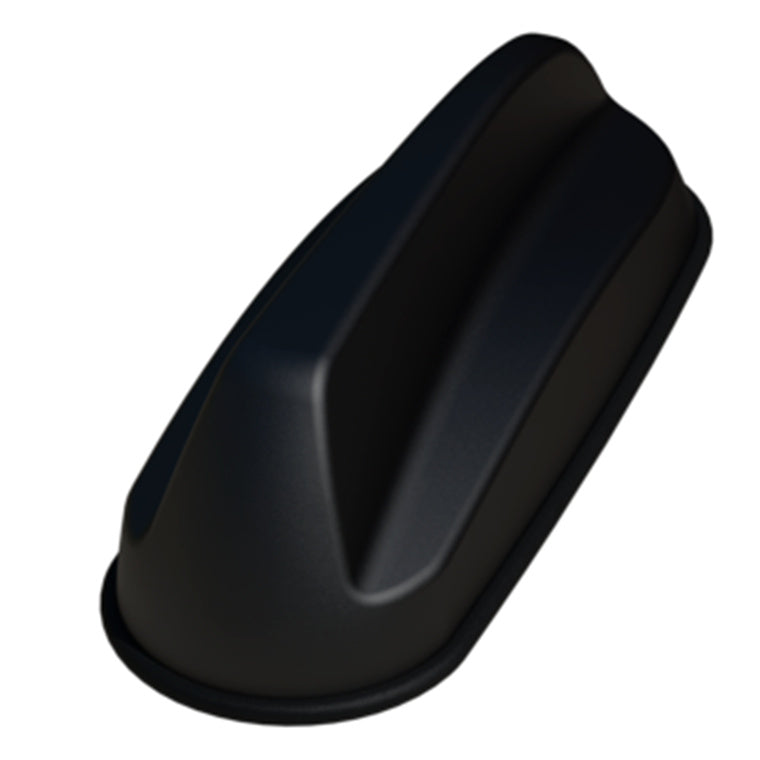

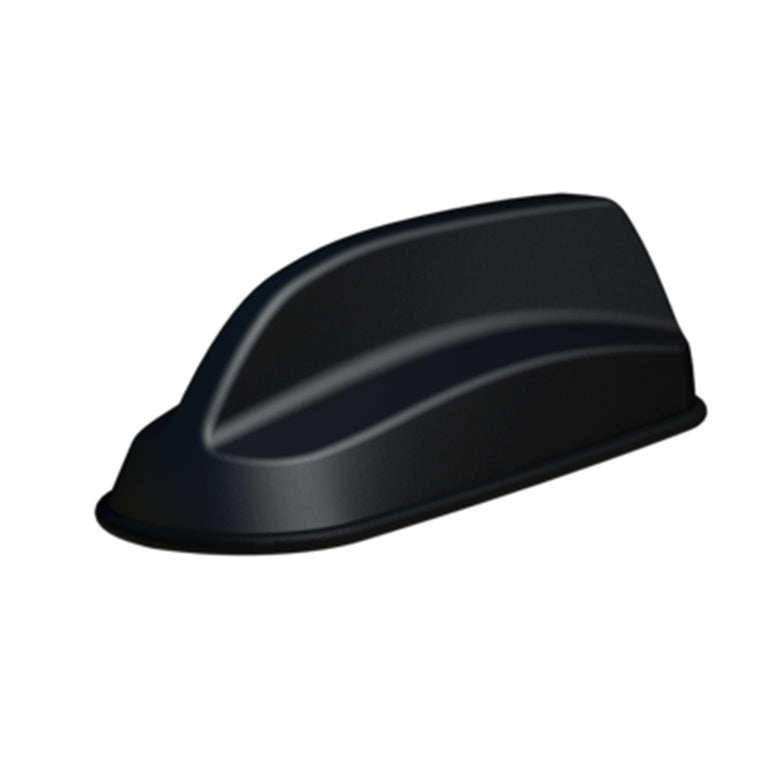

Panorama Antennas SH-IN2441-LC - 3-in-1 2x2 MiMo 4G LTE + GNSS SharkFin Kit with 5m cables SMA(m)

Versatile Application Design

The SH-IN2441-LC by Panorama Antennas is a highly adaptable 3-in-1 SharkFin antenna system designed for modern connectivity requirements. Its unique, compact SharkFin design ensures compatibility with a diverse range of applications, making it suitable for both overt and covert public safety operations, as well as industrial and transport sectors. This universal solution combines aesthetic style with advanced technology, and its streamlined form minimizes visual impact on the installation surface.

Advanced Multi-band Connectivity

Packed inside its discrete SharkFin housing, the SH-IN2441-LC integrates a 2x2 MiMo antenna, which is engineered for 4G, 3G, 2G, and also supports 3.8GHz 5G LTE networks. The unit further includes an active antenna for satellite positioning systems, supporting GPS, GLONASS, Galileo, and Beidou with a low-noise amplifier (LNA) providing a robust 26dB gain. Additionally, the antenna accommodates an external whip through a stud mount, allowing supplementary VHF, UHF, or 700/800MHz band extensions, significantly enhancing its versatility for different field requirements.

Efficient and Protective Installation

Installation efficiency is a key feature of the SH-IN2441-LC. It is engineered for panel mounting, requiring only a single hole, drastically reducing the potential for vehicle damage, installation time, costs, and visual disturbance. This feature also ensures that vehicle resale value remains protected, which is an important consideration in fleet and commercial vehicle management. The set includes three extension cables-two 5m low-loss, double-shielded cables for cellular/LTE and one 5m CS23 cable for GPS/GNSS, all terminating with SMA plugs for reliable, interference-free signal transmission.

Robust Electrical and Mechanical Specifications

The antenna operates across a broad LTE frequency range (698-960/1710-3800MHz), with global positioning functionality in the 1562-1612MHz band. It accommodates optional MiMo WiFi at 2.4/5.0GHz and handles up to 50W input power across an omnidirectional pattern, supporting demanding wireless network environments. Structurally, it boasts an IP66 rating for weather resistance and meets UN118.01 flame retardancy standards, ensuring longevity in harsh operational climates. The unit is available in black, measuring 172mm in length, 61mm in width, and 50mm in height.

Comprehensive Compatibility and Usage

The SH-IN2441-LC is especially compatible with Cradlepoint IBR900/IBR1700 series routers, making it a preferred choice for enterprise, emergency, and mobile applications where stable, high-performance cellular and GNSS connections are critical. Its comprehensive feature set means users can deploy it with confidence in mixed environments, where reliable communication and positioning data are essential for mission success and operational efficiency.
