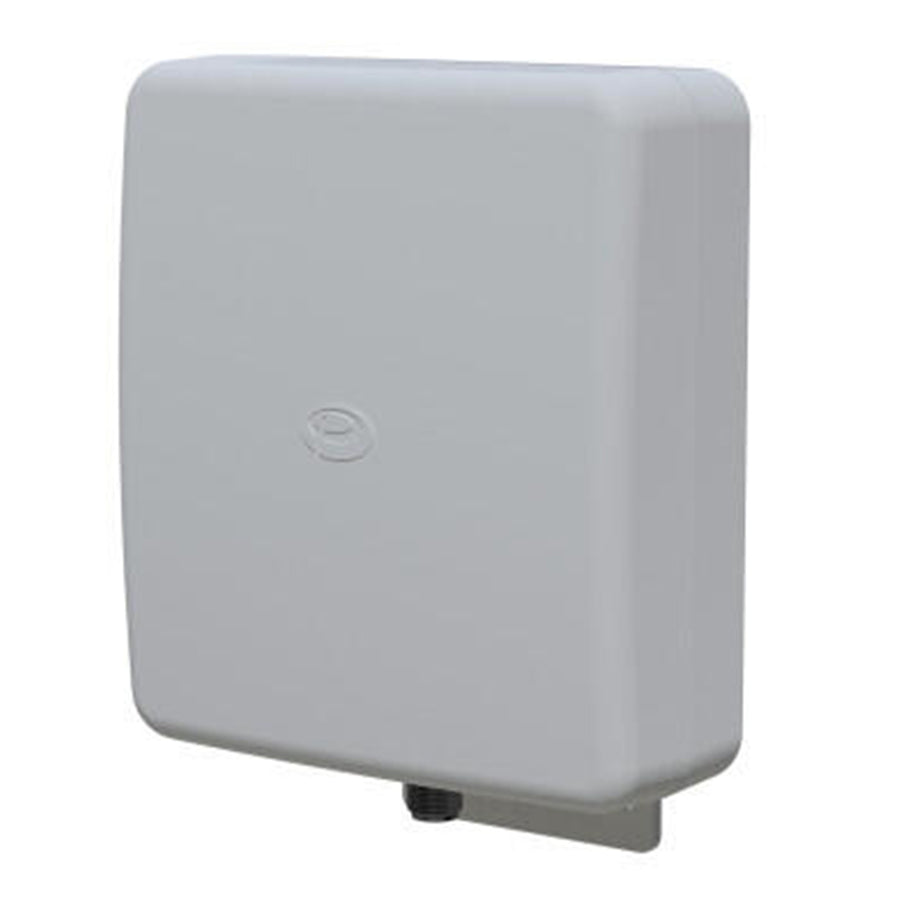

Panorama Antennas WM8-BADEP3G-26-NJ - High-Gain Indoor/Outdoor Directional Panel Antenna for 3G/4G
Panorama Antennas WM8-BADEP3G-26-NJ - High-Gain Indoor/Outdoor Directional Panel Antenna for 3G/4G
Features
A versatile high gain directional antenna ideal for indoor and outdoor deployment, Panorama's WM8 range allows businesses and facilities to support multiservice/multi-operator wireless coverage.
This product features Panorama Antennas' PIM Guard Technology and will meet or exceed a third-order intermodulation level of < -150dBc (2 x 20Watt carrier)
The WM8-BADEP3G-NJ supports 2G, 3G, 3G+, and 4G technologies including LTE, AMPS, PCS, GSM, UMTS, and AWS. The WM8 range is housed in impact-resistant, UV stabilised, and flame retardant plastic. The antenna is sealed to be weatherproof and features a heavy-duty N female connector making it ideal for indoor and outdoor deployment, including InBuilding coverage or network infill applications.
- SiSo Wideband Cellular LTE Antenna
- High dB Gain Directional Product
- SAR Approved & Low PIM
Performance Features
- Covers Wideband 700-2700MHz for 2G/3G/4G LTE
- 6-8dBi Gain Directional Fixed Site Antenna
- UV Stable IP66 Rated Housing
Benefits
- Ideal Product for Fringe Network Areas
- Easy to Install Outdoor Panel Antenna
- Integrate your Wireless Services Into a Single Antenna
Application
- Rural Broadband
- DAS
- Network Infill
Specifications
Technical Specifications
| MPN | WM8-BADEP3G-26-NJ |
|---|---|
| LTE Frequencies | 698-960/1710-2700MHz |
| Typical VSWR | <2:1 |
| Peak Gain (dBi) | 9 |
| Max Input Power (W) | 50 |
| PIM | 3rd order 2x 20W (dBc) -140 |
| Pattern | Directional |
| Length (mm) | 94 |
| Width (mm) | 180 |
| Height (mm) | 230 |
| Operating Temperature | -30 / +70Β° C |
| Mounting Type | Wall Mount; Mast Mount |
| Mounting Method | Wall Bracket; Mast Clamp; U Bolt; Screw Mount |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Panorama Antennas |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 0.5 kg |
