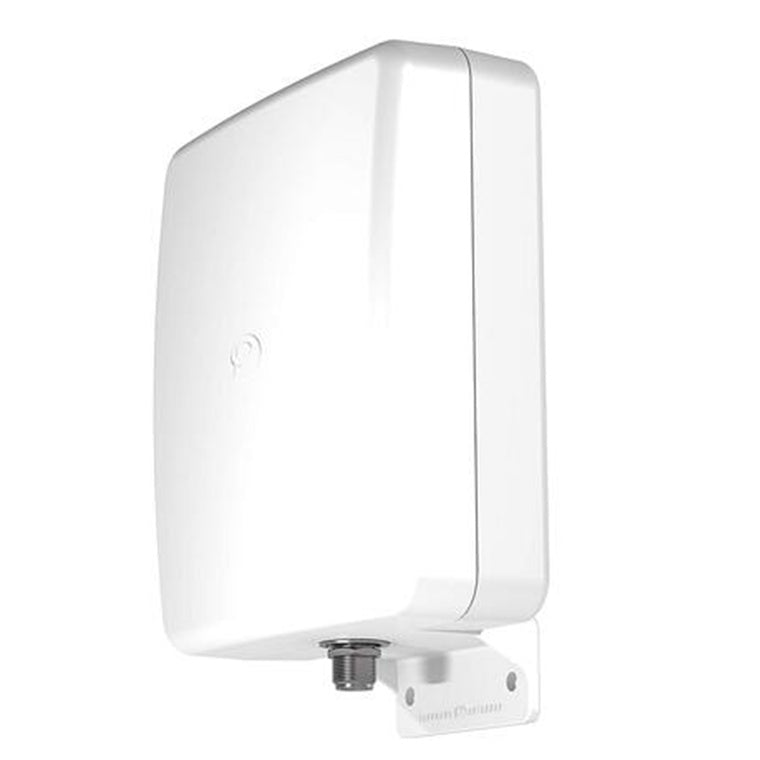

Panorama Antennas WM8E-BADEP3G-26-NJ - Wideband High-Gain Wall/Pole Mount Directional Panel Antenna for 3G/4G
Panorama Antennas WM8E-BADEP3G-26-NJ - Wideband High-Gain Wall/Pole Mount Directional Panel Antenna for 3G/4G
Features
A versatile high gain directional antenna ideal for indoor and outdoor deployment, Panorama's WM8E range allows businesses and facilities to support multiservice/multi-operator wireless coverage.
The WM8-BADEP3G-NJ supports 2G, 3G, 3G+, and 4G technologies including LTE, AMPS, PCS, GSM, UMTS, and AWS.
The WM8 range is housed in impact-resistant, UV stabilised plastic. The antenna is sealed to be weatherproof and features a heavy-duty N female connector making it ideal for indoor and outdoor deployment, including InBuilding coverage or network infill applications.
- SiSo Wideband Cellular LTE Antenna
- Directional High dB Gain
- SAR Approved
- Covers Wideband 700-2700MHz for 2G/3G/4G LTE
- 6-8dBi Gain Directional Fixed Site Antenna
- UV Stable IP66 Rated Housing
Technical Specification
Specifications
Technical Specifications
| LTE Frequencies | 698-960/1710-2700MHz |
|---|---|
| Typical VSWR | <2:1 |
| Peak Gain (dBi) | 9 |
| Max Input Power (W) | 50 |
| Pattern | Directional |

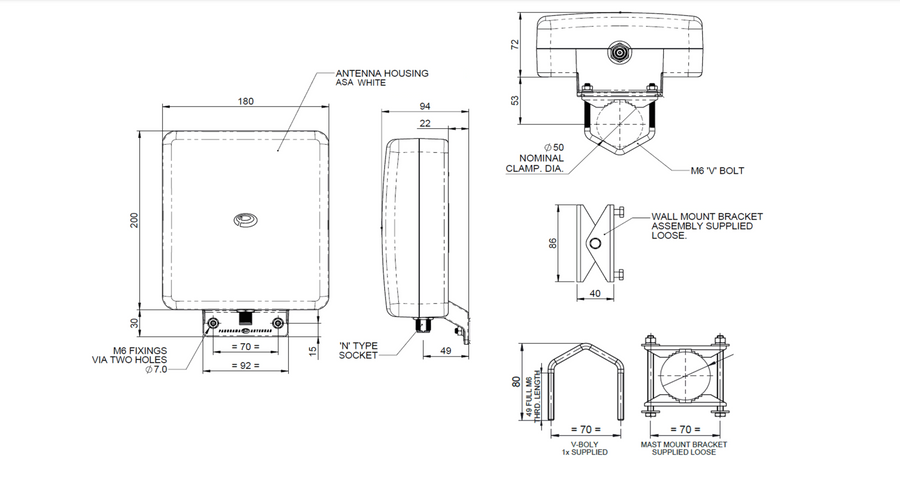

| Length (mm) | 94 |
| Width (mm) | 180 |
| Height (mm) | 230 |
| Operating Temperature | -30 / +70Β° C |
| Mounting Type | Wall Mount; Mast Mount |
| Mounting Method | Wall Bracket; Mast Clamp; U Bolt; Screw Mount |
| IP Rating | IP66 |
