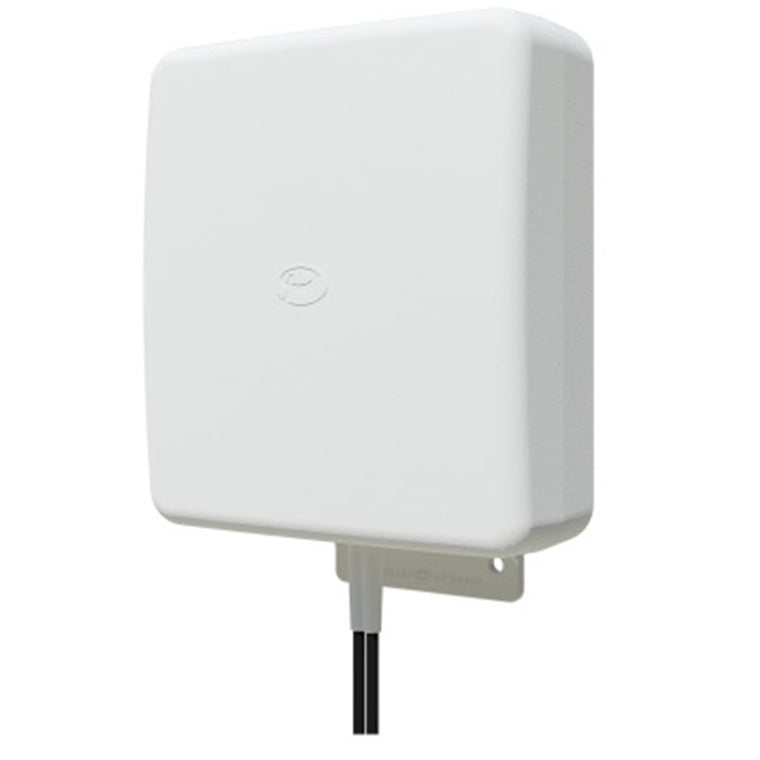

Panorama Antennas WMM8G-7-38-5SP - Outdoor Directional Wideband Antenna 2G/3G/4G/5G 2x SMA on 5m cable
Panorama Antennas WMM8G-7-38-5SP - Outdoor Directional Wideband Antenna 2G/3G/4G/5G 2x SMA on 5m cable
Features
WMM8G-7-38 | MiMo Directional Antenna
The WMM8G-7-38 antenna is a high gain directional 2x2 MIMO signal boosting antenna for 4G and some 5G networks. Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client side MIMO and diversity support for 4G and some 5G networks. The rugged, weatherproof housing is designed for wall mounting.
- Supports 2x2 MiMo 2G/3G/4G and some 5G networks
- High Directional gain 6-8dBi
- Wall Mount or Mast Mount
Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation.
The WMM8G-7-38-5SP and WMM8G-7-38-03NJ are upgraded versions of the popular WMM8G-7-27-5SP and WMM8G-7-27-03NJ antennas covering the new 3.4-3.8GHz frequency bands.
Specifications
Technical Specifications
| LTE Frequencies | 698-960/1710-3800MHz |
|---|---|
| Typical VSWR | <2:1 |
| Peak Gain (dBi) | 9 |
| LTE MiMo | 2x2 |
| Max Input Power (W) | 50 |
| Pattern | Directional |
| Available Colours | White |
| Length (mm) | 94 |
| Width (mm) | 180 |
| Height (mm) | 230 |
| Operating Temperature | -30 / +70° C |
| Mounting Type | Wall Mount; Mast Mount |
| Mounting Method | Wall Bracket; Mast Clamp; U Bolt; Screw Mount |
| IP Rating | IP65 |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Panorama Antennas |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
