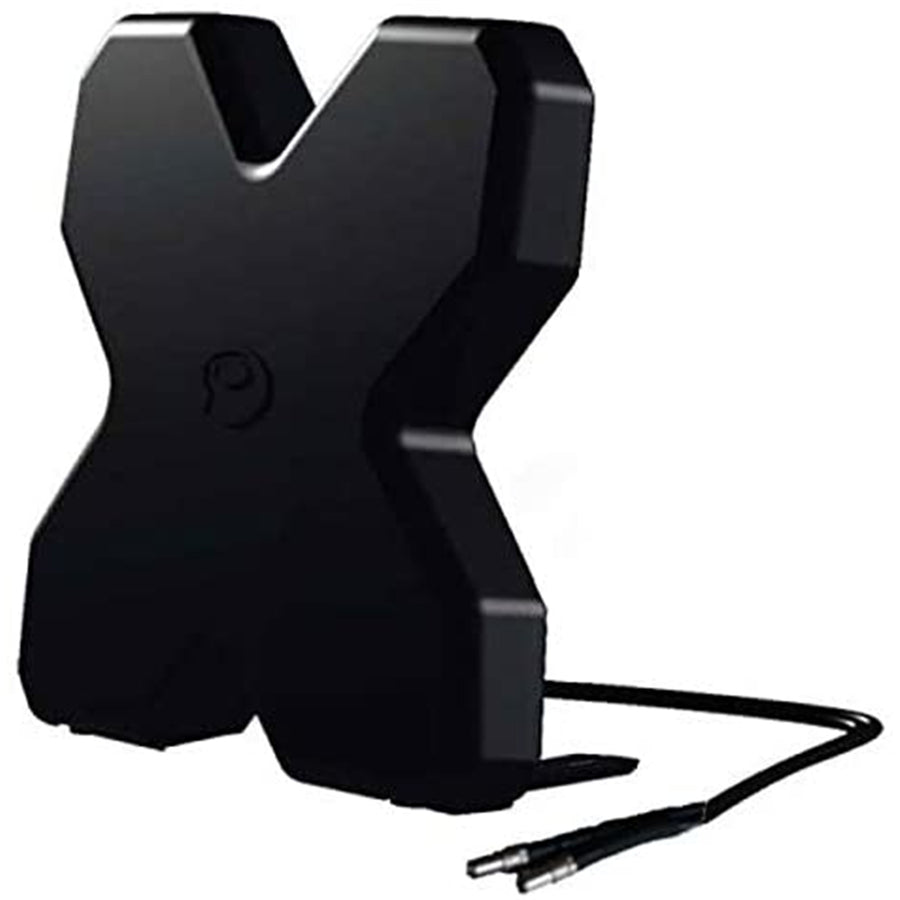

Panorama DMM-7-38-2TS9 4G/5G LTE Portable Indoor MiMo Antenna, 2 x TS9 Male, Omni-Directional, 2.5-5dBi 5G/4G/3G/2G, 698-3800MHz
Features
DMM-7-38-2TS9 | 4G/5G MiMo Desk Mount Antenna
The DMM-7-38-2TS9 is ideal for the One NZ USB Connect 4G to ensure a strong 4G or 3.6GHz 5G connection and fast transfer speeds for your modem or router. It's unique 'X' design enables MiMo connectivity across a huge frequency range and with the options of desk or window mounting the antenna is ideal for use on the move.
- Ideal for One NZ USB Connect 4G
- Supports 2x2 MiMo 4G and 3.6GHz 5G
- Desk, Window or Laptop Mount

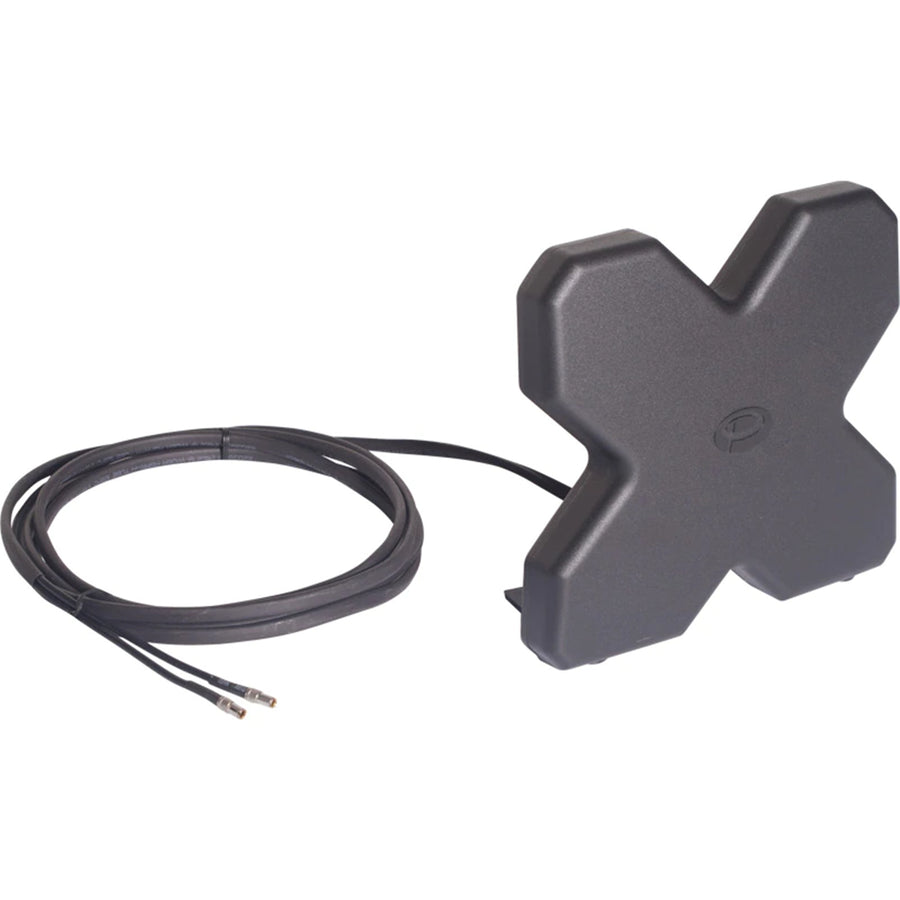

- 2m cables with TS9 plugs

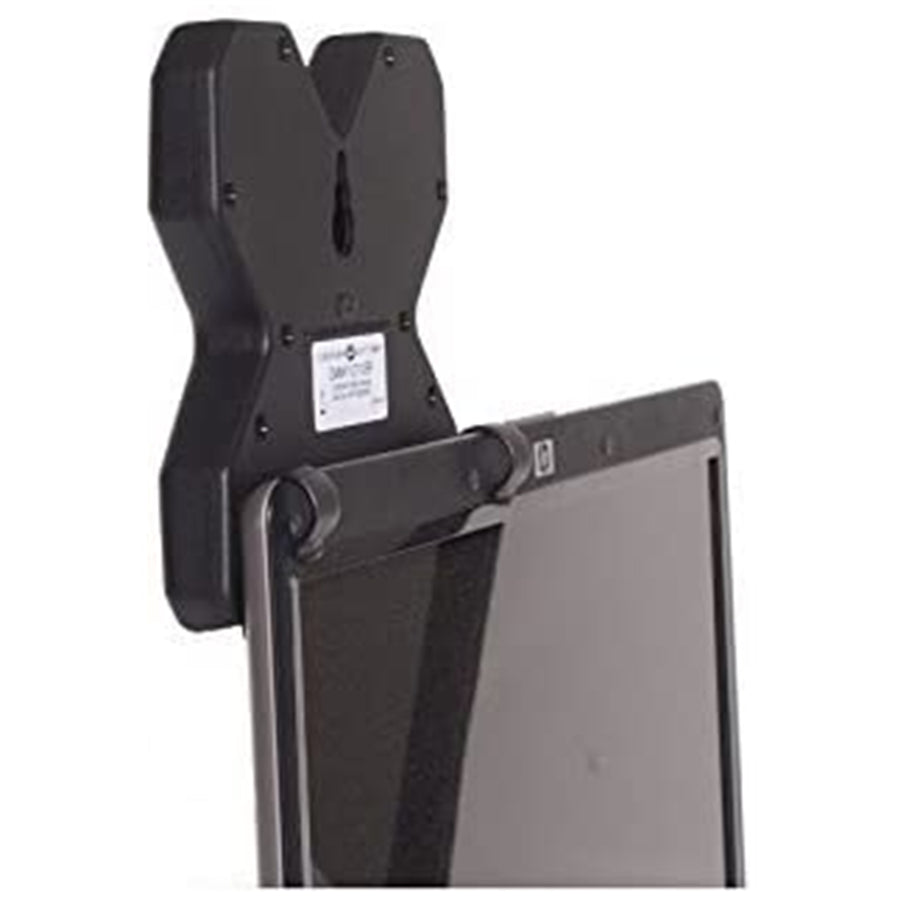

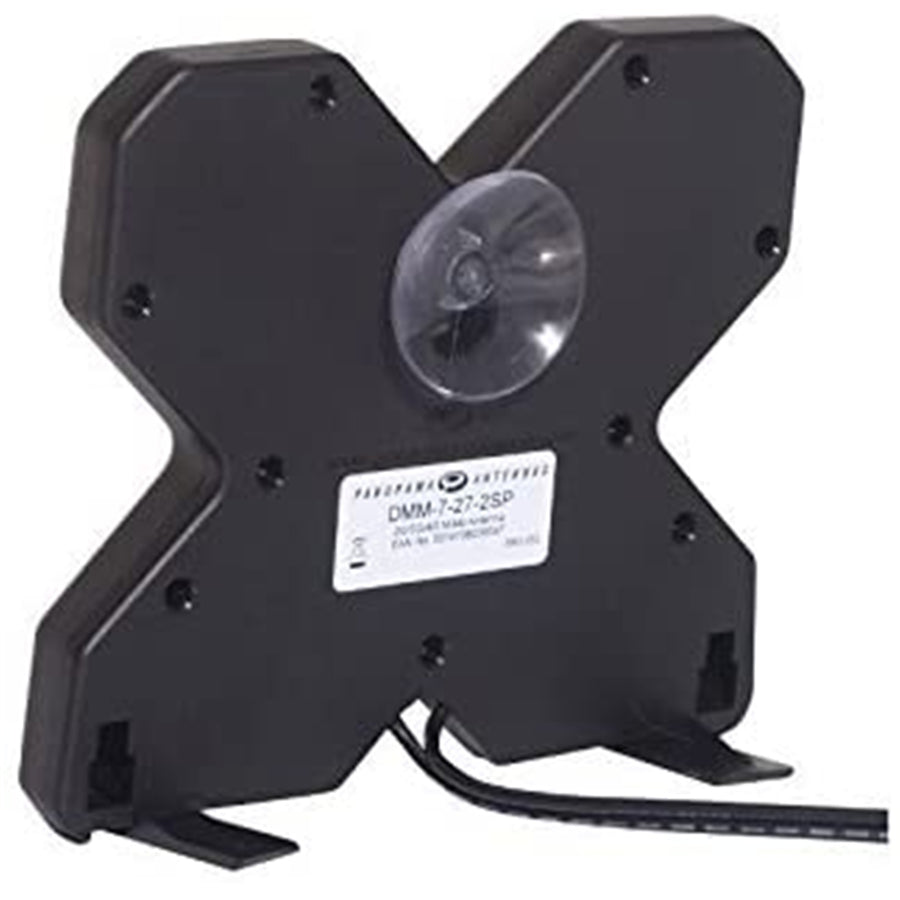

This multiband portable antenna is designed to be compact and easy to use. It has feet which allow it to be used freestanding, a suction cup for window mounting, and clips for attachment to a laptop. The is a versatile and compact travel companion to ensure you have excellent signal in all situations.
Specifications
Technical Specifications
| LTE Frequencies | 698-960/1710-3800MHz |
|---|---|
| Typical VSWR | <2.5:1 |
| Peak Gain (dBi) | 4 |
| LTE MiMo | 2x2 |
| Max Input Power (W) | 20 |
| Pattern | Hybrid |
| Ground Plane Independent | Yes |
| Available Colours | Black |
| Length (mm) | 151 |
| Height (mm) | 137 |
| Operating Temperature | -30 / +70° C |
| Mounting Type | Desk Mount; Window Mount; Laptop Mount |
| Brand | Panorama |
|---|---|
| Product Type | Networking |
