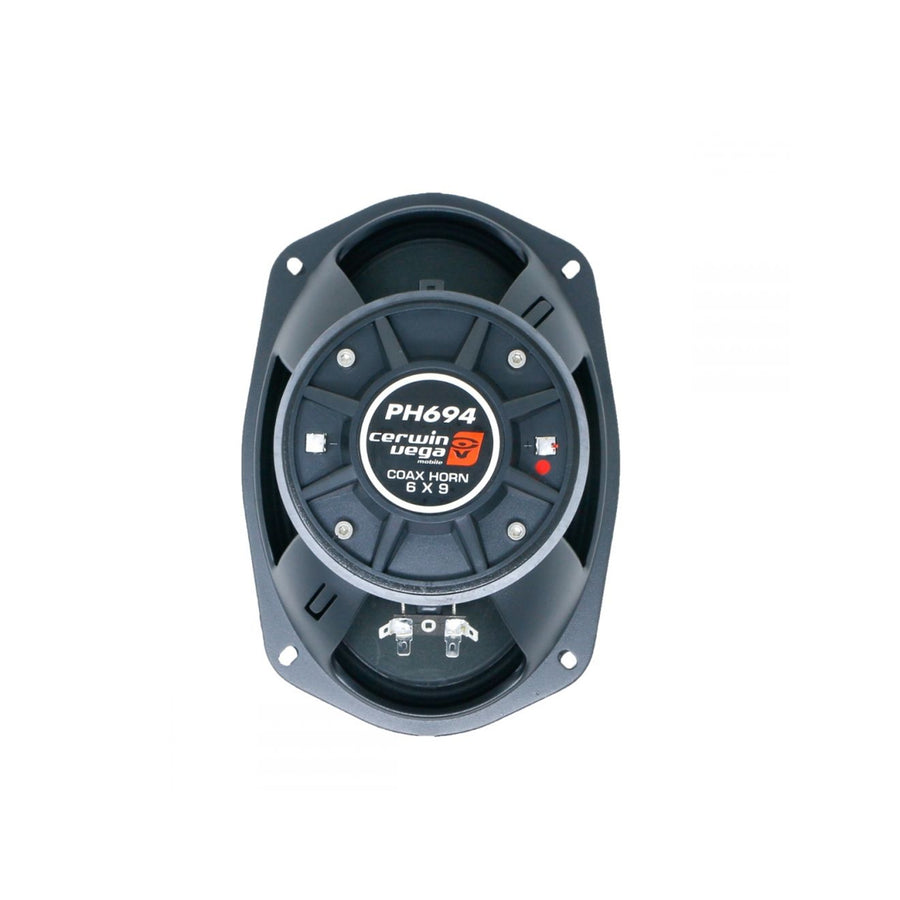

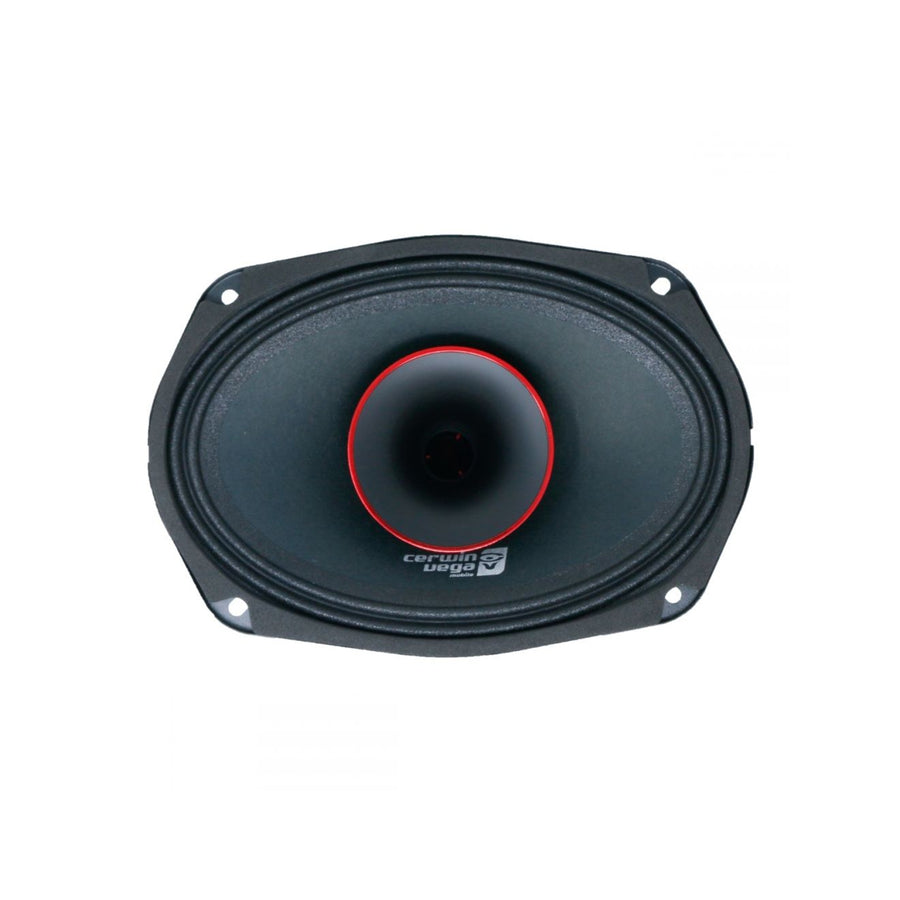

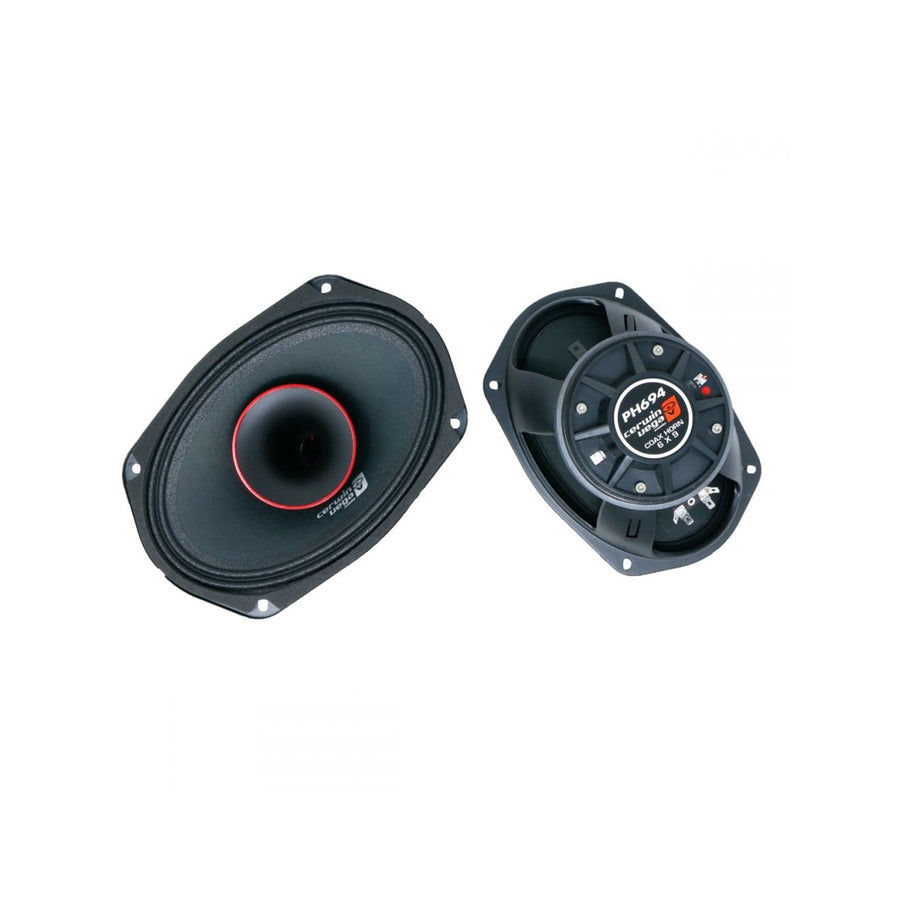

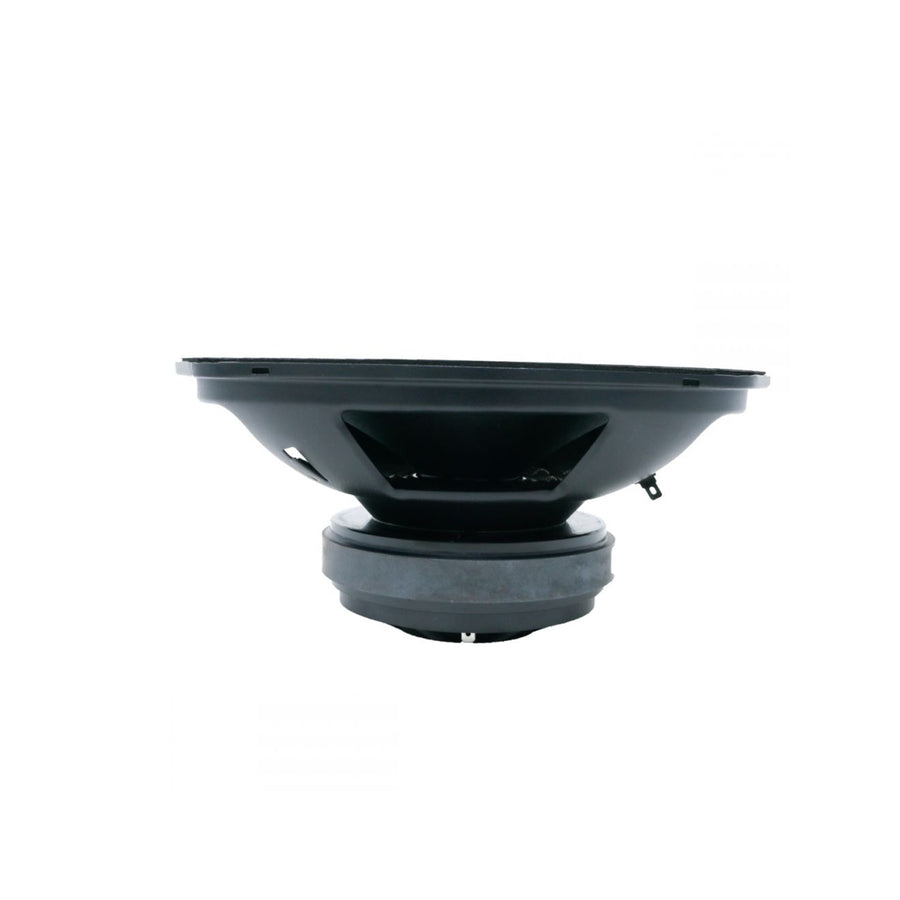

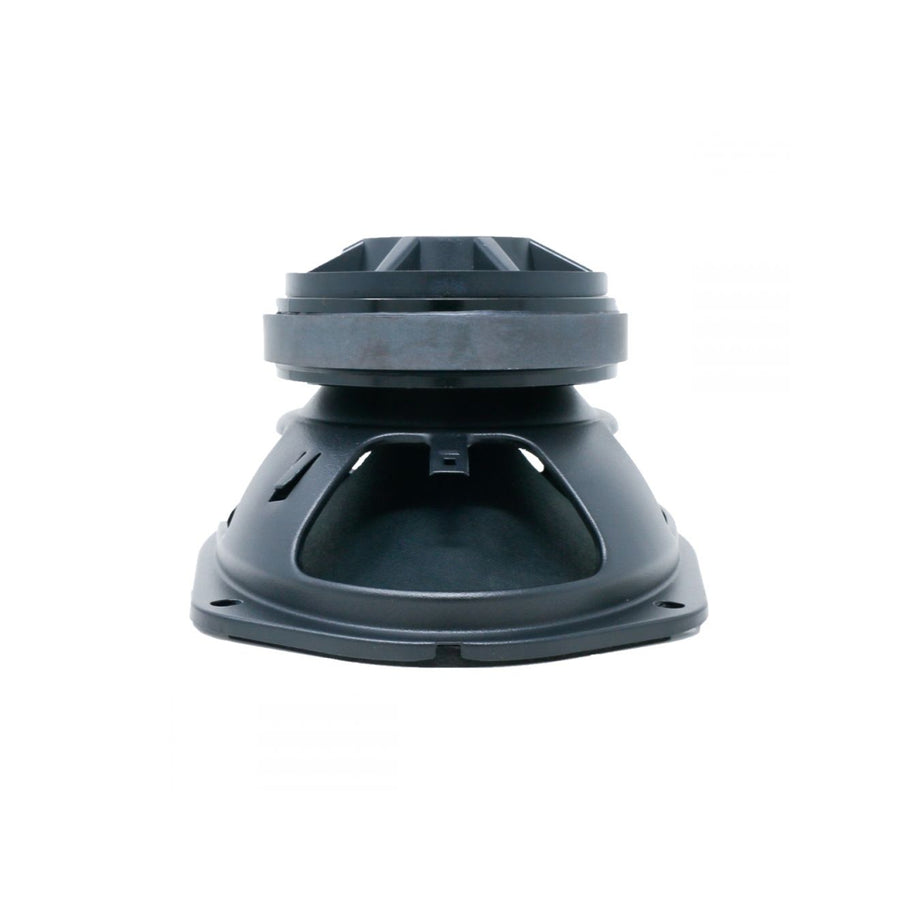

PH694 - CERWIN VEGA 6" X 9" SPEAKERS 320W PAIR PRO FULL RANGE CO-AX HORN
PH694 - CERWIN VEGA 6" X 9" SPEAKERS 320W PAIR PRO FULL RANGE CO-AX HORN
Features
PRO SERIES MIDRANGE SPEAKERS borrow from the heritage of CERWIN-VEGA'S PRO AUDIO legacy by reproducing insane SPL levels that will tingle all your senses. Create your own listening experience and concert environment with an assortment of high output PRO SERIES SPEAKERS and TWEETERS that CERWIN-VEGA MOBILE has to offer.
Features
6 X 9" PRO Full-Range Co-Ax Horn Speaker
160W RMS/320W MAX Power Handling
Ferrite Strontium High Temp Magnet Structure
Heavy Duty Stamped Steel Basket
Advanced Voice Coil Heat Sink Design for better Heat Dissipation
1.5" Double Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
1.0" Single Layer High Temp Voice Coil with Voice Coil former for Tweeter
Frequency Response: 80Hz -18Khz
High Sensitivity 101dB 1W/1M
12dB 2nd Order Filter Crossover for better Protection of the Tweeter
Mounting Depth: 3.90" / 99mm
Mounting Diameter: 8.74" x 5.98" (222 x 152mm)

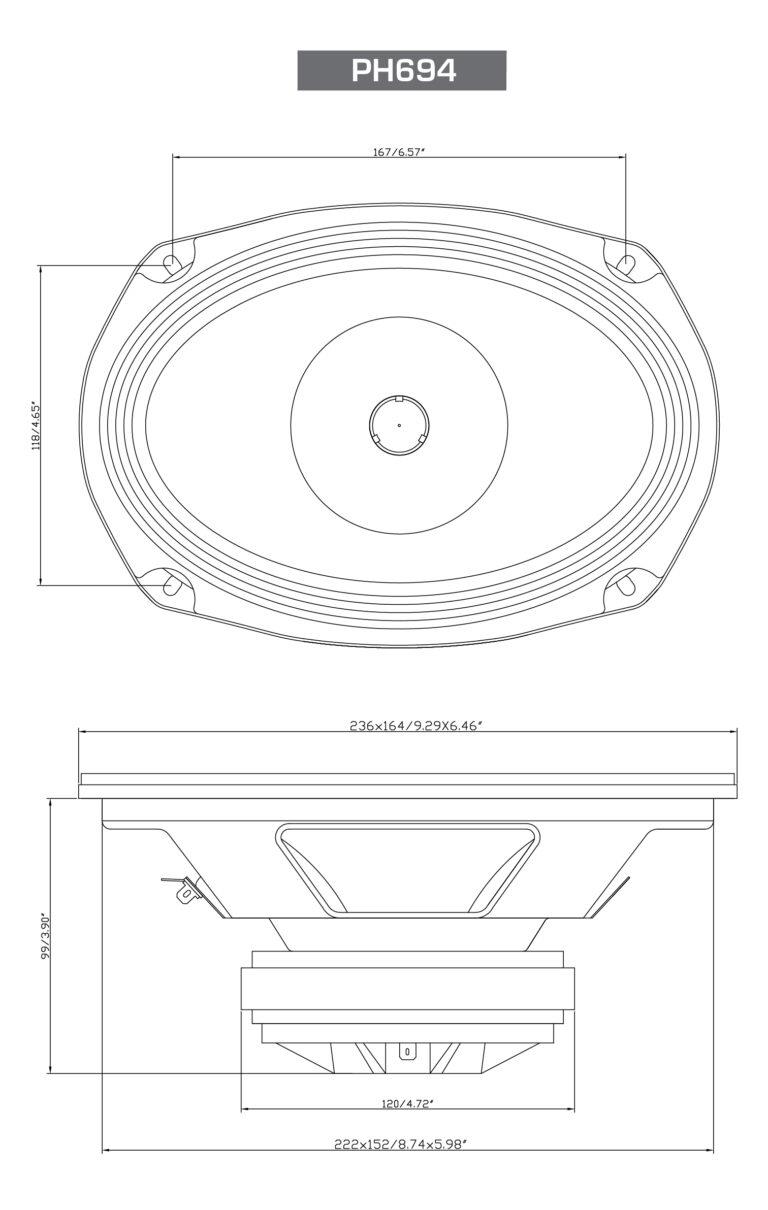

Dimensions
Specifications
Technical Specifications
| Speaker Size | 6 X 9" |
|---|---|
| RMS Power Rating | 160W RMS |
| Max Power Rating | 320W MAX |
| Frequency Response | 80Hz -18Khz |
| Voice Coil Diameter (inch/mm) | 1.5" |
| Types | Full Range |
| Re (O)[series] | 3.2 |
| Qms | 9.2 |
| Qes | 0.85 |
| Qts | 0.78 |
| Fs-Free Air Resonance (Hz) | 76.5 |
| Vas (Liter) | 22.0 |
| Cms (mm/N) | 0.30 |
| Mms (g) | 14.5 |
| Sd (cm²) | 229.7 |
| BL (T*M) | 5.1 |
| Xmax - Inch(mm) | 1.0 |
| Pwr (W) NOM/MAX | 160/ **320 |
| SPL (dB-MidBass) | 92.5 |
| SPL (dB-Tweeter) | 107 |
| Sensitivity (1W/1M) | 101dB |
| Total Diameter | 9.29X6.46 (236X164) |
| Mounting Diameter (inch/mm) | 8.74X5.98 (222X152) |
| Mounting Depth | 3.90" (99mm) |
| Total Depth | 4.26 (108.3) |
| Magnet Diameter (E) | 4.72 (120) |
