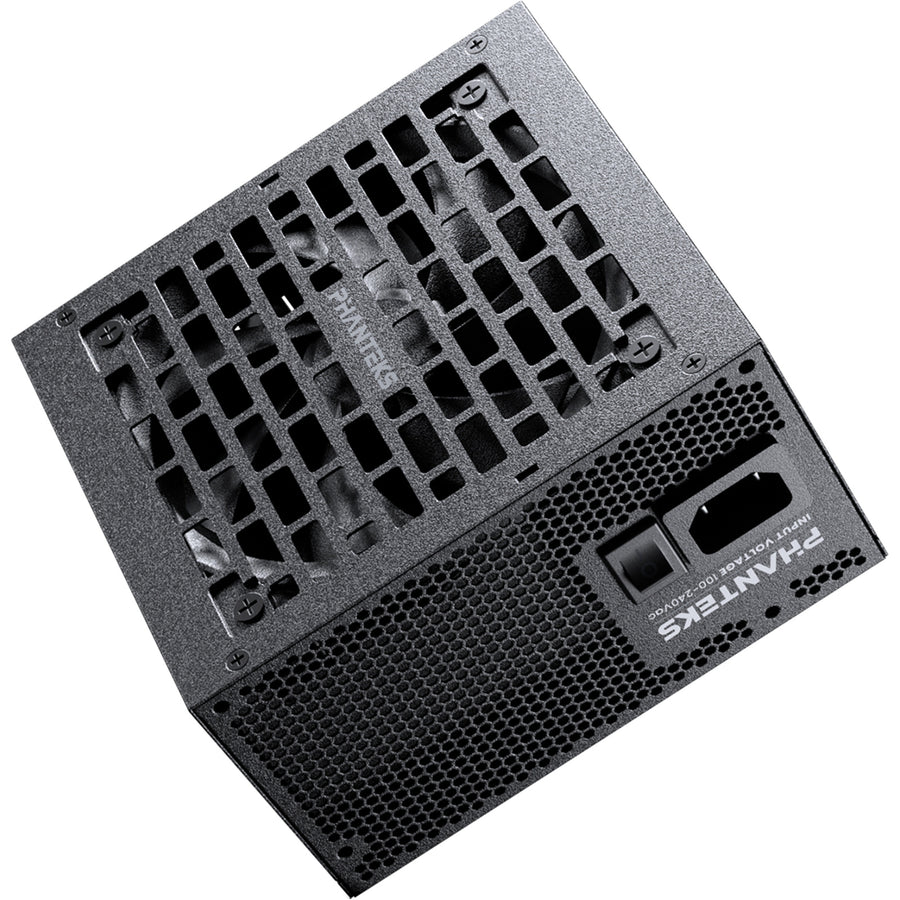

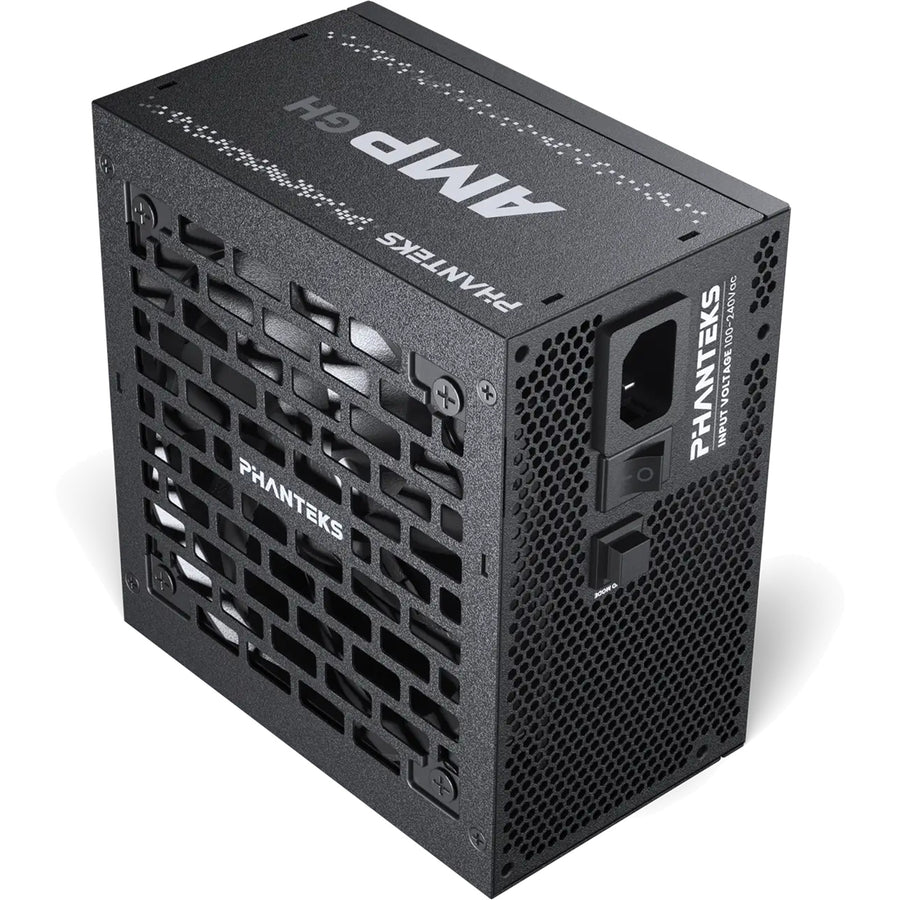

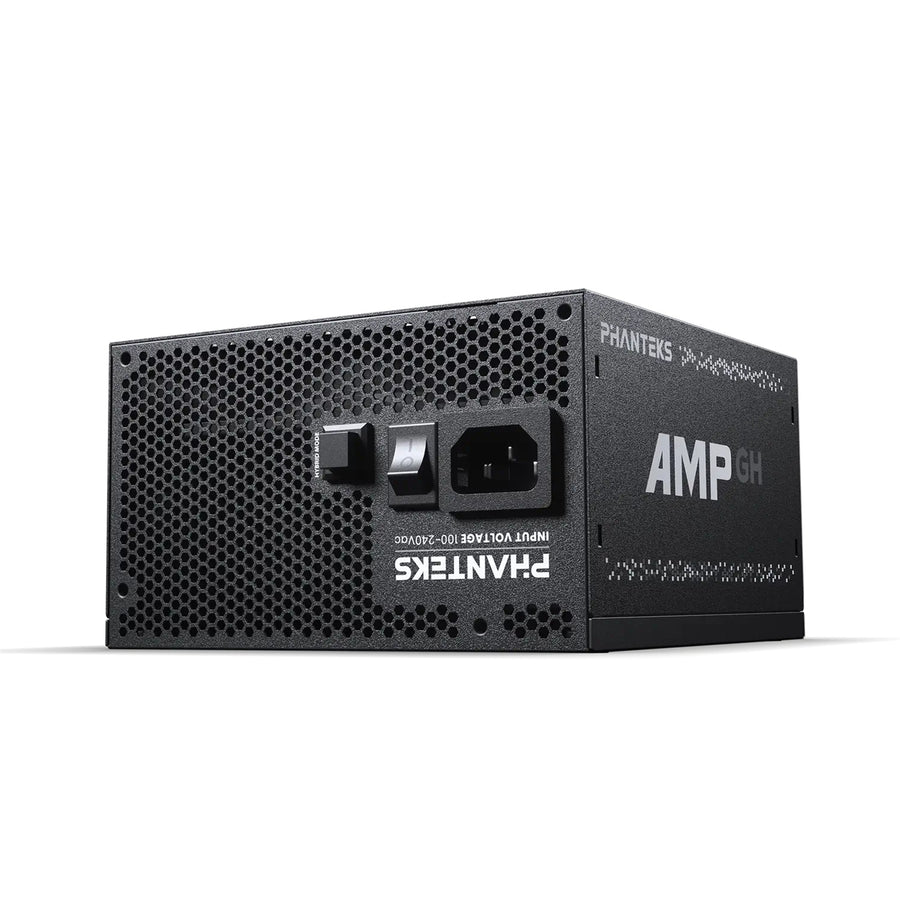

Phanteks AMP 650W ATX 3.1 80Plus Gold - Black - Full Modular Power Supply
You May Also Like
Features
AMP GH Fully Modular Power Supply
Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120 mm Hydraulic Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.
Packed With Features
Ultra-High Power Density, Compact Size
Ultra-high power density with a small footprint of only 140mm depth.
Gold-Plated High Current Terminals
Reduces current transmission resistance for increased efficiency.
120 mm Hydraulic Dynamic Bearing Fan
The hydraulic dynamic bearing (HDB) improves the lubrication of the bearing for increased stability and longevity.
Cable-Free Connection Design
The back panel and PCB are connected by a copper plate to improve output power quality.
Multi-GPU Support
Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.
Premium Hybrid Mode
- Advanced fan control for smart thermal management.
- Operates completely fanless under 30% load for silent performance.
- Ideal for ultra-quiet system builds and noise-sensitive environments.
- Balances cooling efficiency with acoustic optimization.
Specifications
Technical Specifications
| Model No. | PH-P650GH_BK01 |
|---|---|
| Materials | Steel | ABS plastic |
| Color | Black |
| Dimensions (Length x Width x Height) | 140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in |
| Power Output | 650 Watt |
| 80 Plus | Gold |
| Cooling Fan | 120 mm Hydraulic bearing fan |
| Back Plate | Fully Modular |
| MTFB | > 100.000 hrs at 25˚C (Excluding DC fan) |
| Power Supply Output Connectors | 1x Mainboard → 18+10 Pin5x CPU | PCIe → 8 Pin3x SATA | Molex → 6 Pin |
| Output Protection | OPP (Overpower Protection)OVP (Over Voltage Protection)UVP (Under voltage protection)SCP (Short Circuit Protection)OCP (Over Current Protection)OTP (Over Temperature Protection)No-Load ProtectionReset Protection |
| DC Output Ratings | Output Voltage 12V 5V 3.3V -12V 5VSBMaximum Output 54A 20A 20A 0.3A 2.5AMaximum Capacity 648W 100W 3.6W 7.5WDC Output 650WAC Output 100-240Vac/15A ~ 7.5A 50-60Hz |
| Scope of Delivery | 1x AMD GH power supply unit1x C13 Power cord 1500 mm |
| Cables Textured | 1x 18+10-Pin Mainboard 600 mm2x 4+4-Pin CPU 700 mm2x 6+2-Pin PCI-E 750 mm1x 6-Pin 4-SATA 400 - 120 | 120 | 120 mm1x 6-Pin 2-SATA + 2-Molex 400 - 120 | 120 | 120 mm |
| Accessory Box | 1x User's manual1x Installation guide1x PSU bag1x Zip tie bag1x Screw pack1x Velcro pack1x PSU jumper |
| Brand | Phanteks |
|---|---|
| Weight | 2.7 kg |
| Warranty |
|---|
