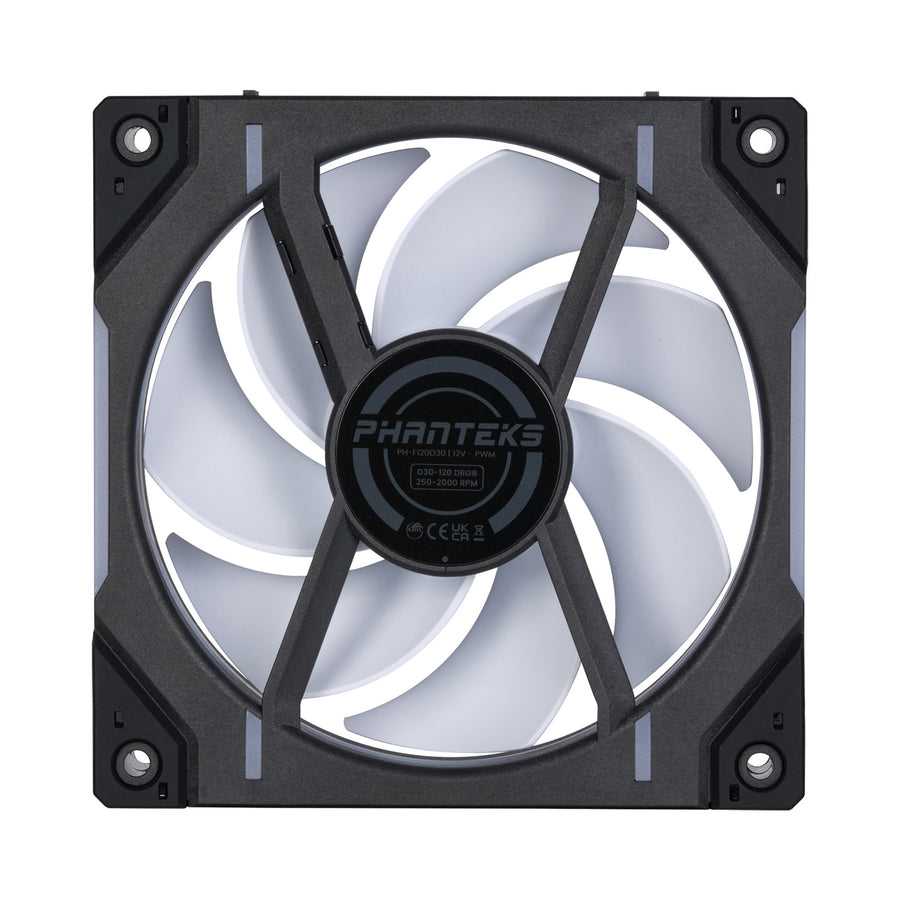

Phanteks D30 120mm PWM DRGB Fan, Single Pack Black
Features
Premium D-RGB performance fan
The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.
The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.

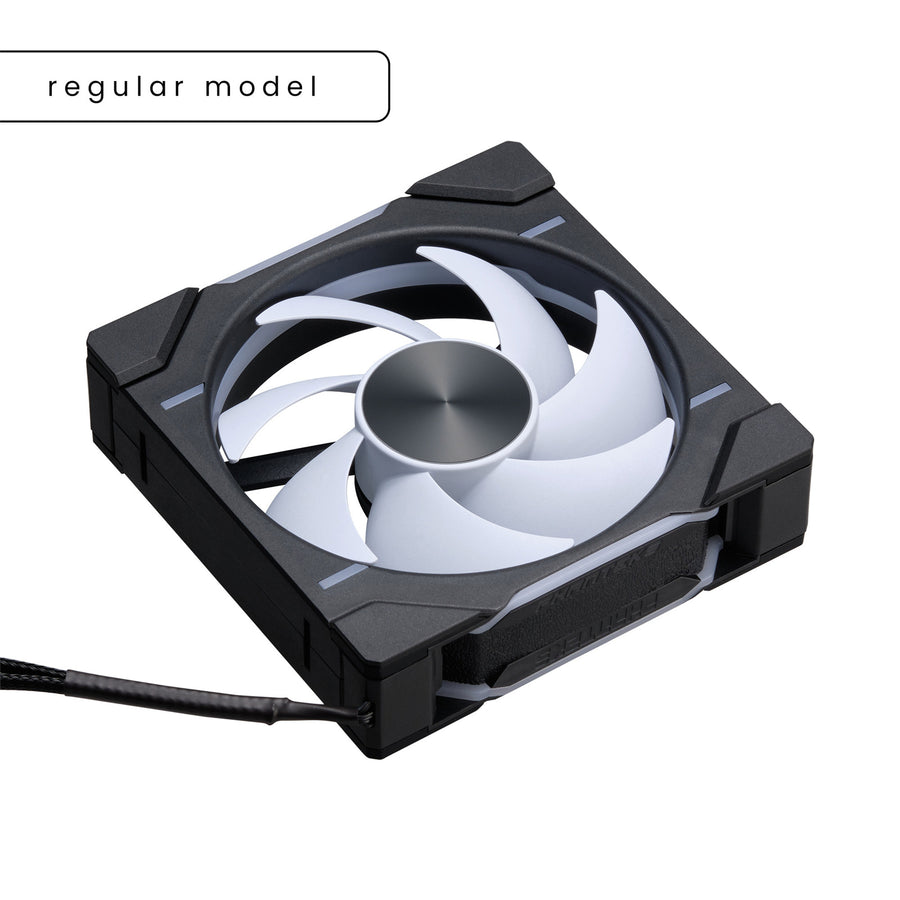

Regular & reverse airflow models available
With regular and reverse airflow models available, the D30 fan allows for the perfect configuration without obstructing the fan blade lighting effect.
*Note: This model is the REGULAR version of the fan.

Easy and clean fan linking system
Linking multiple fans together reduces cable clutter considerably while the screw cover plates and bridge connectors make multiple D30 fans work as one clean unit.

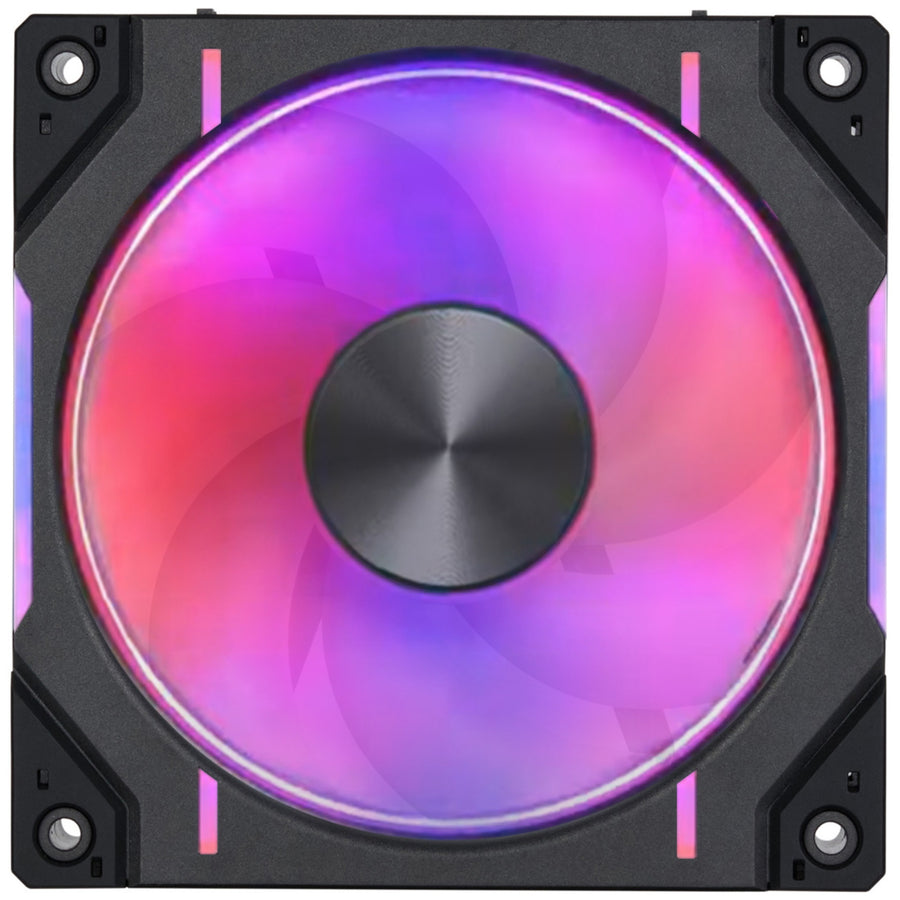

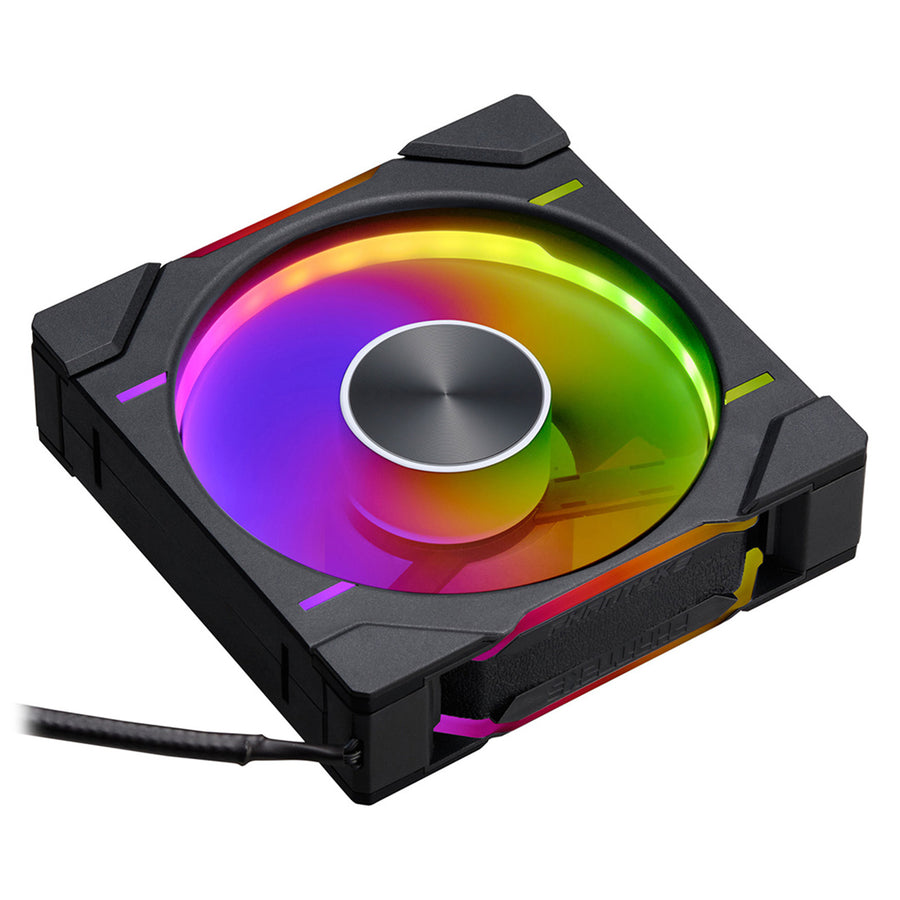

D-RGB all the way
The D-RGB lighting is integrated and visible from all sides of the D30-120 fan. The blades reflect the light coming from the Halos lighting ring inside the frame. This makes the lighting effect brighter and smoother than usual. The diffuser lines in the frame pass on the lighting effect from one fan to the next creating a chain effect throughout the system. Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.

30mm of performance
The D30-120 airflow performance excels especially when things get tough. When put on a radiator or behind restrictive mesh/dust filters, the 30 mm thick frame and blades provide plenty of air pressure to keep things cool.
Specifications
Technical Specifications
| Model No. | PH-F120D30_DRGB_PWM_BK01 |
|---|---|
| Fan Dimension (WxHxD) | 120 x 120 x 30 mm |
| Blade Geometry | Seven Blades Design |
| Frame Color | Black |
| Rated Voltage | DC 12V / LED 5V |
| Operating Voltage Range | 5 -13.2V |
| PWM | Yes |
| Speed | 250 -2000 +10% RPM |
| Max. Airflow | 64.3 CFM |
| Max. Air Pressure | 3.01 mm H2O |
| Noise Level | 30.2 dB(A) |
| Fan Connector | 4-Pin PWM |
| Cable Length | 700 mm / 27.56 in |
| D-RGB Connector | 3-Pin JST Daisy-chain |
| D-RGB Cable Length | 600+100 mm / 23.62+3.94 in |
| LED Number | 30 (D-RGB) |
| LED Rated Current | Max 0.45A |
| MTBF | 50.000 hrs at 40°C |
| Fan Weight | 300 g |

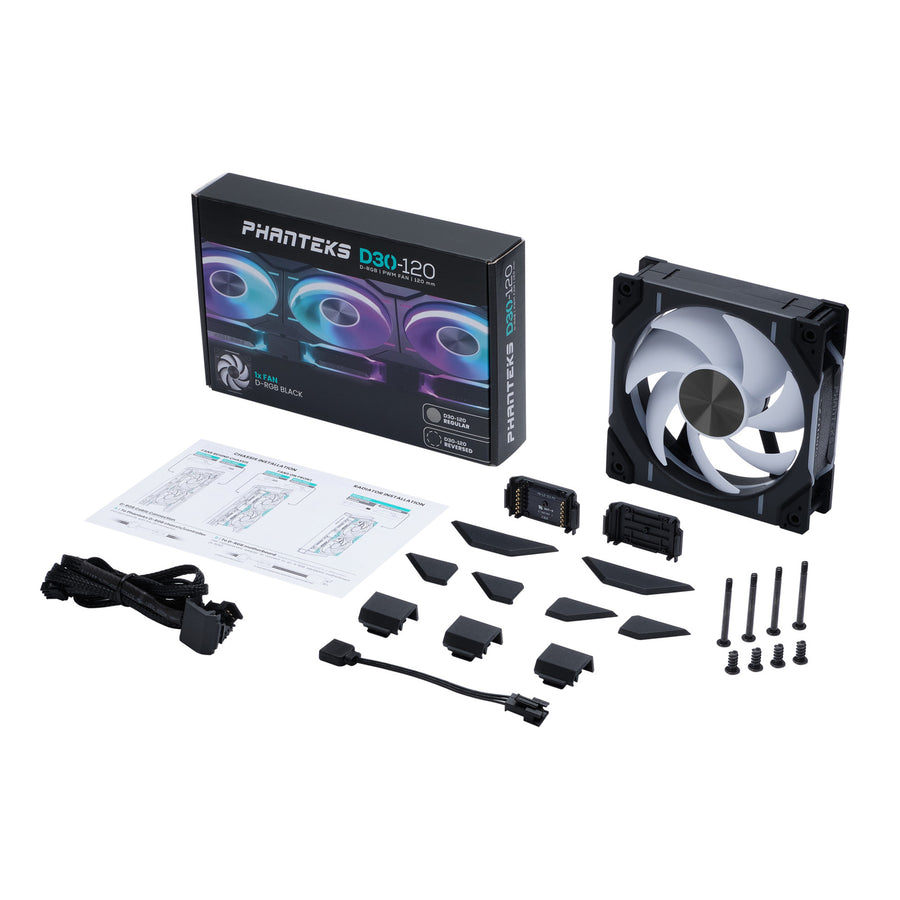

| Package Contents | lx PH-F120D30_DRGB_PWM4x Fan Screw4x Radiator Screw 36mmlx Corner Clip Cable, 3x Corner Cliplx Bridge Clip, lx Bridge Clip Connector4x Screw Cover Corner (2L, 2R)2x Screw Cover Bridgelx D-RGB M/B Adapter |
| Brand | Phanteks |
|---|---|
| Product Type | PC Parts |
