PIONEER VSX534B - 5.2 Channel AV Receiver Amplifier. 150 Watts per Chann 2x Subwoofer Preout 5x HDMI (4
Features
https://intl.pioneer-av.com/pioneer/vsx-534-av-receiver

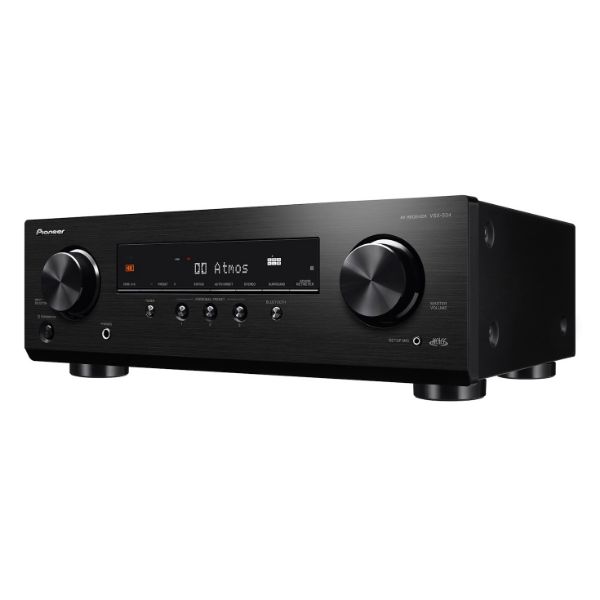

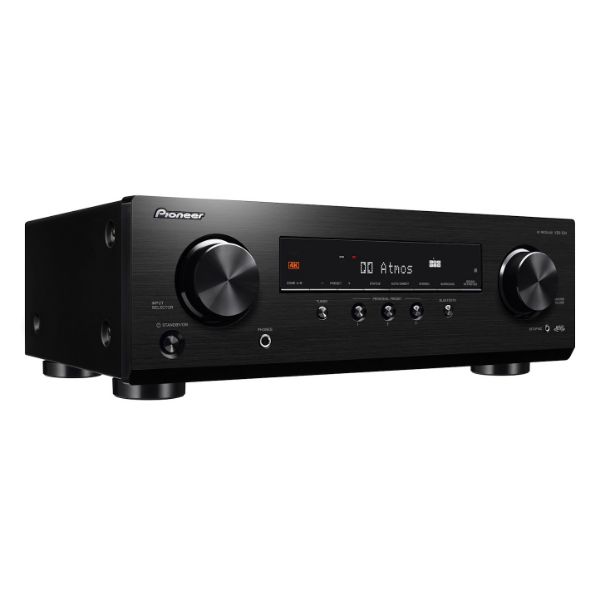

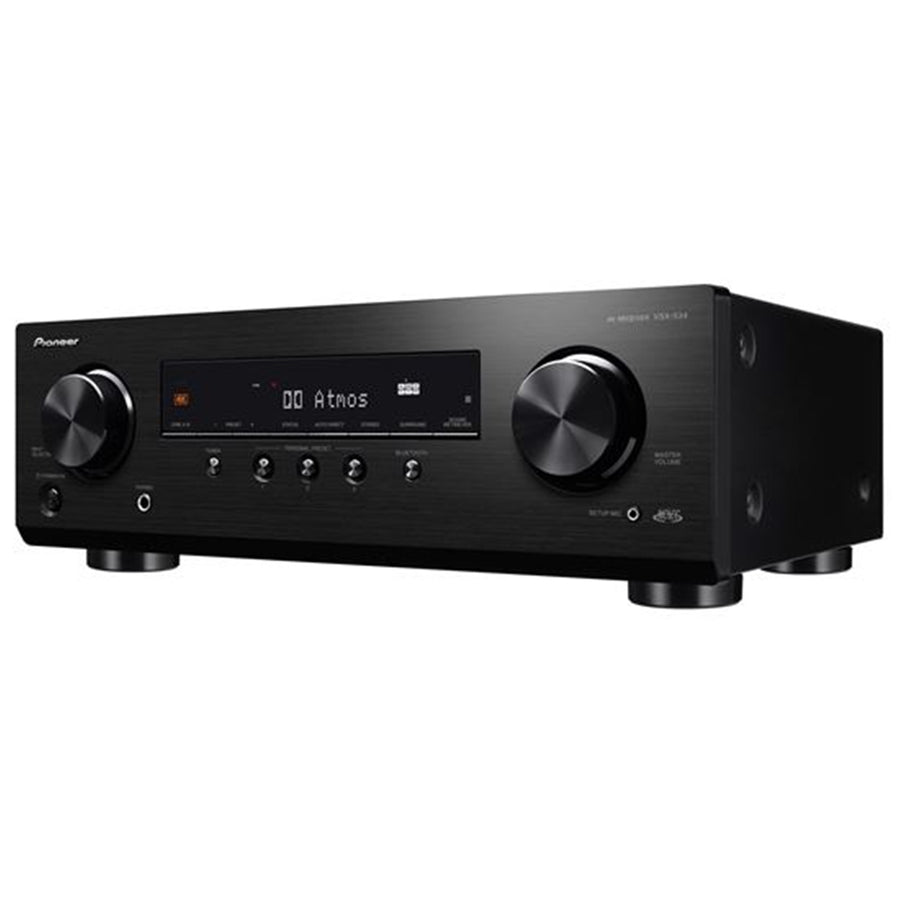

The VSX-534
A top-notch receiver with surround sound capabilities, without spending a fortune.

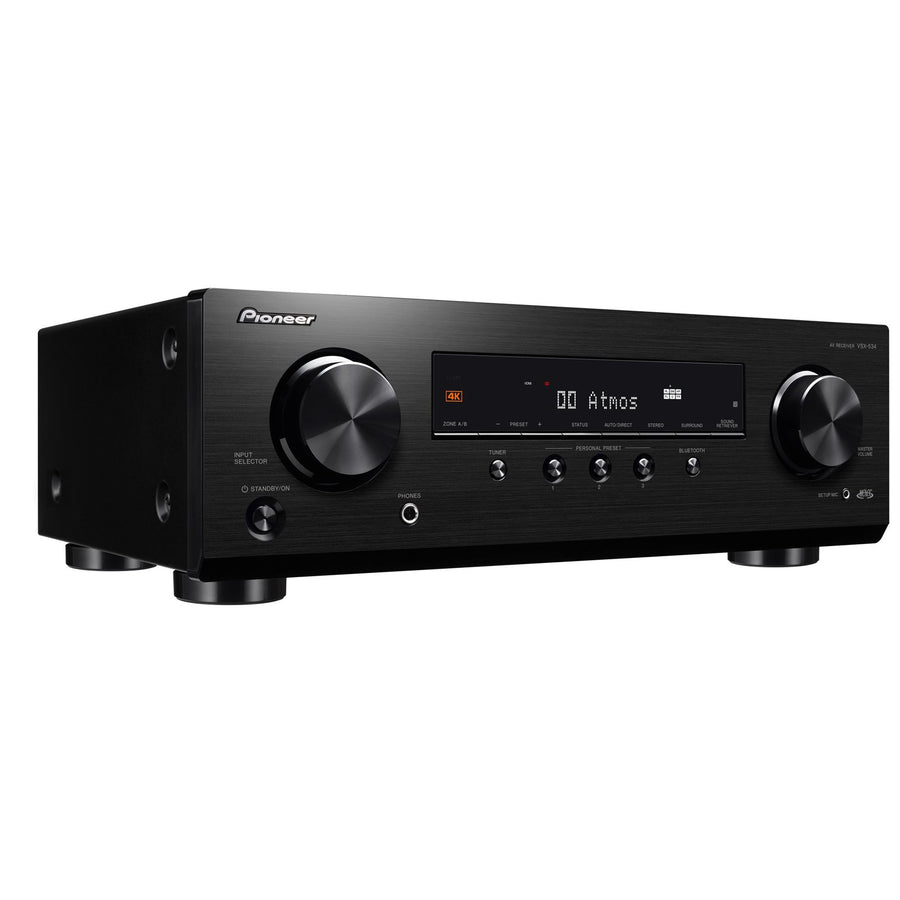

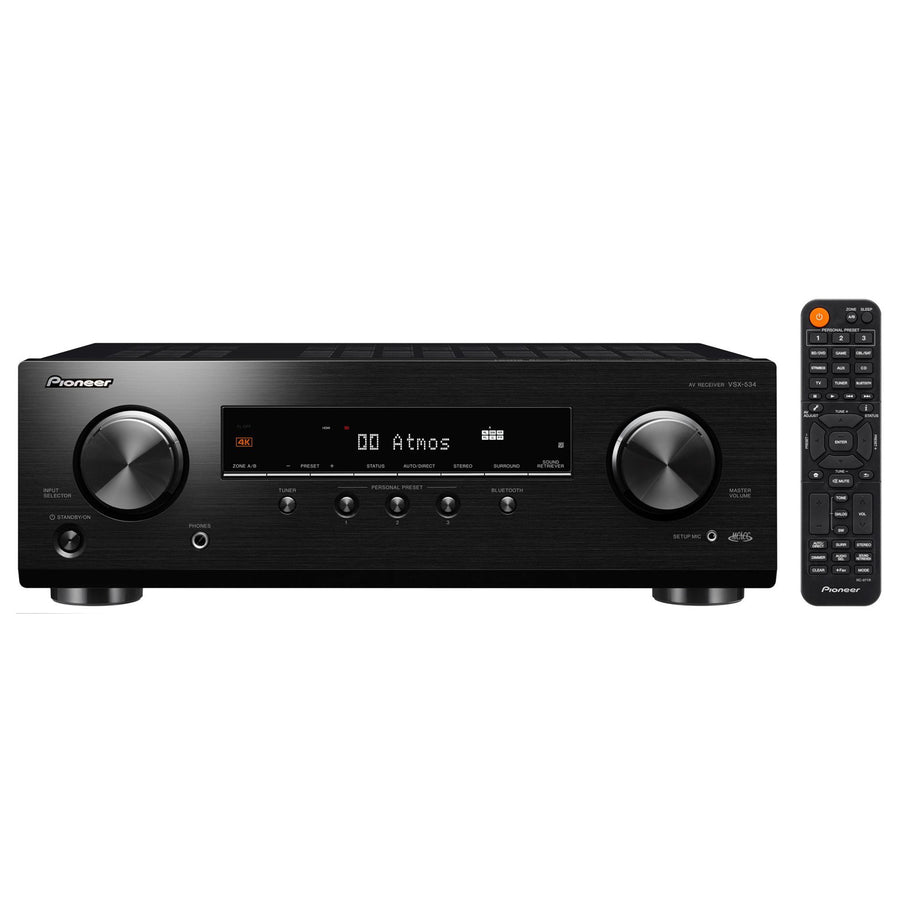

The VSX-534 5.2 Channel AV Receiver features Dolby Atmos® immersive sound at a price you will not find anywhere else. The VSX-534 comes in a user-friendly design with a 12% slimmer size than the previous model for easy installation. A 4K indicator and Personal Preset and Bluetooth® Input buttons on the front panel make it easy to setup. Immerse yourself in enveloping sound with Dolby Atmos and DTS: X® audio formats. Even without height or surround speakers, you can still enjoy virtual 3D surround effects with Dolby Atmos Height Virtualizer and DTS Virtual: X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2, so you can fully appreciate premium 4K content.
All encompassing sound

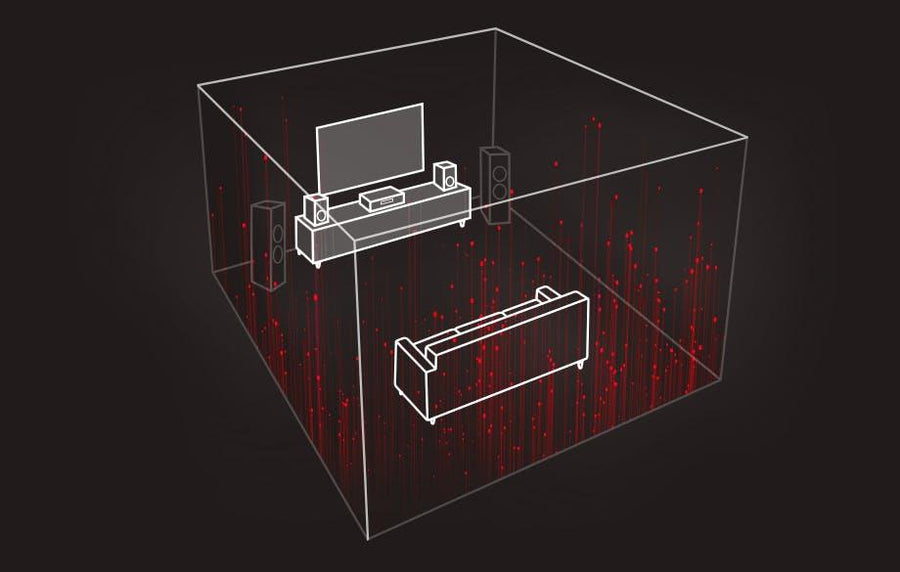

Reproduce object-oriented sound with Dolby Atmos in smooth, curving or realistic, three-dimensional, overhead movements. And with Height Virtualizer, Dolby Atmos creates virtual height effects from traditional speaker layouts without employing additional surround or height speakers.
4k HDR ready

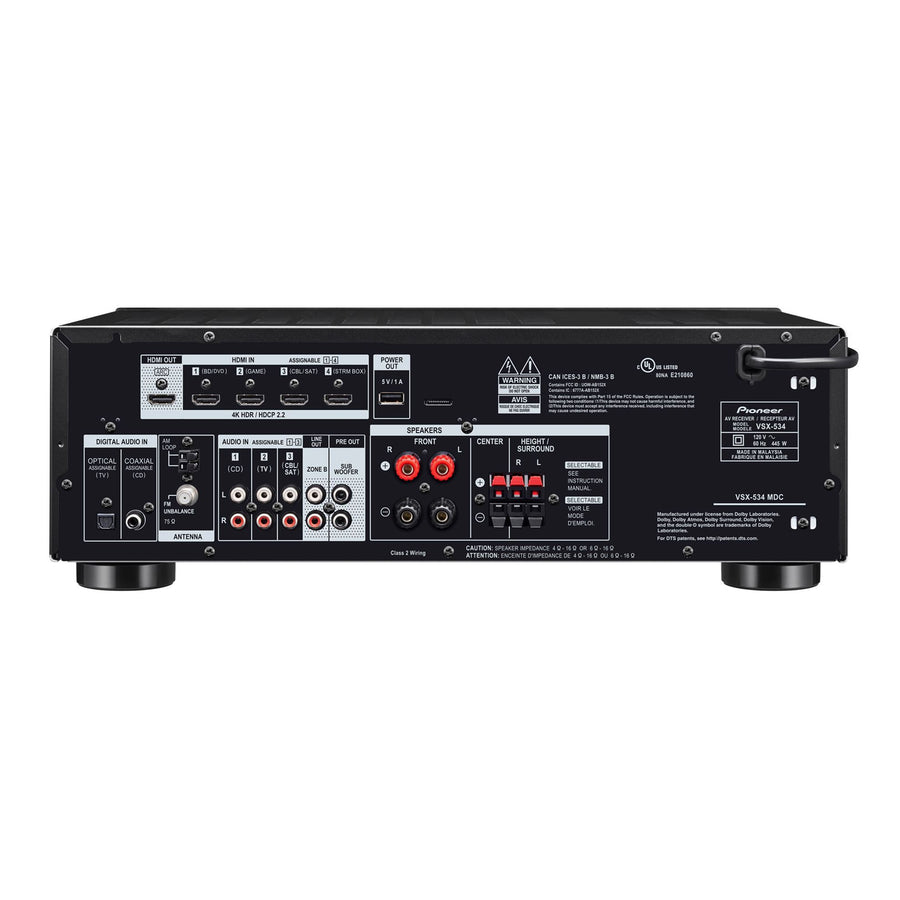

Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision, and BT.2020. Additionally 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector; and all terminals are HDCP 2.2 compliant.
Smooth & easy Bluetooth
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
Customized to you
MCACC auto room tuning uses a custom microphone to automatically compensate for differences in speaker size, level and distance, and equalizes response, so you get the even sound you're supposed to.
Specifications
Technical Specifications
| Amplifier Design | Direct Energy |
|---|---|
| Power Output: Watts per Channel (20Hz-20kHz,.08%THD@8ohm 2ch Driven) | 80 W/ch |
| Estimated Power Consumption/Network Standby off | 445 W/0.1 W |
| Channels | 5.2 |
| Power Output: Watts per Channel (1kHz,10%THD@6ohm 1ch Driven) | 150 W/ch |
| Digital Core DSP Engine | Digital Quad-Core 32-bit DSP (Cirrus Logic) |
| Audio Processing | - |
| Music File Playback | 192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB |
| Dolby Atmos | Yes |
| Dolby TrueHD | Yes |
| DTS:X | Yes |
| DTS Neural:X | Yes |
| HDMI SACD Transfer | 2 Channel |
| Audio DACs | 384 kHz/32-bit D/A Conversion with AK4438 (AKM) |
| iPod Digital Audio | - |
| High-Definition Copy Protection (HDCP) | 2.2 |
| Dolby Atmos Height Virtualizer | Yes (* Available with future firmware update) |
| Dolby Digital Plus | Yes |
| DTS-HD Master Audio | Yes |
| DTS Virtual:X | Yes |
| Phase Control | Yes |
| MCACC Memory | 1 |
| EQ Bands | 9-band |
| X-Curve | - |
| Polarity Check | - |
| MCACC | Yes |
| Standing Wave Control | - |
| Symmetric EQ | Yes |
| Distance Adjustment | 0.1 feet |
| Auto Subwoofer Crossover | Yes |
| Auto Surround | Yes |
| Advanced Surround | 10+1 |
| Front Stage Surround Advance | Yes |
| Virtual Speakers | - |
| Stream Direct | Yes (Direct, Pure Direct) |
| Wide Surround | - |
| Headphone Surround | - |
| Dialog Enhancement | Yes |
| Sound Retriever AIR | - |
| Tone Control | Multi |
| Speaker A/B | - |
| Advanced Sound Retriever | Yes |
| Digital Noise Reduction | - |
| Sound Delay (Lip Sync) | Yes |
| Bi-Amp | Yes |
| 4K Ultra HD Pass-Through | Yes (HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through) |
| 3-D Ready | Yes |
| HDMI Standby Through | Yes with Input Switch / Last Memory |
| HDMI 36-bit Deep Color | Yes |
| Video Processor | - |
| Component Video Scaler | - |
| Pure Cinema I/P Converter | - |
| 3D Noise Reduction | - |
| 4K Ultra HD Video Scaler | Ultra HD Upscaling |
| Audio Return Channel | Yes |
| Dolby Vision Compatible | Yes |
| HDMI x.v. Color | Yes |
| Video Converter to HDMI | Yes |
| Composite Video Scaler | - |
| Advanced Video Adjustment | - |
| Super Resolution | Yes |
| HDMI Input / Output | 4 In (Rear) / 1 Out |
| Wi-Fi Built-In | - |
| Wireless Adapter Port | - |
| Component Video Input / Output | - |
| iPhone / iPod / USB Memory Input | - |
| Ethernet Input | - |
| Digital Audio Inputs / Output | 2 In (Optical 1, Coaxial 1) |
| Headphone Output | Yes |
| AM/FM Presets | AM/FM Tuner 40 Presets |
| MHL 2 | - |
| Bluetooth Built-In | Yes (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) |
| Bluetooth Adapter Port | - |
| Composite A/V Input / Output | - |
| USB Terminal | Rear |
| Analog Audio Inputs / Output | 2 in / 0 out |
| Pre-Amp Output | 0.2 ch. |
| Front A/V Inputs | USB / 3.5mm stereo mini jack |
| On-Screen Display | User-Friendly GUI with System Setup Menu |
| Multi-Room and Source Output | - |
| Multi-Zone On-Screen Display | - |
| Function Rename | - |
| Sleep Timer | Yes |
| Auto Power Down | Yes |
| IR Serial Remote In/Out | - |
| FL Dimmer | Yes |
| Remote | Yes |
| Versatile Speaker Configuration | FRONT, CENTER, SURROUND/HEIGHT |
| Front Panel | Brushed |
| Speaker Terminals | 2 large + 3 clip |
| W x H x D (inches) Wi-Fi Antenna's Up | - |
| Weight | 17.6 |
| W x H x D (inches) | 17-1/8 x 5-13/16 x 12-5/8 |
| Brand | PIONEER |
|---|---|
| Product Type | Headphones & Audio > Home Audio & HiFi |
| Weight | 11.107 kg |
| Warranty |
|---|
