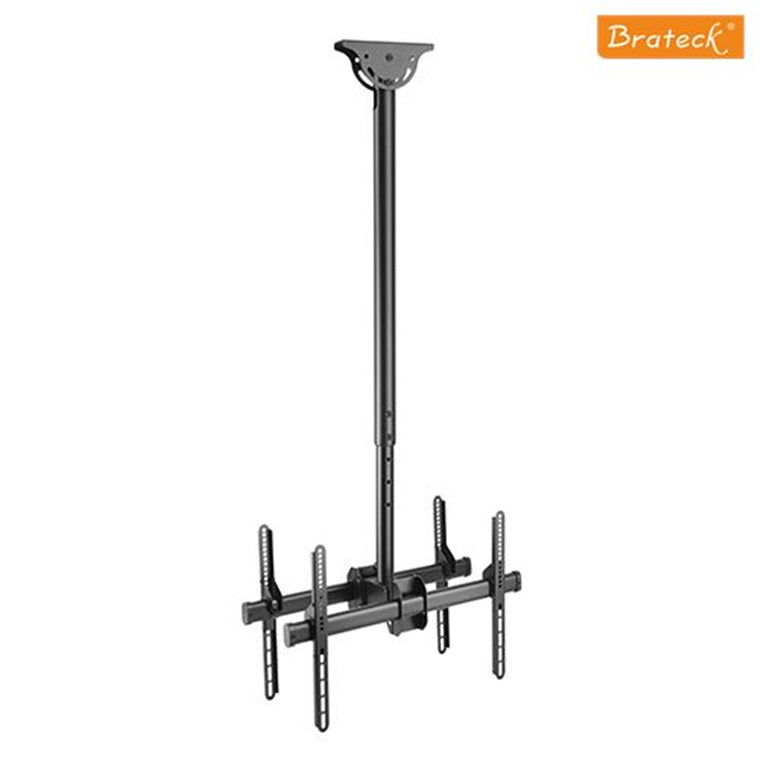

BRATECK PLB-CE946-01LD - 37''-75'' Dual ceiling mount bracket for commercial signage MAX weight 90Kgs (2x45kgs).
Features
Back-to-Back Flat Panel Ceiling Mounts
For most 37"-70" LED, LCD flat panel TVs
The Lumi's PLB-CE946-01LD is a flexible ceiling mount designed to provide extra possibilities by allowing two screens to be placed back-to-back. Tilting ceiling plate for flat and sloping ceiling application. It allows displays to tilt and swivel around the pole without tools. Universal mounting pattern fits virtually any 37" - 70" flat panel TVs. Each mount holds up to 45kg / 99lbs. Features adjustable height for perfect TV positioning and a wire management channel to keep cables concealed and organized.
- Telescoping height adjustment for the optimal viewing height
- Ceiling plate can be adjusted for mounting in flat or sloping ceiling
- Free-tilting design for multiple monitor viewing angles
- Built-in level adjustment ensures perfect positioning
- Cable management keeps everything organized
Specifications
Technical Specifications
| Product Name: | TV ceiling mount |
|---|---|
| By Function: | Tilting |
| By Mounting Pattern: | Universal |
| Material: | Steel |
| Surface Finish: | Powder coating |
| Available Color: | Black |

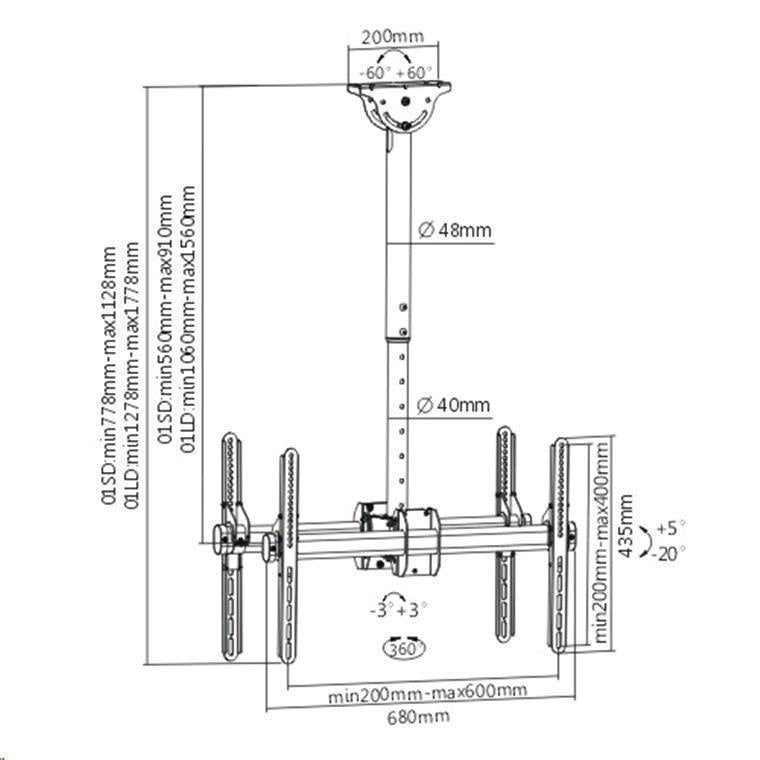

| Product Size With Open Position: | 680X435X1778mm (26.8"X17.1"X70") |
| Fit Screen Size: | 37"-70" |
| Installation: | Ceiling |
| Rated Load: | 45*2kg (45*4.4lbs) |
| Strength tested: | 3 times approved |
| Max.Hole Pattern: | 605x405mm |
| VESA: | 200x200,400x200,300x300,400x400,600x400 |
| Tilt: | +5°~-20° |
| Swivel: | -180°~+180° |
| Level Adjustment: | -3°~+3° |
| Rotating: | No |
| Profile: | 1060-1560mm (41.7"-61.4") |
| Bubble Level: | No |
| Anti-theft: | No |
| Cable Management: | Yes |
| Wall separated: | No |
| Panel separated: | Yes |
| Freely Tilting: | Yes |
| Motorized: | No |
| User Manual : | Yes |
| Brand | BRATECK |
|---|---|
| Product Type | TV & Home Theatre > TV Mounts & Accessories |
| Weight | 10.295 kg |
| Warranty |
|---|
