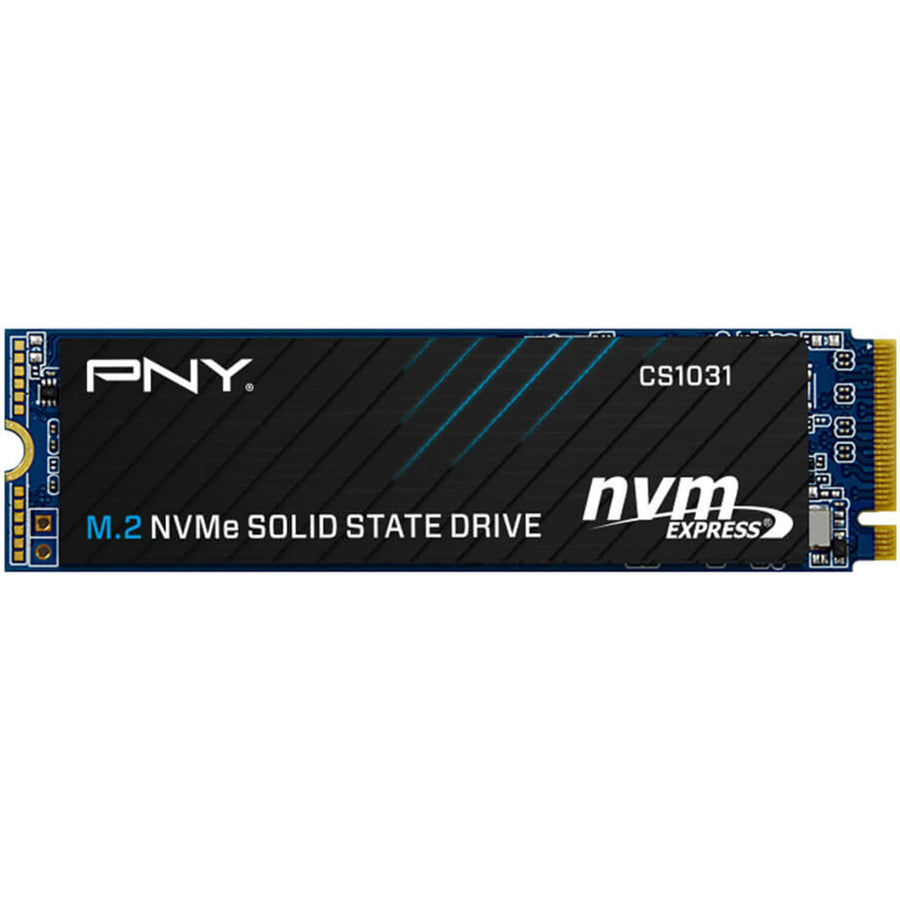

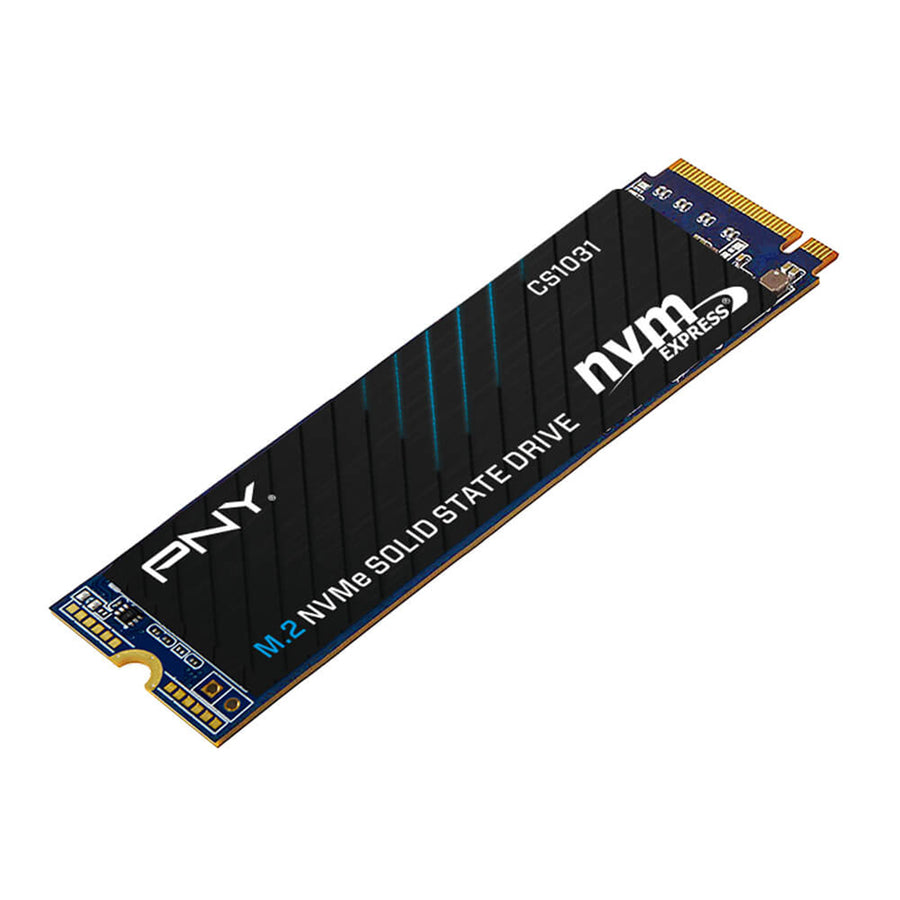

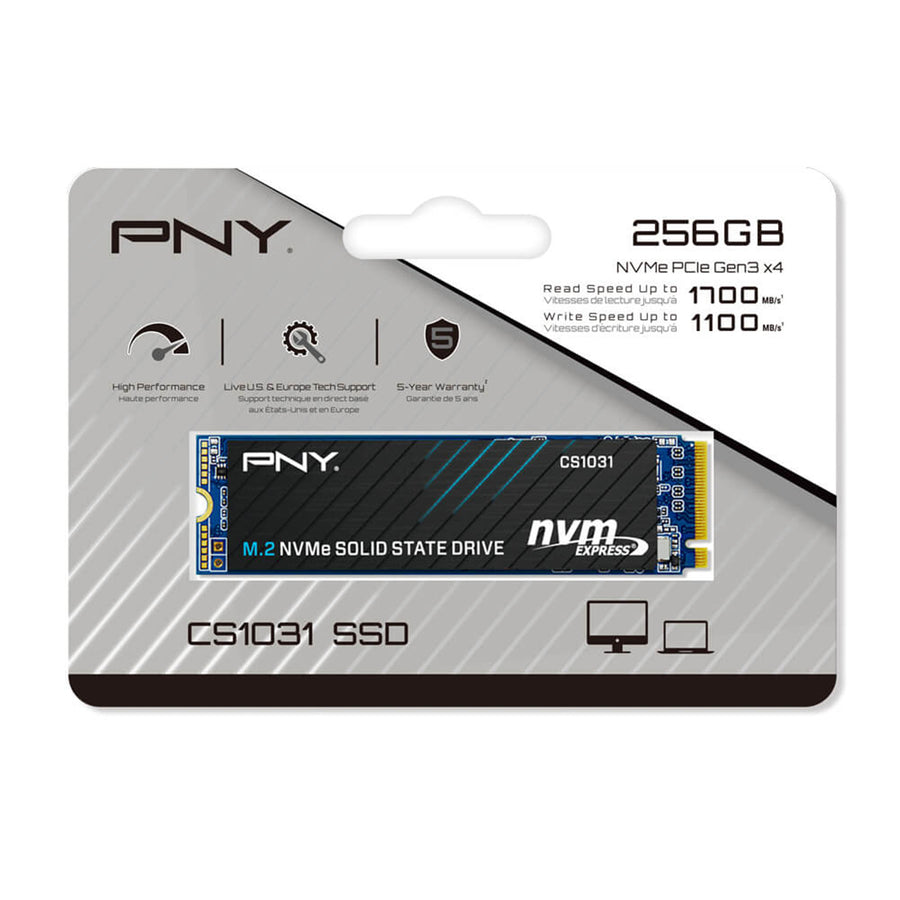

PNY CS1031 256GB M.2 Internal SSD
Features
CS1031 M.2 2280 NVMe Gen3x4 SSD
The PNY CS1031 M.2 NVMe SSD is an excellent choice for an NVMe Gen3 upgrade for more storage or improved performance as compared to a SATA based solid state drive (SSD) or traditional hard drive (HDD) in an NVMe enabled desktop or laptop computer, the NVMe interface delivers high performance of up to 1,700 MB/s seq. read and 1,500 MB/s seq. write speeds.
The PNY CS1031 drive is designed to be an upgrade from conventional SATA based storage to take advantage of the high bandwidth of the NVMe interface to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 3 times faster than with SATA based SSD's. With no moving parts, the PNY CS1031 M.2 NVMe SSD is highly durable, less likely to fail, and supports a 5 year warranty.
The PNY CS1031 is engineered with the same level of quality and durability that our consumers have enjoyed with the CS900 SSD. We've taken the world's most advanced NAND flash and refined the CS1031 to achieve a higher threshold for endurance and reliability. PNY's extensive testing and rigorous validation process ensures compatibility across various platforms and multiple operation systems.
APPLICATIONS
- NVMe upgrade from a SATA based solid state drive (SSD) in an existing NVMe enabled PC or MAC desktop or laptop computer
- High performance SSD with up to 3 times the performance as compared to SATA based SSDs
FEATURES AND BENEFITS
- Sequential read of up to 1,700 MB/s
- Sequential write of up to 1,100 MB/s
- Faster boot-up and quicker application launch
- Better overall system performance
- Reliable storage
- Low power consumption, cool and quiet operation

High Performance
Transfer speed faster than a traditional SATA based storage

Enhanced Reliability
Non-volatile NAND up to 30 times more robust than HDDs

5-Year Warranty
Extended protection and peace of mind
Specifications
Technical Specifications
| Usable Capacities | 256GB |
|---|---|
| NAND Components | 3D NAND |
| Interface | PCIe Gen 3x4 NVMe 1.3 |
| Form Factor | M.2 2280 |
| Box Dimensions (L × W × H) | 123 x 85 x 4.3 mm |
| Product Dimensions (L × W × H) | 22 x 80 x 2 mm |
| Weight | 6.6g |
| Max Sequential Read | Up to 1700MB/s |
| Max Sequential Write | 256GB: up to 1100MB/s |
| TBW | 256GB: 380 |
| PCIe Link Power Management | APST, ASPM, L1.2 |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Certifications | BSMI, CE, FCC, KCC, VCCI, REACH, RoHS |
| MTBF | 2 Million Hours |
| Error Correction Code | Less than 1 sector per ten quadrillion bits read |
| Product Health Monitoring | Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T) |
| Full End-to-End Data path protection | Supported |
| Performance Optimization | TRIM (requires OS support) |
| Warranty | 5-year Limited Warranty |
| Brand | PNY |
|---|---|
| Product Type | PC Parts |
