Ubiquiti
POE-24-24W-5P - Ubiquiti 24v 1A Gigabit Power Over Ethernet Supply White 5-pack
$108.69
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Device Protection

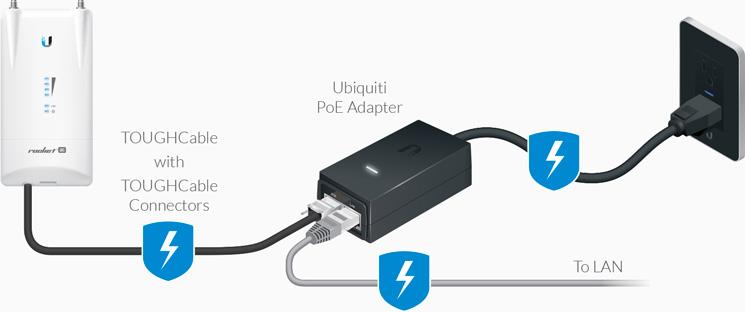

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

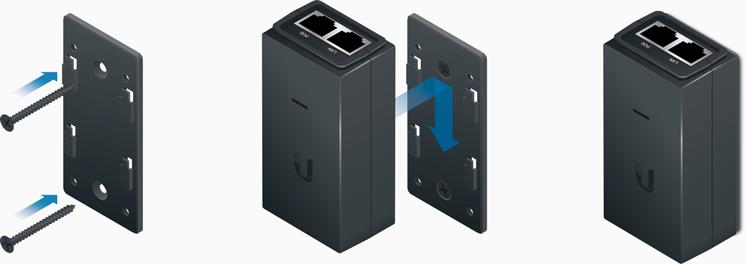

Convenient Wall-Mounting
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.
Seamless airGateway™ Compatibility
The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.
Download data sheet: https://www.gowifi.co.nz/specs/PoE_Adapters_DS.pdf
Specifications
Technical Specifications
| Manufacturer's Product Code | POE-24-24W-5P-AU |
|---|---|
| Dimensions | 88 x 57 x 33 mm |
| Weight | 135 g |
| Output Voltage | 24VDC @ 1.0A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | No |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | = 3% |
| Load Regulation | = 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-)) |
| 4-Pair Powering | No |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 1.6 kg |
| Warranty |
|---|
