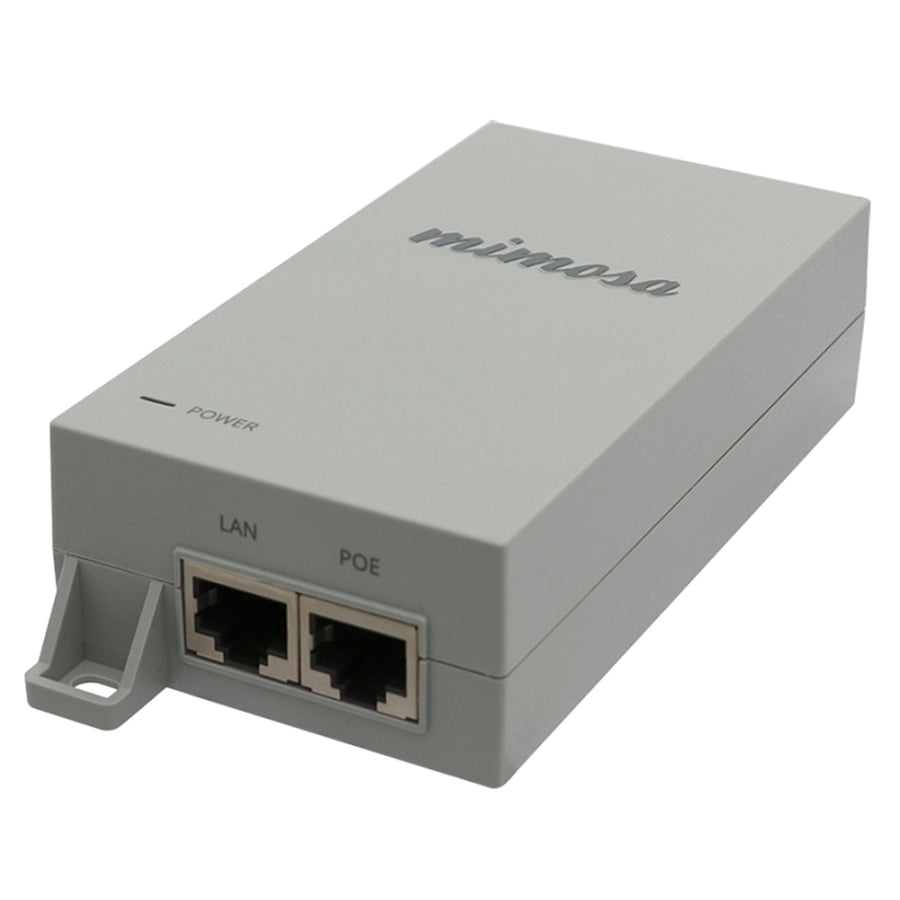

POE-50V - Mimosa POE-50V Passive PoE Injector for Mimosa

SKU: POE-50V ● In Stock

$39.00

Free shipping over $299 Genuine product 7-day returns

POE-50V - Mimosa POE-50V Passive PoE Injector for Mimosa

Features

Mimosa POE-50V Passive PoE Injector for Mimosa Radios. Mimosa's wide range of Power over Ethernet (PoE) solutions are designed for a clean installation in any environment. Supporting many county specific plugs and power options, Mimosa's PoE is the ideal power solution for your wireless installations.

Specifications

Technical Specifications

Dimensions	138 mm x 62 mm x 35 mm
Weight	0.24 kg (8.8 oz)
Color	Grey
Gigabit LAN	Yes, (2) RJ-45
Output Voltage	50 V === 1.2A
Max Current Load	1.2A (60 W)
Pinout	PIN 1/2 and 4/5: +50 V; PIN 3/6 and 7/8: GND
Input Voltage	100-240 VAC ~ 50/60 Hz; Max 1.5A
Input Current	1.5A @ 115 VAC; 1.0A @ 230 VAC
Input Frequency	47-63 Hz
Max In-Rush Current	150A
Ripple Voltage	200 mV
Protection	Over Current; Over Voltage
Efficiency	88+% - Level VI
RJ-45 Type	Metal-Shielded
AC Connector	IEC-320 C6 (3 Pin Clover Inlet) (Not Included)
Operation Indicator	1 LED (blue)
Operating Temperature	-25deg C to +50deg C
Operating Humidity	5% to 95% non-condensing
Storage Temperature	-30deg C to +70deg C
