PoE World PoE-Detector Universal PoE Detector
Features

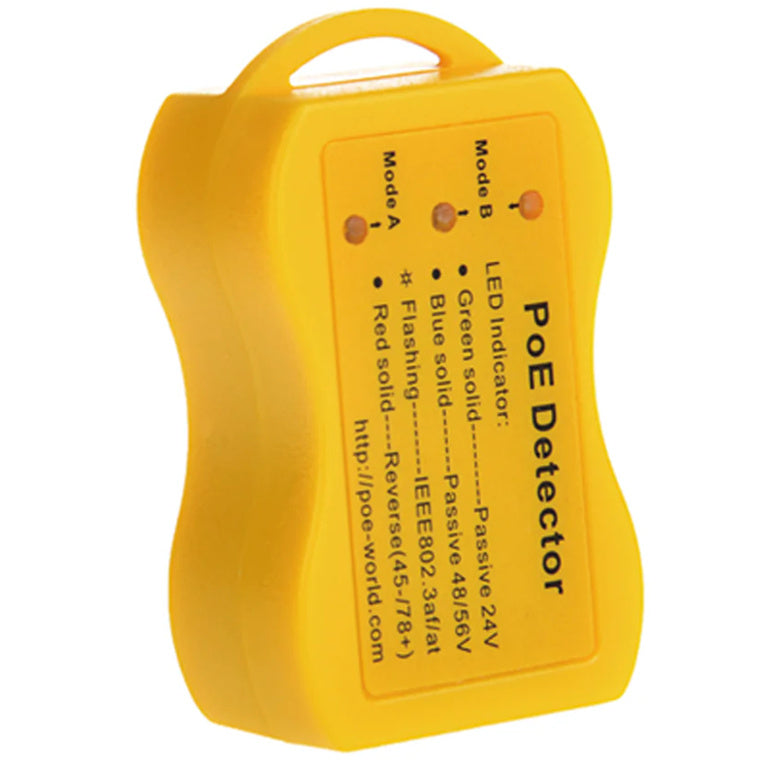

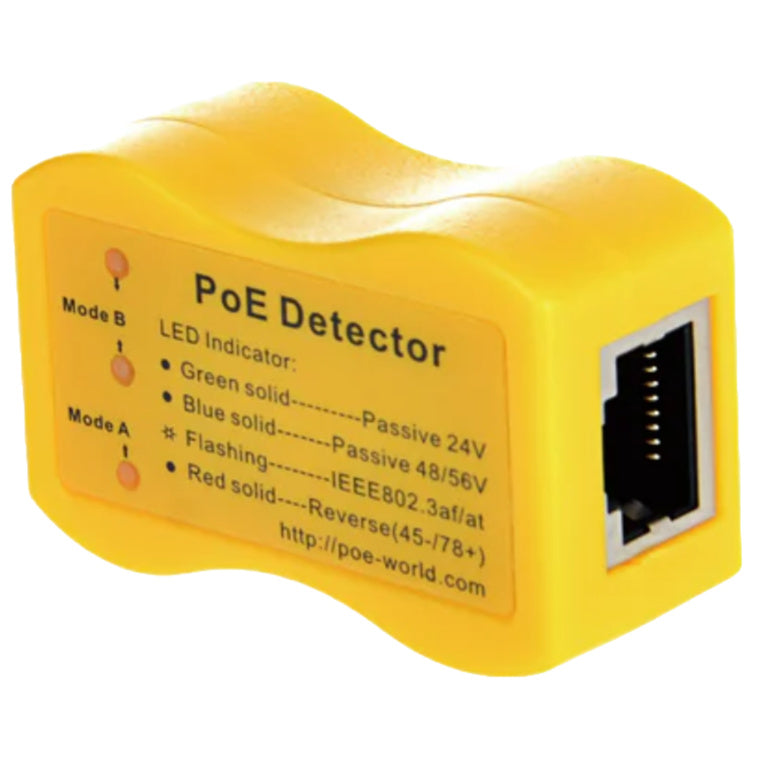

This device reports the type of PoE that is on an Ethernet cable via LED indicators. With this keychain device, you can quickly find out what PoE method is available along with the approximate voltage, pinout and polarity.
You can use it with passive injectors, 802.3af, 802.3at, 802.3bt with 568A, 568B standards or reverse PoE polarity. Mode A and Mode B PoE is supported. If you are far from the PoE switch or injector - this convenient device will show if a port has power.
- Use with any passive injector - 802.3af/at/bt
- Supports both Mode A and Mode B
- Bright LED displays
- Power only device, no data
Specifications
Technical Specifications
| Brand | PoE World |
|---|---|
| Manufacturer Part Number | PoE-Detector |
| Maximum Input Voltage | 56 volts |
| Internal Power Use | 50 mw |
| Operating Temperature | 0°C - 50°C |
| Dimensions | 101.6 x 101.6 x 50.8 mm |
| Weight | 5 ounces |
| Brand | PoE |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.1 kg |
| Warranty |
|---|
