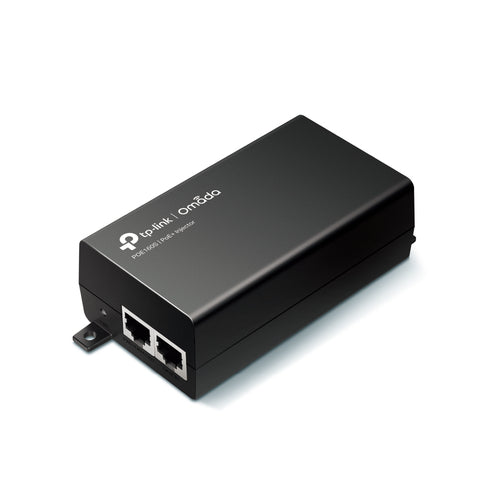

POE160S - TP-Link PoE160S Power Over Ethernet Injector Adapter PoE+
You May Also Like
TP-Link TL-POE260S - TP Link TL-POE260S, 2.5G PoE+ Injector
TP-Link TL-POE260S - TP Link TL-POE260S, 2.5G PoE+ Injector
TP-Link TL-POE260S - TP Link TL-POE260S, 2.5G PoE+ Injector
TP-Link TL-POE260S - TP Link TL-POE260S, 2.5G PoE+ Injector
Features
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation requires no configuration
- Integrated power supply

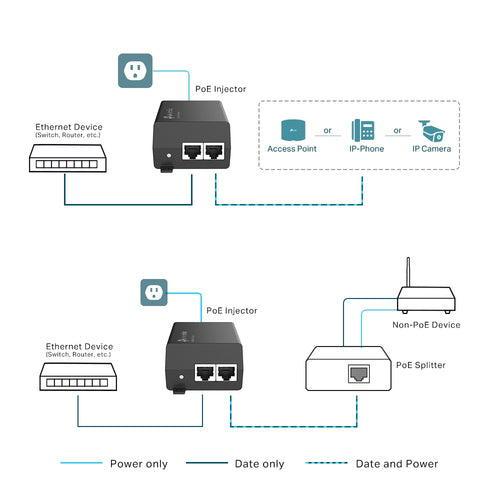

Connects to 802.3 at/af PoE Devices
TL-PoE160S converts a non-PoE gigabit port to a PoE gigabit port and supplies power and data via a single ethernet cable.
Works with PoE Splitter
Works with a PoE splitter to expand your network to areas with no power lines or outlets.

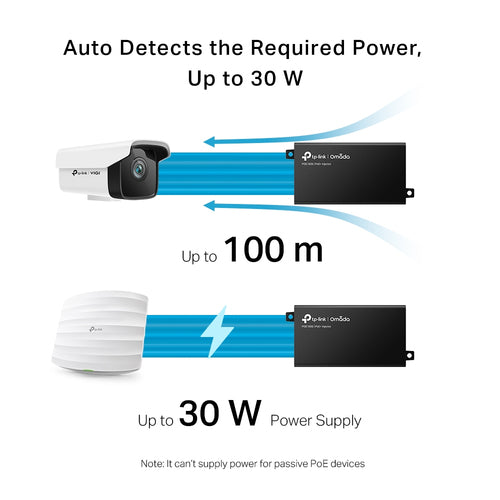

Auto Detects Power
With auto detect technology, TL-PoE160S determines and delivers the exact power supply to your devices with up to 30W power output and backwards compatibility for 802.3af PoE (15.4W) devices.
Long Range Transmission
Deliver power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Flexible Mounting Options
The convenient wall-mounting design saves space for a simple installation.
Cable included
An ethernet cable is included in the package.
Specifications
Technical Specifications
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
|---|---|
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F)Storage Temperature: -40°C to 70°C (-40°F to 158°F)Operating Humidity: 10% to 90%RH non-condensingStorage Humidity: 5% to 90%RH non-condensing |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)EIA/TIA-568 100O STP (maximum 100 m)100BASE-TX: UTP category 5, 5e cable (maximum 100 m)EIA/TIA-568 100O STP (maximum 100 m)1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |

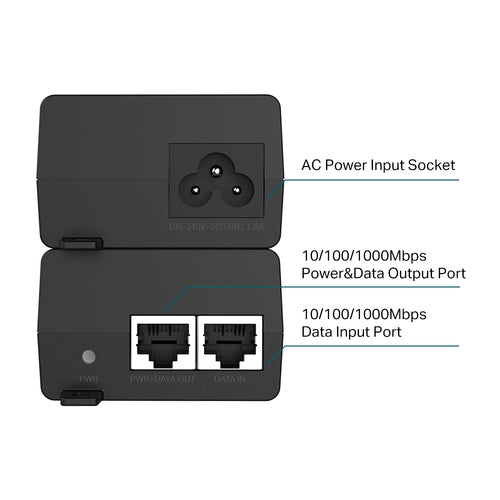

| Ports | 1 10/100/1000Mbps RJ45 data-in port1 10/100/1000Mbps RJ45 power+data-out port1 AC socket |
| Power Consumption | Input: 100-240 V, 50/60 HzOutput: Auto-determine the necessary power requirements (max. 30 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at PDAuto-determine the necessary power requirementsWall-mounting and desktop installation supportedPlug-and-Play |
| LED Indicator | ON: Supplying power normallyOFF: No power supply |
| Dimensions ( W x D x H ) | 4.9*2.3*1.4 in (125*59.4*36.8 mm) |
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Network Accessories > PoE Injectors |
| Weight | 0.5 kg |
| Warranty |
|---|
