POE260S - TP-Link PoE260S Power Over Ethernet Injector Adapter 2.5Gb PoE+
Features

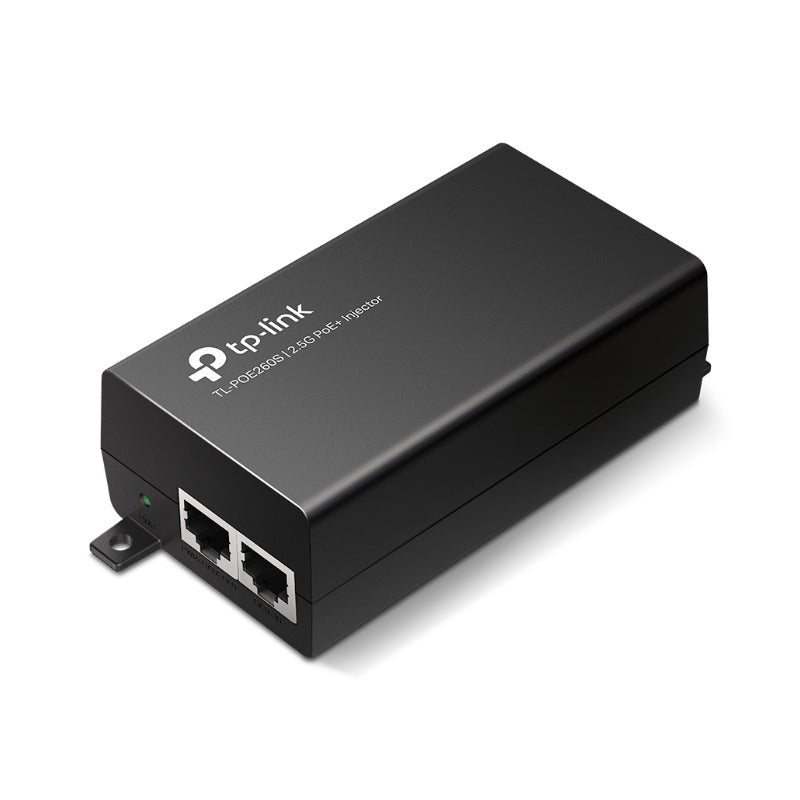

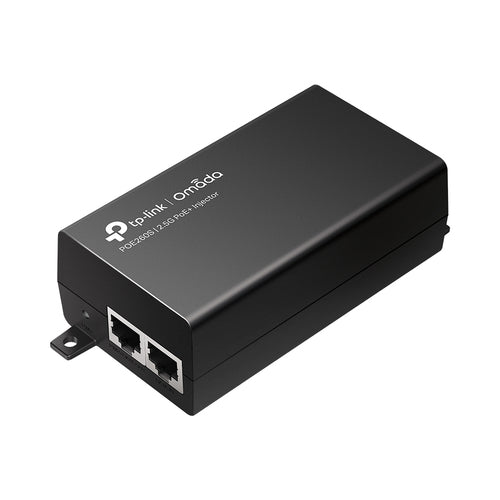

TL-POE260S
2.5G PoE+ Injector
- 2*2.5 Gbps ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
What This Product Does

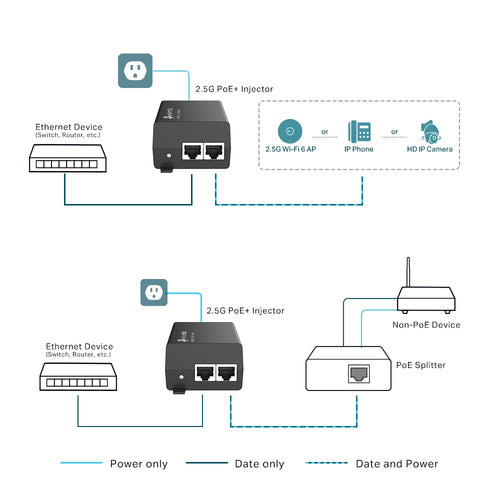

The 2.5G PoE+ Injector TL-POE260S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or other equivalent products, to expand your network to where there are no power line or outlet, where you wish to fix device such as 2.5G AP, HD IP Camera or IP Phone, etc.
Specifications
Technical Specifications
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at |
|---|---|
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F)Storage Temperature: -40°C to 70°C (-40°F to 158°F)Operating Humidity: 10% to 90%RH non-condensingStorage Humidity: 5% to 90%RH non-condensing |
| Package Contents | - 2.5Gbps PoE+ Injector TL-POE260S- Installation Guide- Power Cord- RJ45 Cable- Wall Mounting Kits |
| Network Media | - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)EIA/TIA-568 100O STP (maximum 100 m)- 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)EIA/TIA-568 100O STP (maximum 100 m)- 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)- 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m) |

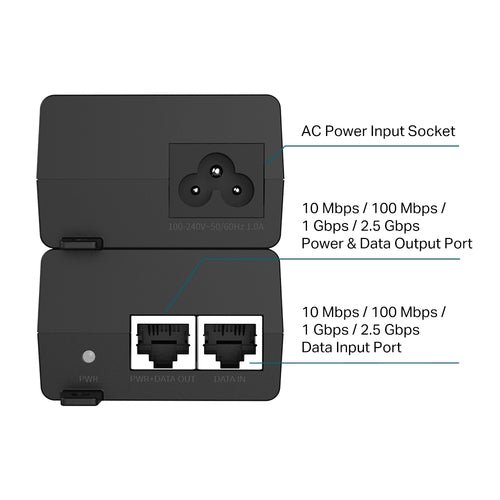

| Ports | - 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port- 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port- 1 AC socket |
| Power Consumption | Input: 100-240 V, 50/60 HzOutput: Auto-determine the necessary power requirements (max. 30 W) |
| Basic Function | - Auto-Sensing Algorithm enables providing power with 802.3af/at PD- Auto-determine the necessary power requirements- Wall-mounting and desktop installation supported- Plug-and-Play |
| LED Indicator | ON: Supplying power normallyOFF: No power supply |
| Dimensions ( W x D x H ) | 4.9*2.3*1.4 in (125*59.4*36.8 mm) |
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
| Warranty |
|---|
