Features
Capture audio anywhere with the Portacapture X6. The intuitive app-like operations on its color touch screen make it easy to record. State-of-the-art 96 kHz/32-bit float recording technology means that you can capture audio softer or louder than ideal, assuring that you will never miss that moment.
*Note : Only use AK-BT1 adapter.
This product not compatible with AK-BT2 adapter.
- Enjoy intuitive app-like controls on the X6, all using the large 2.4-inch touchscreen. Easy-to-use recording, pre-production and postproduction capabilities are just a touch away.
- Capture using up to 96 kHz, 32-bit float recording
- Record 6 tracks (4 track + 2 mix) simultaneously

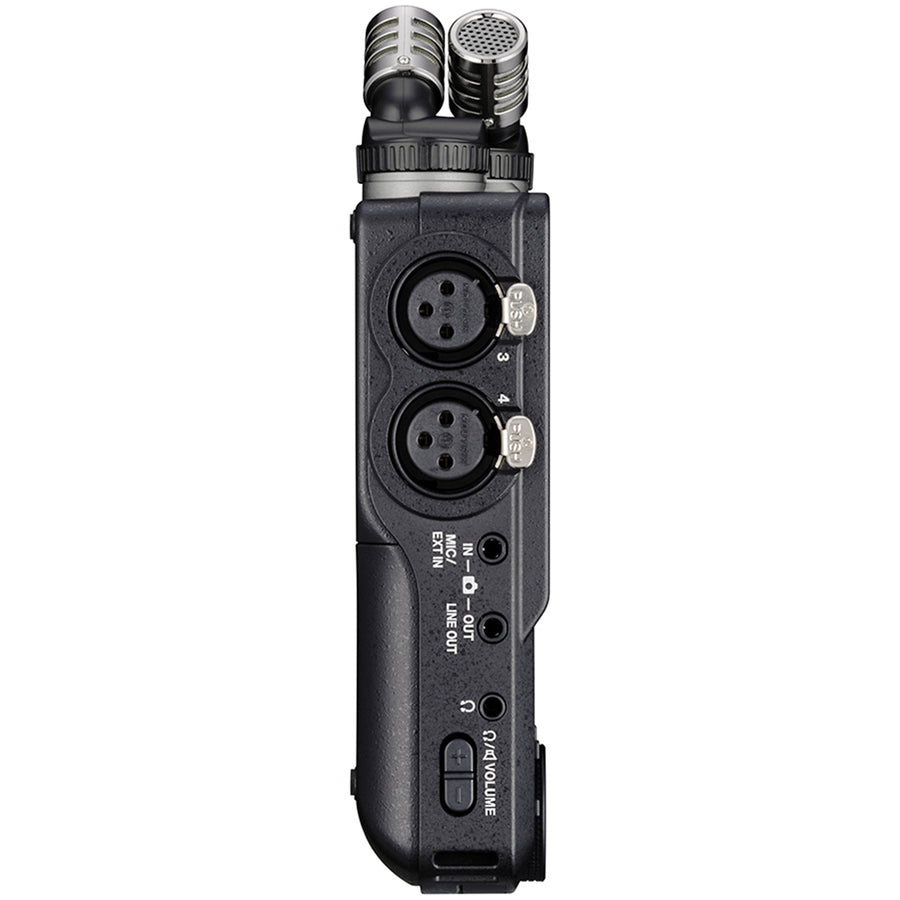

- 2 XLR inputs and dual built-in mics with switchable AB/true-XY patterns
- The 2 XLR input terminals are compatible with phantom power (24V/48V) to support recordings with multiple mic/line inputs
- Undistorted recording processing enables safe recording without lowering the S/N ratio with 32-bit float processing
- Equipped with a 6-in/2-out USB audio interface function
- Wireless remote control from smartphones/tablets is possible with the optional AK-BT1 Bluetooth® adapter (sold separately). Timecode sync is also possible via Bluetooth® (*Timecode sync supported from V1.10 firmware update)

App-Like Operation

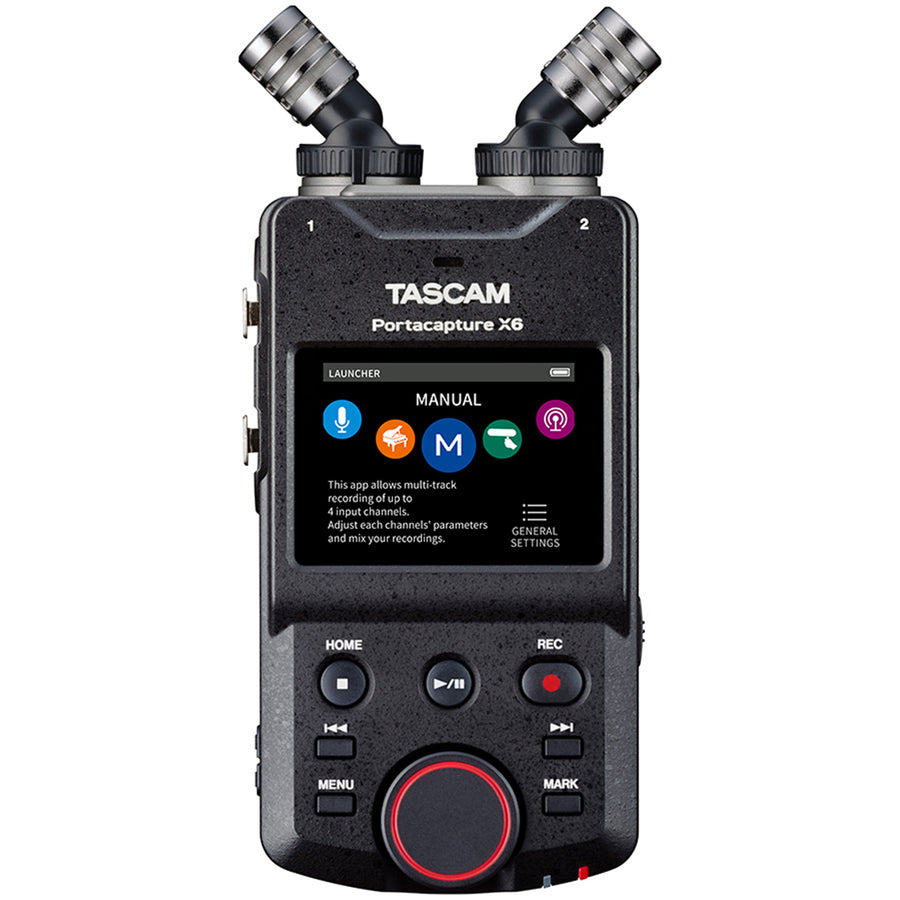

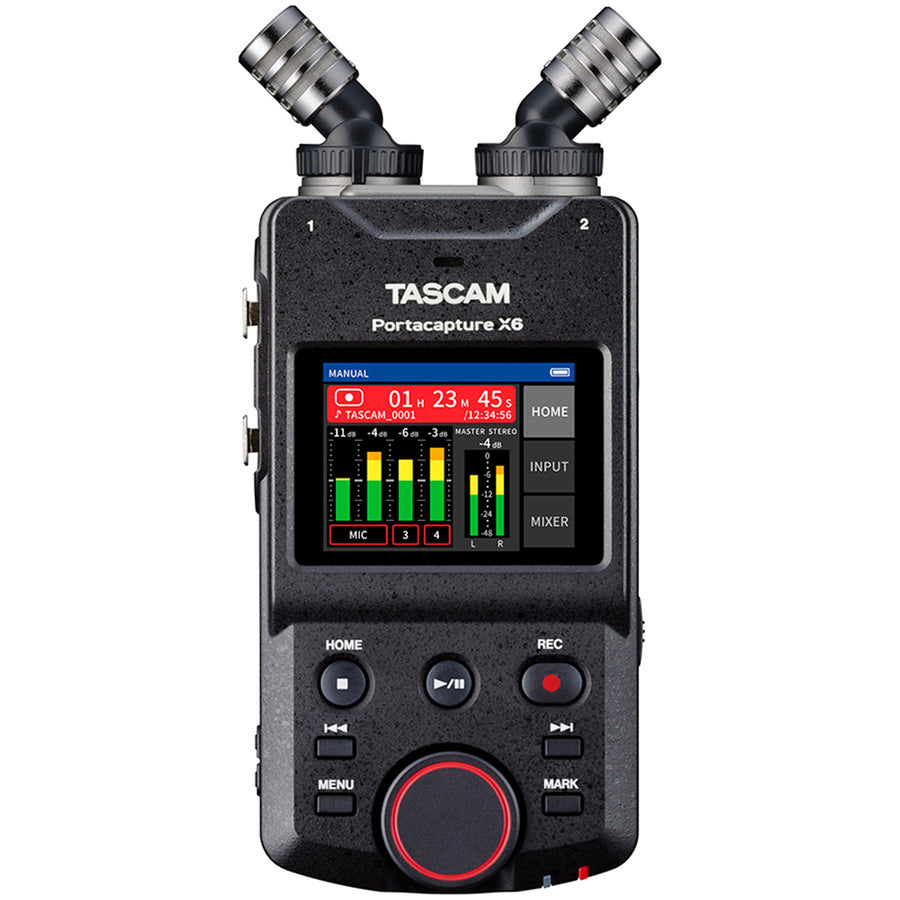

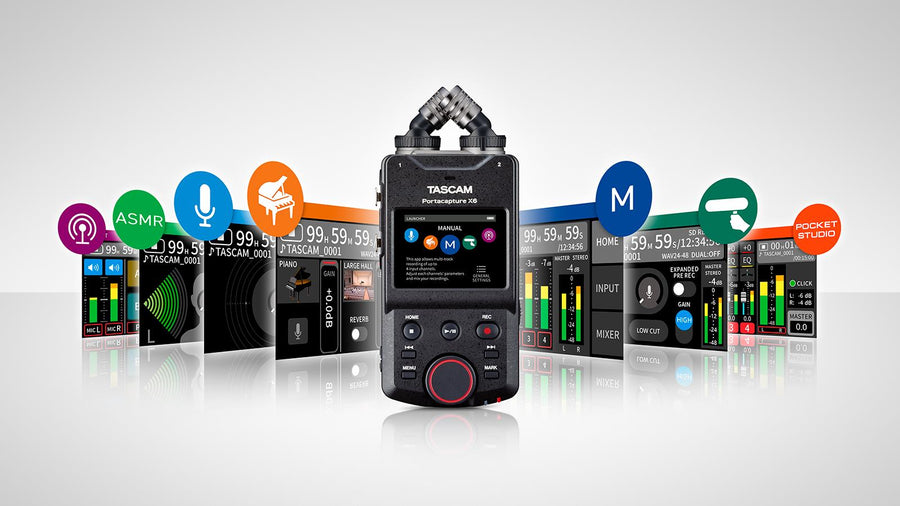

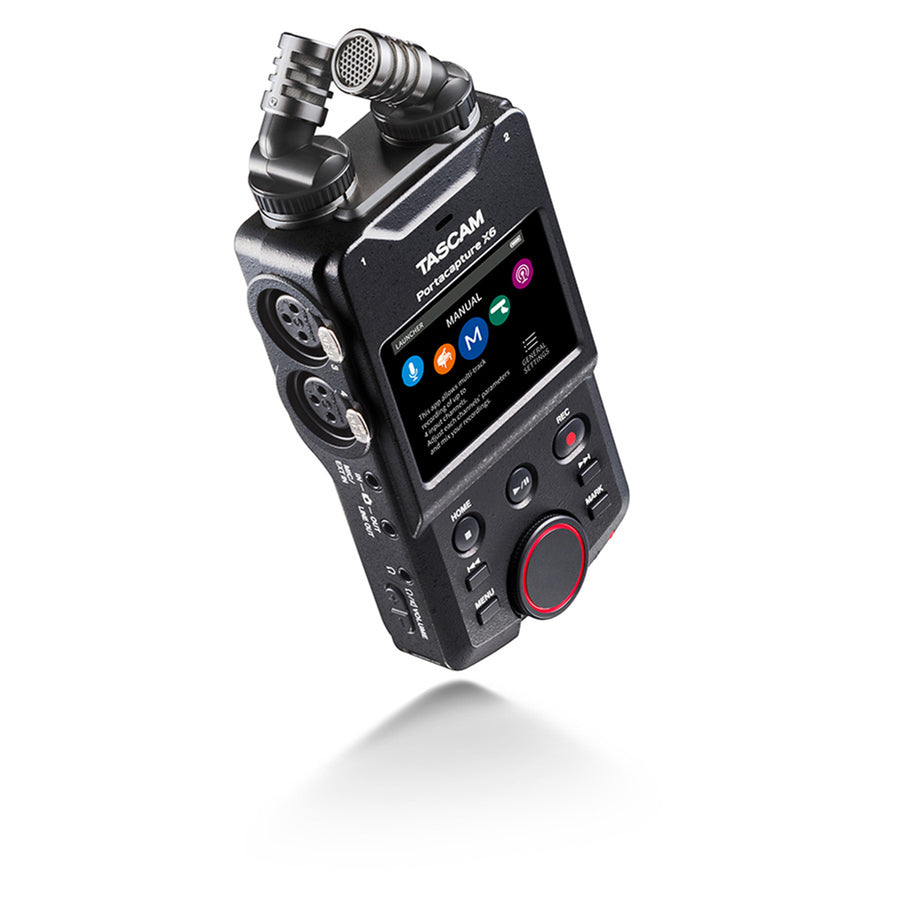

Quickly access your settings and adjustments on the Portacapture X6's large (2.4-inch) color touchscreen. With the easy-to-navigate interface and helpful tools, you are just a few taps from the perfect setting for your needs. Use the Launcher to select from podcast, music, interviews, field recording and 6-track multi-track recording. Start fast, start right and get exactly what you need.
V2.00: A POCKETSTUDIO app has been added.

Audio for Video Production

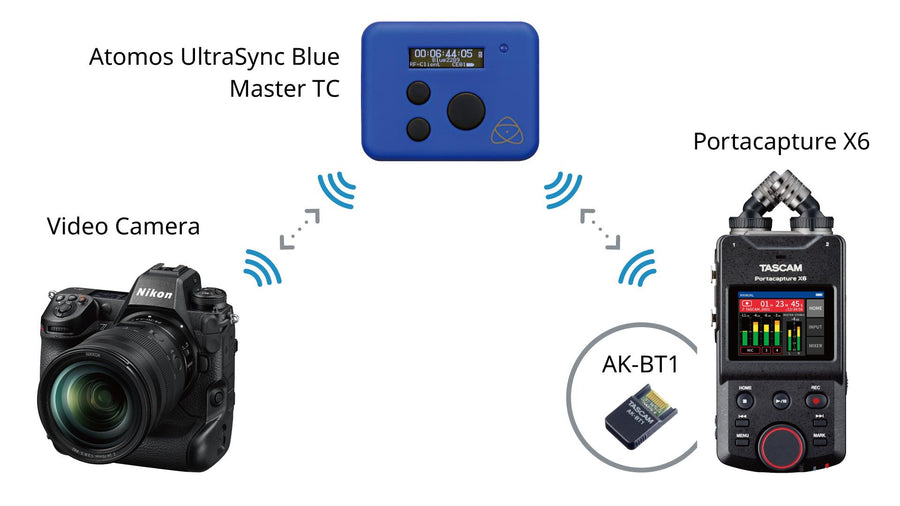

When shooting a video, you want to be able to focus on your video production and not worry about your audio. The Portacapture X6 was built with video production in mind. The workflow, presets and user-saved settings save you countless steps. The X6 has your back with its 96 kHz/32-bit float recording technology. Not only does this mean you will have the highest quality audio, but you will have a dynamic range that allows you to overcome those less-than-ideal realities that can often occur on a shoot. The X6 even gives you a time-code sync option* via Bluetooth® (with optional AK-BT1) allowing you to align your audio with your video, even when you have no audio on your camera. Upgrade your audio and reduce your worries with your own Portacapture X6.
*Support from firmware V1.10

Capture Your Way

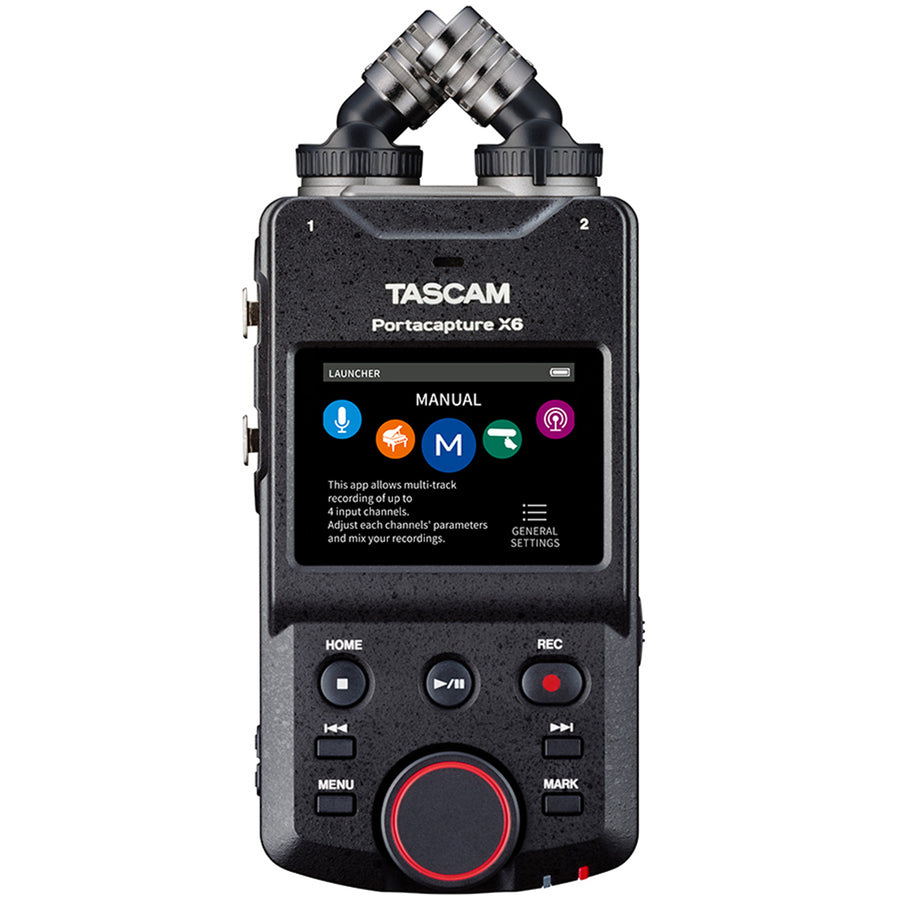

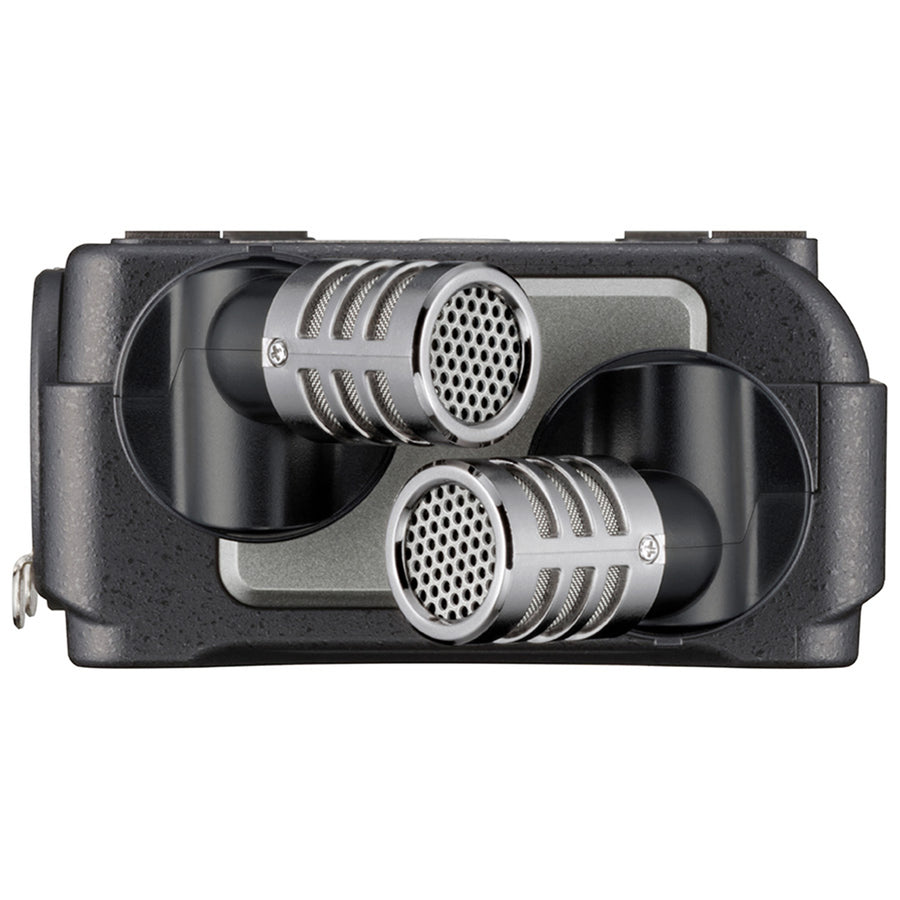

The Portacapture X6 is ready to record with a few quick taps. The internal high-quality stereo microphones can instantly rotate from A-B to a true X-Y mic pattern to allow for dialog or spatial music recording.
Have your own mics? Use those thanks to the two included XLR inputs or line level inputs. The mic preamplifiers are TASCAM HDDA (High Definition Discrete Architecture) - providing ultra-low noise and clean transparent audio based on over 50 years of TASCAM know-how.
Record 6 tracks (4 track + 2 mix) simultaneously and even use the X6 as your 6-in/2-out USB audio interface to connect to your computer

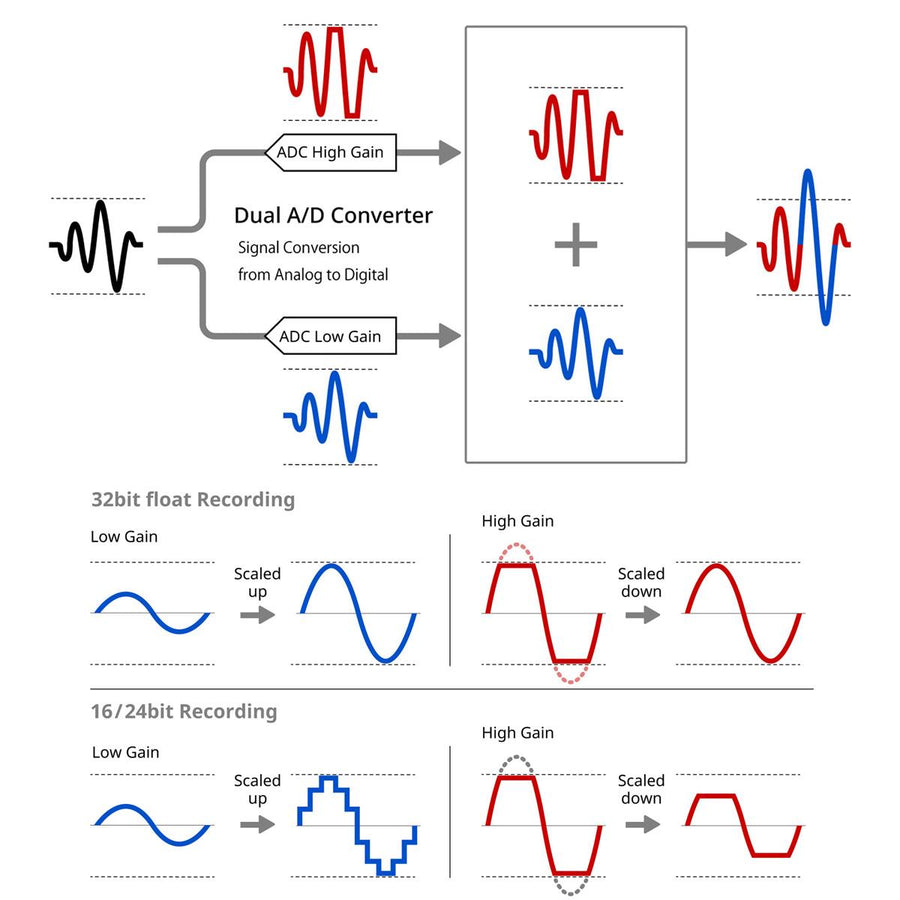

Dual ADCs and 32-bit Float Recording for Fast Setup and Worry-free Recording
Dual analog-to-digital converters combined with 32-bit float recording insure the easiest and highest quality recording in its price class. The 32-bit float point recording technology in the Portacapture X6 gives you a much lower floor and higher ceiling including maximum dynamic range to achieve audio success. You could use another audio recorder without this best-in-class recording 32-bit float and dual ADC technology, but should you?

Control the X6 From Your Phone

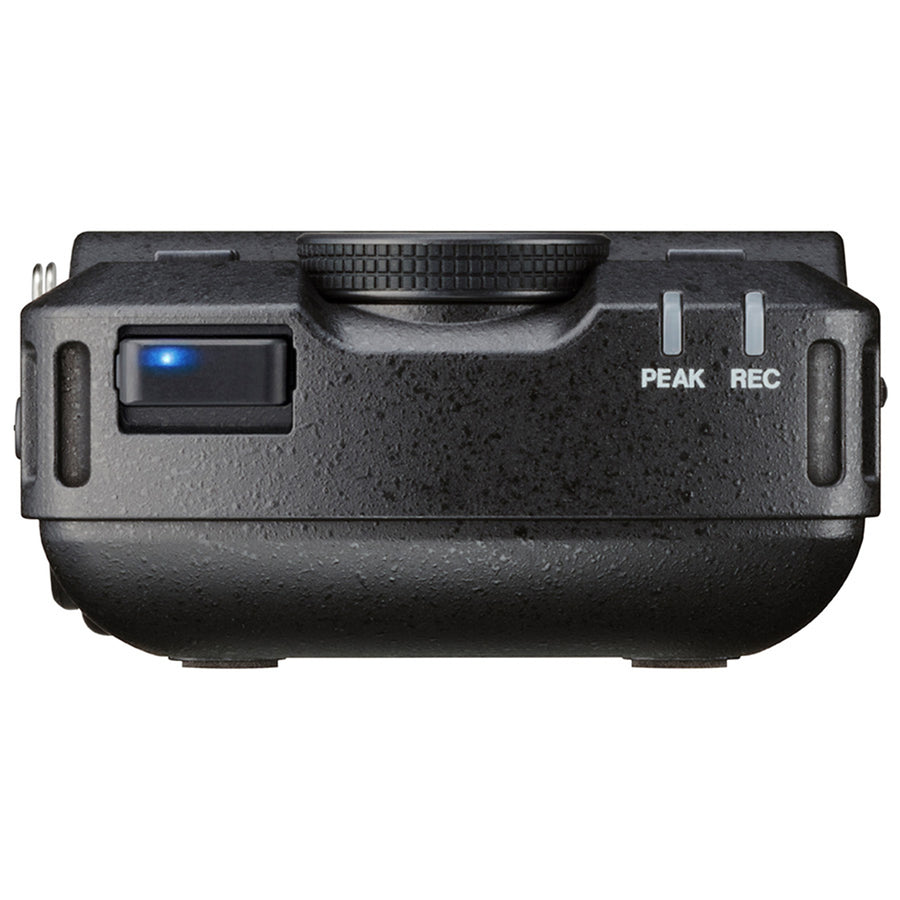

In those cases where you want to put your audio recorder in one place and operate it from another, the X6 has you covered. With the AK-BT1 Bluetooth® adapter (sold separately) and free Portacapture Control app, it's easy to remote control your X6 wirelessly from your smartphone or tablet. Imagine the possibilities!
Ready-To-Publish Audio Anywhere
With the Portacapture X6's your audio will be ready to share. Built-in signal processing, including a compressor, limiter, high pass filter, EQ, and reverb, add that studio polish. Whether you need to tame the wind when recording outside or want to add the ambiance of reverb to your vocals, the X6 has you covered. From smoothing out your input to preventing extreme peaks or eliminating plosives in dialog, you can count on the Portacapture X6.

Your Virtual Audio Engineer
The TASCAM proprietary Auto File Save System avoids losing your important data during recording. Files are saved approximately every 20 seconds during recording, so data loss due to unexpected power supply interruptions are kept to a minimum.
Specifications
Technical Specifications
| Recording media | microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (48GB - 512GB)*Class 10 or higher required |
|---|---|
| Recording / playback formats | WAV (BWF): 44.1k/48k/96kHz, 16/24-bit, 32-bit floatMP3: 44.1k/48kHz, 128k/192k/256k/320kbps |
| Number of channels | Input channels: 4 channels maximumRecording tracks: 6 tracks maximum (4 tracks, stereo mix) |
| Mic inputs (balanced) | Input jacks 3-4 (when INPUT SELECT set to MIC) |
| Connectors | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Note | supports phantom power only when MIC input selected |
| Input impedance | 2.2kΩ or higher |
| Maximum input level | +2dBu |
| Minimum input level | -75dBu |
| Connectors | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Input impedance | 9kΩ or higher |
| Nominal input level | +4dBu (GAIN setting at minimum) |
| Maximum input level | +24dBu |
| Minimum input level | -53dBu |
| Connectors | 3.5mm (1/8") stereo mini jack |
| Input impedance | 10 kΩ or higher (when plug-in power is off)1.8 kΩ or higher (when plug-in power is on) |
| Nominal input level | -20 dBV (GAIN setting at minimum) |
| Maximum input level | 0 dBV |
| Minimum input level | -67 dBV |
| Line output (unbalanced) | LINE OUT jack |
| Connectors | 3.5mm (1/8") stereo mini jack |
| Output impedance | 210Ω |
| Nominal output level | -14dBV |
| Maximum output level | +6 dBV |
| Headphone output | headphone jack |
| Connectors | 3.5mm (1/8") stereo mini jack |
| Maximum output | 45mW + 45mW (THD+N 0.1% or less, into 32 Ω load) |
| Working impedance | 16ohms to 400ohms |
| Built-in speaker | 0.4 W (mono) |
| Port | USB Type-C |
| Transfer mode | USB 2.0 Hi-Speed |
| Device classes | mass storage, USB audio 2.0 (USB class compliant) |
| Sampling frequencies | 44.1, 48, 96 kHz |
| Quantization bit depth | 24-bit |
| Number of input channels | 6 (output from unit) |
| Number of output channels | 2 (input to unit) |
| Bluetooth device connector | For Bluetooth adapter (AK-BT1) only |
| iOS/iPadOS devices | iOS 16/iPadOS 16, iOS 15/iPadOS 15, iOS 14/iPadOS 14 |
| Android devices | Android 11, Android 10 |
| Note | Compatibility has been confirmed, but this does not guarantee operation with all devices. |
| Power | 4 AA batteries (Alkaline, Ni-MH or Lithium-ion)USB bus power from a computerTASCAM PS-P520U AC adapter (sold separately) |
| Power consumption | 7.5W (maximum) |
| Dimensions | 75 x 174.3 x 37.2 mm (Wx Hx D, excluding protrusions) |
| Weight | 365/265g (with/without batteries) |
| Operating temperature range | 0 - 40°C |
| Included Items | Portacapture X6 x 1AA alkaline batteries x 4Owner's Manual (including warranty) x 1TASCAM ID registration guide x 1 |
| Using alkaline batteries (EVOLTA) | Input through inputs 1-2, Phantom power not used, 44.1kHz stereo WAV (BWF), 24-bit recording, POWER SAVE MODE on: About 13.5 hoursInput through inputs 1-2 and input jacks 3-4, (using phantom power: +48V, 3mA×2 load), 44.1kHz stereo WAV (BWF), 24-bit recording, POWER SAVE MODE off: About 5.5 hours |
| Using Ni-MH battery (eneloop) | Input through inputs 1-2, Phantom power not used, 44.1kHz stereo WAV (BWF), 24-bit recording, POWER SAVE MODE on: About 11 hoursInput through inputs 1-2 and input jacks 3-4, (using phantom power: +48V, 3mA×2 load), 44.1kHz stereo WAV (BWF), 24-bit recording, POWER SAVE MODE off: About 5.5 hours |
| Using lithium-ion batteries (Energizer Ultimate Lithium) | Input through inputs 1-2, Phantom power not used, 44.1kHz stereo WAV (BWF), 24-bit recording, POWER SAVE MODE on: About 22 hoursInput through inputs 1-2 and input jacks 3-4 (using phantom power: +48V, 3mA×2 load), 44.1kHz stereo WAV (BWF), 24-bit recording, POWER SAVE MODE off: About 11.5 hours |
| Note | When using phantom power, the operation time might be reduced depending on the mic being used. |
| Mic amp EIN (equivalent input noise) | Input jack 3-4 (MIC IN): -125 dBu or less |
| Frequency response | Input jacks 3-4 to PCM data:20Hz - 20kHz at 48kHz: +0/-0.3dB (JEITA)20Hz - 40kHz at 96kHz: +0/-0.7dB (JEITA) |
| Dynamic range | Input jacks 3-4 to PCM data (20kHz SPCL LPF, A-weighting):112dB or higher (at 48kHz)112dB or higher (at 96kHz) |
| Total harmonic distortion ratio (THD+N) | Input jacks 3-4 (LINE IN) to PCM data, 1kHz sine wave, −5 dBFS input, GAIN at minimum, 20kHz SPCL LPF: 0.008% or lessInput jacks 3-4 (MIC IN) to PCM data, 1kHz sine wave, −5 dBFS input, GAIN at minimum, 20kHz SPCL LPF: 0.006% or less |
| Windows | Windows computer with a USB 2.0 (or higher) |
| Mac | Mac with a USB 2.0 (or higher) |
