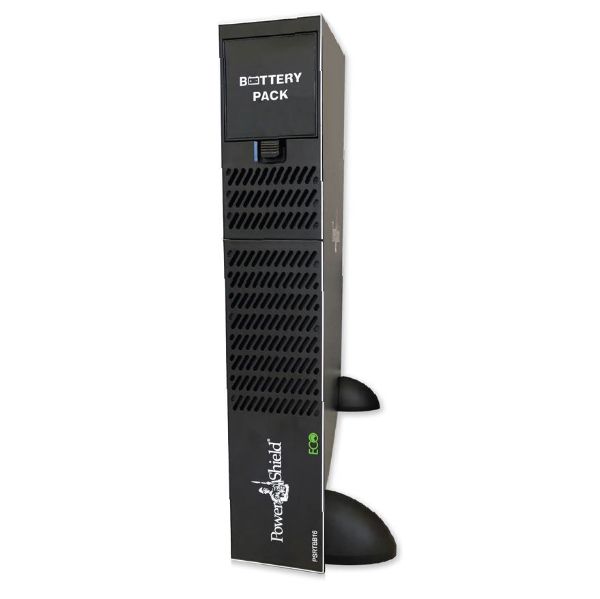

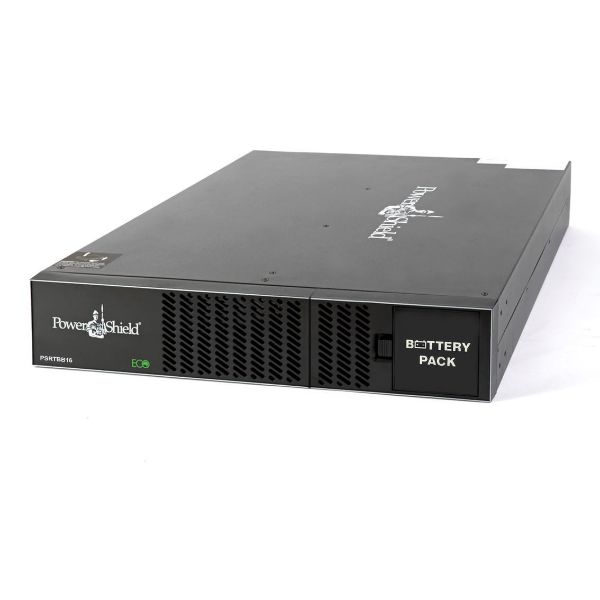

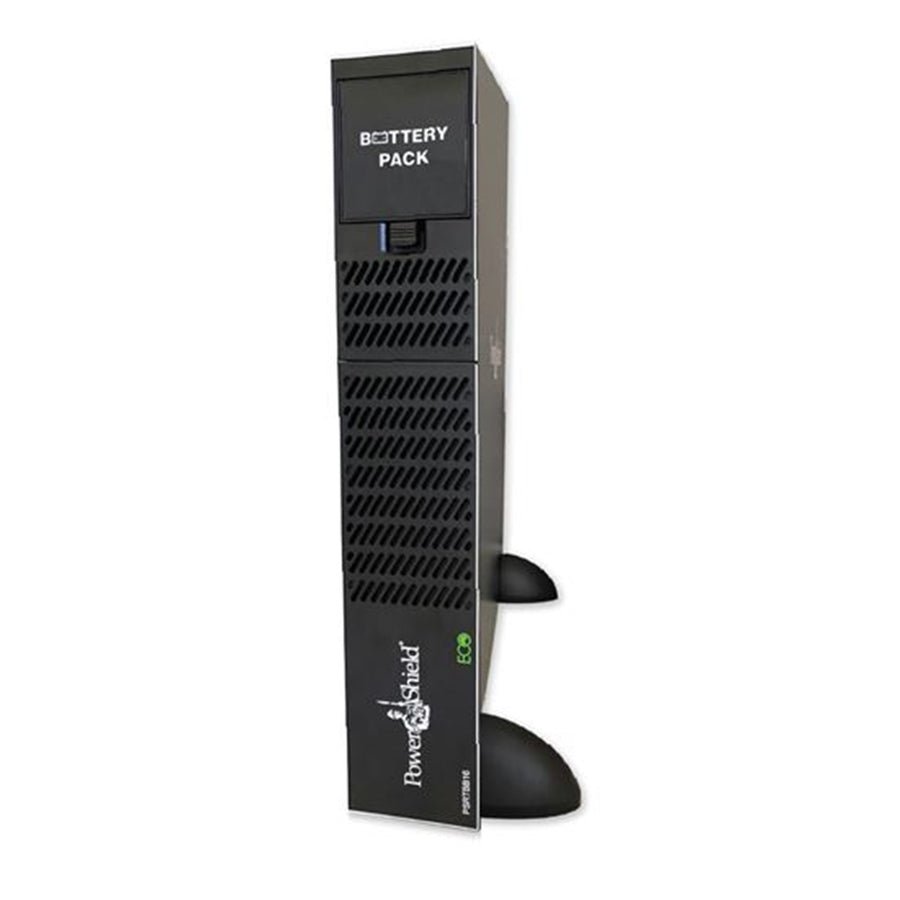

POWERSHIELD PSRTBB16 - Rack/Tower (2RU) Battery bank Includes 16x 12v For PSCERT6000L & PSCERT10KL
Features
The Centurion RT features true online double conversion. As our highest single phase power density UPS, this sophisticated range will provide the most comprehensive protection for mission critical devices such as sensitive networks, computers, servers, telecom applications, as well as industrial applications.
Meticulously developed by PowerShield engineers to be a world leading technology UPS, the Centurion RT addresses absolutely all requirements and features as has been demanded by the sophisticated Australian power consumer and hence stands in a class of its own, as a world leading UPS technology.
- Exceptional surge protection
- Unity Output power factor (PF=1)
- Informative & easy-shift LCD display
- Rack/Tower design
- Emergency Power Off Function (EPO)
- ECO & advanced ECO mode
- Standard extra large charger
- Hot swappable batteries
Specifications
Technical Specifications
| Voltage Range | Line Loss 110~300Vac @ (0~60%) Load; 140~300V @ (60~80%) Load; 176~300Vac @ (80~100%) LoadLow Line Comeback Low Line Loss Voltage + 10VHigh Line Comeback High Line Loss Voltage - 10V |
|---|---|
| Frequency Range | 46Hz ~ 54 Hz @ 50Hz system; 56Hz ~ 64 Hz @ 60Hz system |
| Phase | Single phase with ground |
| Input Power Factor Correction | Less than or Equal to 0.99 @ nominal voltage (100% load) |
| Output Voltage | 208 / 220 / 230 / 240VAC AC Selectable |
| AC Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 46Hz ~ 54 Hz @ 50Hz system56Hz ~ 64 Hz @ 60Hz system |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
| Overload | AC Mode 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1secBattery Mode 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec |
| Current Crest Ration | 3:1 Max |
| Harmonic Distortion | Less than or Equal to 1 % @ 100% Linear Load; 4% @ 100% Non-linear Load |
| Transfer Time | Line to Battery 0 msInverter to Bypass 0 msInverter to Eco < 10 ms |
| AC Mode | > 94% |
| Battery Mode | > 93% |
| Battery Type | Depending on applications |
| Battery Number | Optional strings of 16 or 20 batteries |
| Typical Recharge Time | According to external battery pack |
| Charging Current (max.) | 4 A ± 10% |
| Interface | USB and RS232 as standard |
| Software | PowerShield® NetGuard® software - supports Windows, Linux, Unix and Mac based operating systems |
| Optional | Intelligent slot for PSSNMPV4, PSModbus or PSAS400 dry contact |
| Temperature | 0 ~ 40°C |
| Humidity | 95% (RH Non-condensing) |
| Altitude | <1000m |
| Brand | POWERSHIELD |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution |
| Weight | 25.624 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
