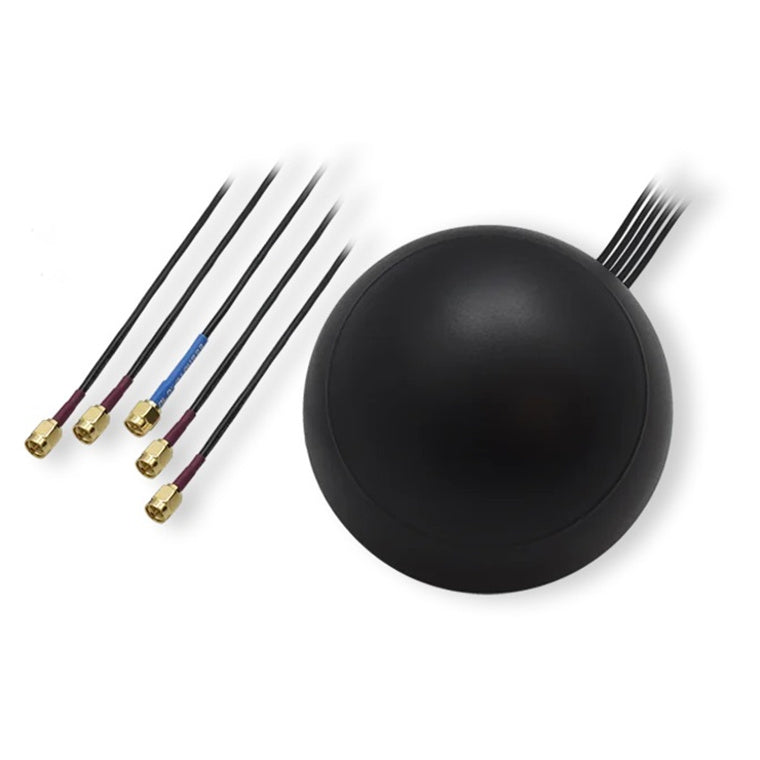

PR1KCO28 - Teltonika Combo MIMO 4G LTE Mobile/GNSS/WIFI Roof SMA Antenna

SKU: PR1KCO28 ● In Stock

$140.76

Free shipping over $299 Genuine product 7-day returns

PR1KCO28 - Teltonika Combo MIMO 4G LTE Mobile/GNSS/WIFI Roof SMA Antenna

Features

Teltonika Combo MIMO Mobile/GNSS/WIFI Roof SMA Antenna

Specifications

Technical Specifications

Manufacturer Product Code	PR1KCO28
GNSS Antenna Frequency Range	1575.42-1610 MHz
GNSS Antenna Polarization	RHCP
GNSS Antenna Impedance	50 Ohm
GNSS Antenna LNA Gain	28±2 dB
GNSS Antenna LNA Noise Figure	< 1.5 dB
GNSS Antenna Supply Voltage	3-5 VDC
GNSS Antenna Current Consumption	< 15 mA
GNSS Antenna LNA V.S.W.R	<2.0
GNSS Antenna Connector	SMA Male
LTE MIMO Antenna Frequency Range	698-960/1710-2690 MHz
LTE MIMO Antenna Polarization	Linear
LTE MIMO Antenna Gain	3 dBi
LTE MIMO Antenna V.S.W.R	< 3.0
LTE MIMO Antenna Impedance	50 Ohm
LTE MIMO Antenna Connector	2x SMA Male
WiFi MIMO Antenna Frequency Range	2400-2483.5/4900-5825 MHz
WiFi MIMO Antenna Polarization	Linear
WiFi MIMO Antenna Gain	2 dBi
WiFi MIMO Antenna V.S.W.R	<2.5
WiFi MIMO Antenna Impedance	50 Ohm
WiFi MIMO Antenna Connector	2x RP SMA Male
Mounting Method	Screw
Radome Ingress Protection rating	IP67
Radome Material	ABS
Weight	<550g
Housing Dimensions	110x55 mm
Cable	5x RG174, 3000 mm
RoHS Compliant	Yes
