Teltonika

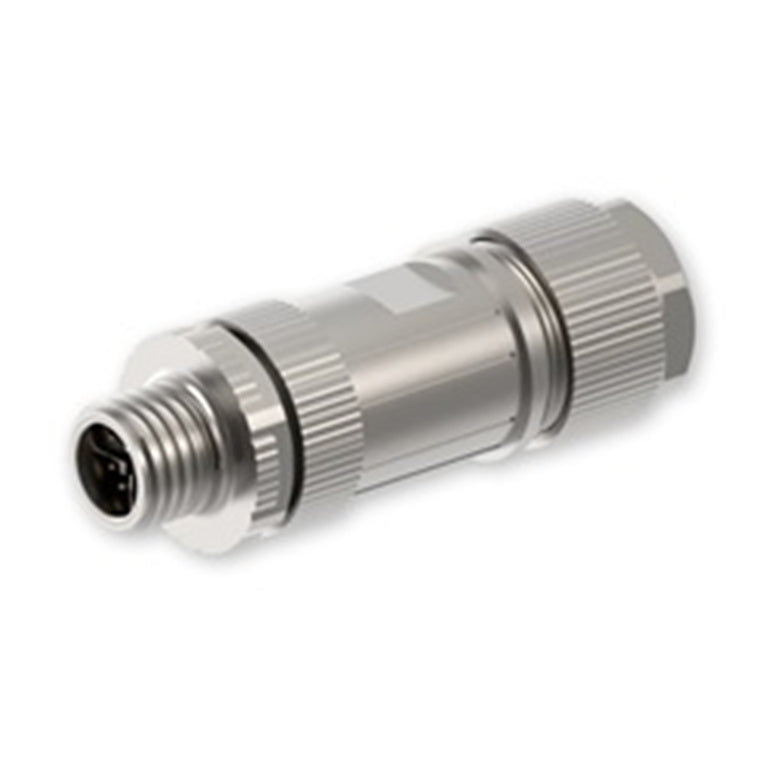

PR40118K - Teltonika M12 X Type 8-PIN male connector
$49.56
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Teltonika PR40118K M12 X Type 8-PIN male connector.
It is compatible with ATRM50 Transportation Router.
Specifications
Technical Specifications
| Voltage rating | 48V AC / 60V DC |
|---|---|
| Current carrying capacity | 0.5 A |
| Conductor cross section, solid wire | AWG 26/1 - AWG 22/1 |
| Conductor cross section, stranded wire | AWG 26/7 - AWG 22/7 |
| Temperature range | -40 °C to +85 °C |
| Mounting method | Screwable (M12) |
| Insertion and withdrawal force | ≤ 30 N |
| Life - number of mating cycles | ≥ 100 |
| IP rating | IP67 (when plugged in) |
| Housing material | GD-Zn (zinc die-cast) |
| Contact material | CuZnPb (brass) |
| Contact finish material | Ni + Au (nickel-gold) |
| Shield material | CuSn (tin bronze) |
| Shield finish material | Sn (tin) |
| Stuffer cap material | PA |
| Finish material | Ni (nickel) |
| Weight | 47 g |
| RoHS | Yes |
| REACH | Yes |
| Brand | Teltonika |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
| Warranty |
|---|
