CyberPower Systems PR750ELCDRT1U - PRO Rack Series LCD 750VA/500W 1U Line Interactive UPS Hardware
Features
CyberPower PR750ELCDRT1U - Rackmount Line-Interactive UPS 750 VA / 500 W
The Professional Rackmount LCD Series provides an advanced level of power protection to mission-critical servers, telecom equipment, VoIP and internet working hardware. Featuring Pure Sinewave output and Automatic Voltage Regulation (AVR), it can stabilize the AC signal or deliver seamless power to connected equipment. The multifunctional LCD readout indicates critical power/battery conditions. The included PowerPanel(R) Business Edition management software provides a comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications. The patented GreenPower UPS(TM) technology can reduce energy costs by up to 75% and dissipate 80% less heat than competitive models. An optional SNMP/HTTP Remote Management Capabilities enables remote management of the system through a standard web browser.
Features & Benefits
1 U rack space
GreenPower UPS(TM) Technology: Energy-Saving UPS
Save up to 75 % of electricity
Pure Sine Wave output
Line-interactive Technology
Automatic Voltage Regulator (AVR)
PowerPanel(R) Business Edition software
Multiple outputs for multiple servers
Multiple communication interfaces
Programmable brownout and over-voltage protection
Microprocessor-based full digital control
EMI, RFI, Surge and spike protection
Scheduled shutdown
Auto restart/Auto charge
User-replaceable batteries
SNMP / HTTP Remote Management Capabilities (optional)
Critical load outlets
Metal housing

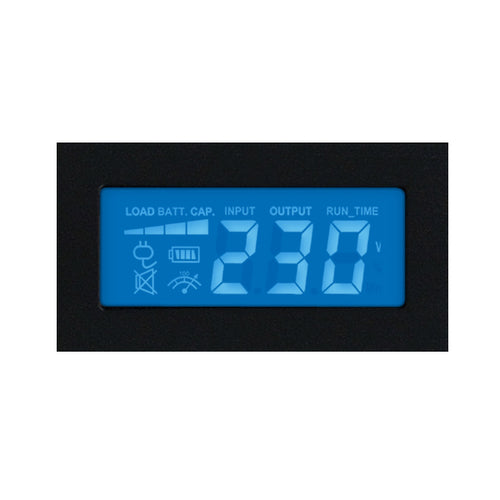

Multifunctional LCD readout
Audible alarms
Resettable Circuit Breaker
Hot-swappable battery packs
Emergency Power-Off (EPO) Port
Protected On/Off Switch
Specifications
Technical Specifications
| Capacity (VA / Watts): | 750 VA / 500 W |
|---|---|
| Energy-Saving Technology: | Yes |
| Input: | Voltage Range (adjustable): 150V - 300 V acFrequency Range: 50 / 60 Hz +/- 3 Hz (auto-sensing)Input Plug Type: IEC 320 C14 |
| Output: | UPS Outlets: (6) IEC 320 C13On Battery Output Voltage: Pure Sine Wave at 230 V ac +/- 5%On Battery Output Frequency: 50 / 60 Hz +/- 0.1 HzTransfer Time (typical): 4 msOverload Protection: Internal Circuitry Limiting/Circuit BreakerAVR: Buck/ Boost/ Double Boost |
| Surge Protection and Filtering: | Surge Protection: YesDSL/Phone/FAX/Modem Protection: N/A |
| Physical: | Maximum Dimensions (H x W x D)(mm): 44 x 430 x 490Weight (kg): 17.6 |
| Battery: | Sealed Maintenance Free Lead Acid Battery: 4x 6V 9 AHUser Replaceable: YesTypical Recharge Time: 6 HoursRuntimes:Half-Load/Full-Load(min.): 23/7 |
| Status Indication: | Indicators: Power On, Using Battery, AVR, Load Level, Battery LevelAudible Alarms: On Battery, Low Battery, OverloadMultifunctional LCD Display: Yes |
| Communication: | Power Management Software: PowerPanel(R) Business Edition |
| Management: | Self-Test: YesAuto-Charge/Auto-Restart: YesCOM Interface: YesUSB Interface: YesSNMP/HTTP Capable: Yes |
| Brand | CyberPower Systems |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 21.5 kg |
| Warranty |
|---|
