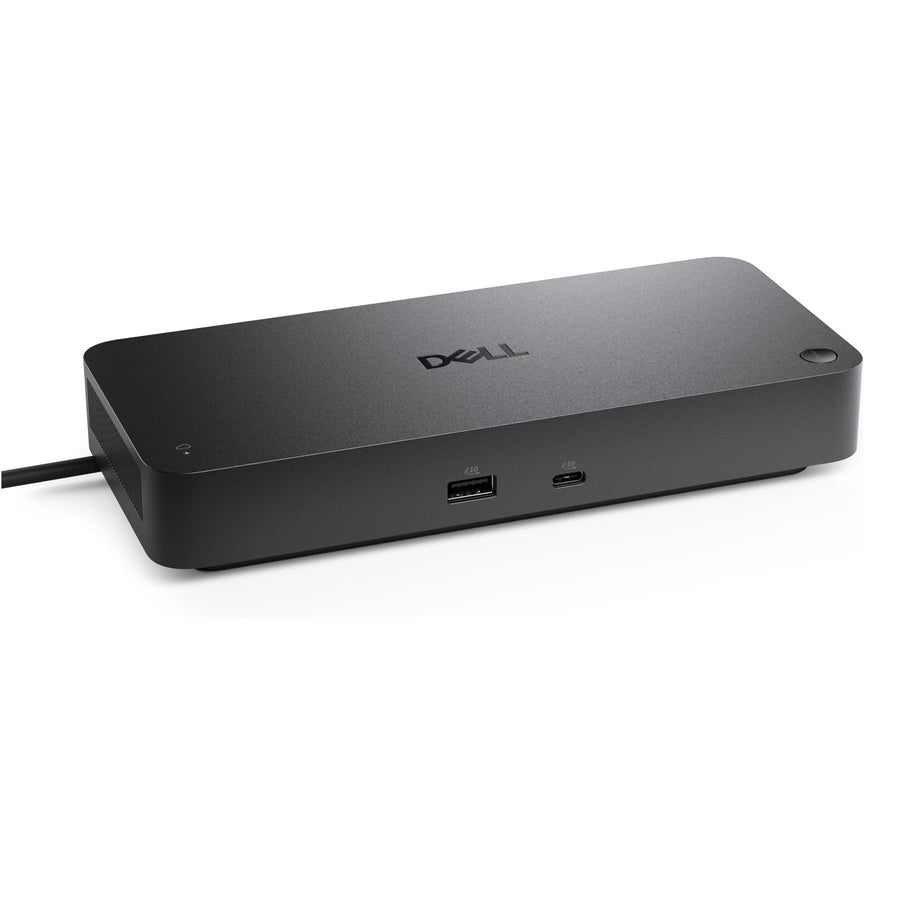

Dell 210-BSJB - PRO THUNDERBOLT 5 SMART DOCK SD25TB5
Features
Future-proof your productivity
Maximise your productivity on a Thunderbolt 5 smart dock, built for seamless multitasking using Gen AI tools across up to four 4K 120Hz displays. Featuring extended power range, this smart dock delivers up to 300W of power over a single USB-C cable to meet the demands of the highest performance AI PCs. Modern ports ensure a wide range of peripheral connectivity.

More manageable and secure
Elevate the IT management experience by directly managing your smart docks from the Dell Device Management Console - no PC connection or software required.
More manageable commercial dock
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.
More secure smart dock
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.
Effortless maintenance
Remotely configure, deploy and update Dell Pro Smart Docks over Wi-Fi* without the user connecting to a PC.
Unlock out-of-band management on select Intel vPro® PCs with Intel® Active Management Technology (Intel® AMT) over Thunderbolt from the connected dock.

Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable** that can be routed left or right.

Designed for sustainability
The Dell Pro Thunderbolt 5 Smart Dock is built with post-consumer recycled materials and packaged with recycled or renewable packaging.

Ports and slots


Note
* Via Dell Device Management Console.
** The accurate length of this cable is 0.83 meters. The image provided is for illustrative purposes only.
Specifications
Technical Specifications
| Connectivity Technology | Wired |
|---|---|
| Device Supported | Notebook |
| Cable Length | 83 cm |
| Features | LED Power IndicatorPower Delivery Pass-through |
| Number of Displays Supported | 4 |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Network & Communication | Ethernet Technology2.5 Gigabit Ethernet |
| Security Slot Type | Noble Wedge Security SlotKensington Security Slot |
| Power Delivery | 300W (Dell Systems)240W (non-Dell Systems) |
| Management Features | MAC Address Pass-throughPXE BootDock Power Button SyncWake-on-LANKernel Direct Memory Access (DMA) ProtectionIntel AMT over Thunderbolt with select Intel vPro PCsDell Command Update (DCU)Port DisablementWLAN to LAN Switch |
| Screen Mode Supported | 4K @ 120Hz8K @ 60Hz6K @ 60Hz5K @ 60Hz4K @ 60HzWQHD @ 60HzQHD @ 60Hz |
| Supported Resolutions | 7680 x 43206144 x 34565120 x 21603840 x 21603440 x 14402560 x 1440 |
| Power Delivery Details | 4 x USB-A 3.2 Gen 2 (4.5W each)1 x USB-C 3.2 Gen 2 (15W)1 x USB-C Multi-function DisplayPort (7.5W)2 x Thunderbolt 5 (15W each)All deliver power with or without PC |
| Video Resolution Details | 4K - 120 Hz (Triple Display)4K - 120 Hz (Quad Display)8K - 60 Hz (Single Display)6K - 60 Hz (Dual Display)4K - 60 Hz (Triple Display)4K - 60 Hz (Quad Display)5K - 60 Hz (Single Display)4K - 60 Hz (Dual Display)WQHD - 60 Hz (Triple Display)QHD - 60 Hz (Quad Display) |
| Host Interface | Thunderbolt 5 |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Number of USB Type-A Ports | 4 |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps) |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort | Yes |
| DisplayPort Version | 2.1 |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 2 |
| Operating System Supported | Windows 10Windows 11Ubuntu 24.04macOSRed Hat Enterprise Linux 9.7ChromeOS 141 |
| Maximum Power Supply Wattage | 330 W |
| Power Source Type | Power Adapter |
| Height | 205 mm |
| Width | 90 mm |
| Depth | 35.3 mm |
| Weight (Approximate) | 632 g |
| Brand | Dell |
|---|---|
| Product Type | Computers & Tablets > Docking Stations |
| Weight | 0.975 kg |
| Warranty |
|---|
