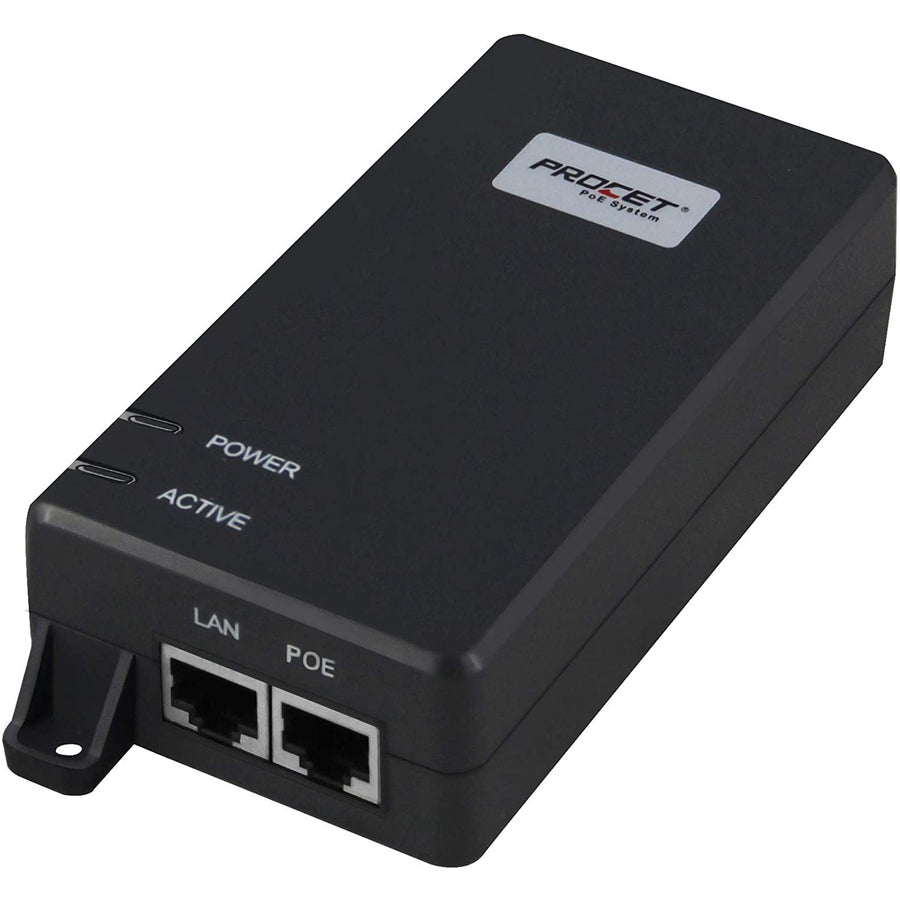

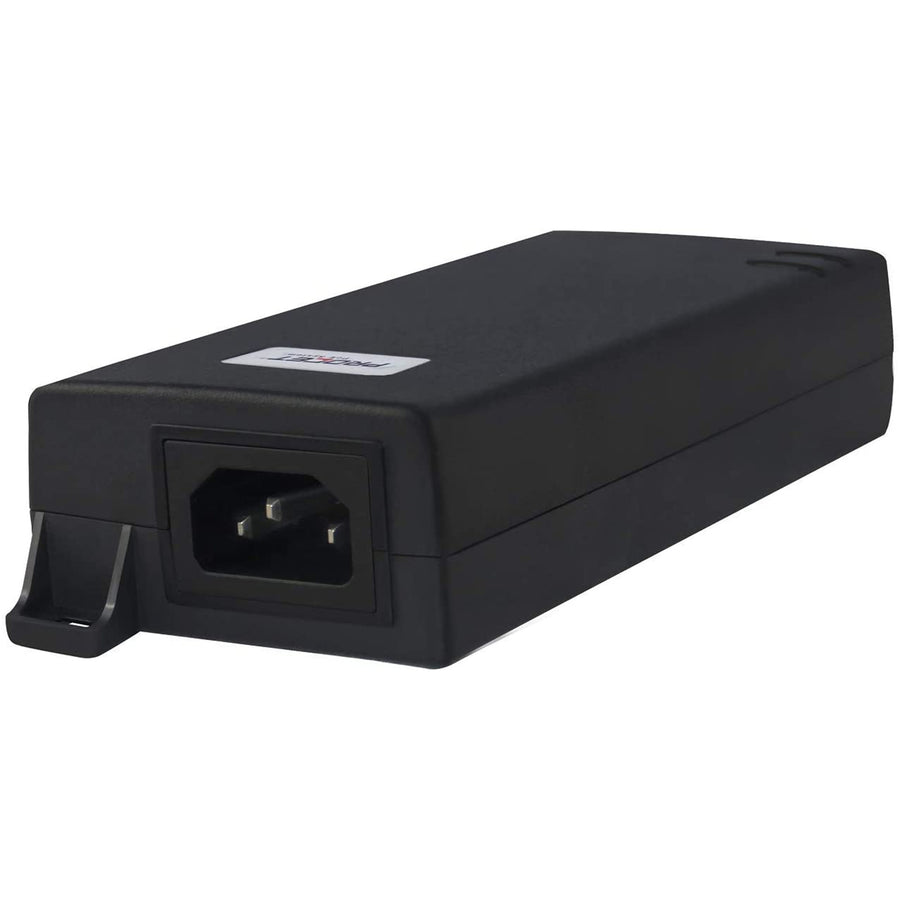

Procet PoE Systems Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply
Features

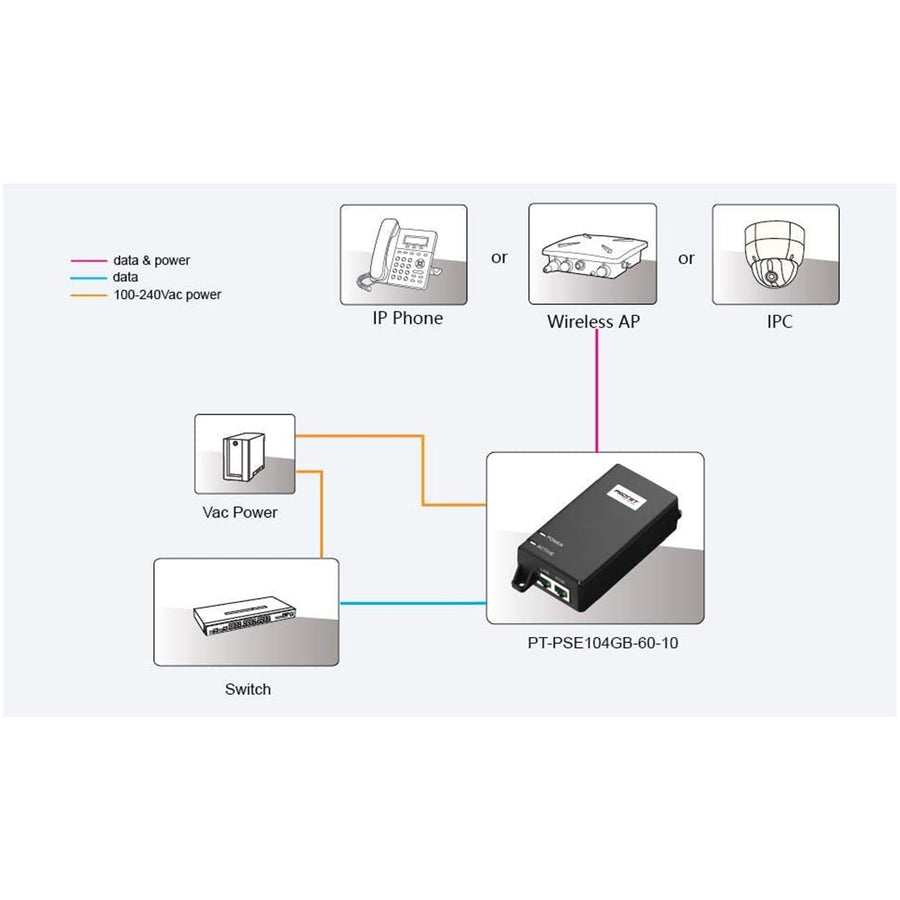

PT-PSE104GB-60-10 is a single port PoE Injector. It provides 55Vdc, 1.1A power for remote PDs over full 4 pairs output. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE/10GbE NBase-T. It works for 60W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals. It is compliant with IEEE802.3 PoE++ standard and compatible to use with any IEEE802.3af/at standard terminals.
PT-PSE104GB-60-10 is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/ Cat6 cables.
PT-PSE104GB-60-10 is a single port 10G 10Gbps midspan Injector with 4 Pair PoE up to 60 watts of power at 55VDC at 1.1amp.Designed for the PoE++ powered 60W PoE Powered Devices (PDs),specially for WiFi 6 routers and 10GbE devices.It supports not only 10/100/1000Mbps of data rates, but also 2.5G/5G/10GbE NBase-T.
Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a wall mount bracket.It operates with a wide input voltage of 100-240Vdc.
Specifications
Technical Specifications
| Input | 100-240Vac 1.5A 50/60Hz |
|---|---|
| Output | 55Vdc 1100mA |
| Power Pins | 4/5(+), 7/8(-) and 3/6(+),1/2(-) |
| Data Speed | 10/100/1000Mbps & 2.5/5/10GbEIEEE802.3 10Base-T EthernetIEEE802.3u 100Base-Tx Fast EthernetIEEE802.3ab 1000Base-T Gigabit EthernetIEEE802.3bz 2.5GbE/5/10GbE NBASE-T |
| Full compliant with | IEEE802.3af/at,PoE++RoHS ComplianceWEEE Compliance |
| Operating Temperature | 0 to 40C |
| Operating Humidity | 20% to 80%, non-condensation |
| Storage Temperature | -20 to 70C |
| Storage Humidity | 10% to 90%, non-condensation |
| Operating Altitude | up to 2000meters |
| Case | Plastic |
| Color | Black |
| Mounting | Wall-mounted |
| IP Rated | IP40 |
| Size | 145.51mm X 65.8mm X 33.5mm |
| Weight | 255g |

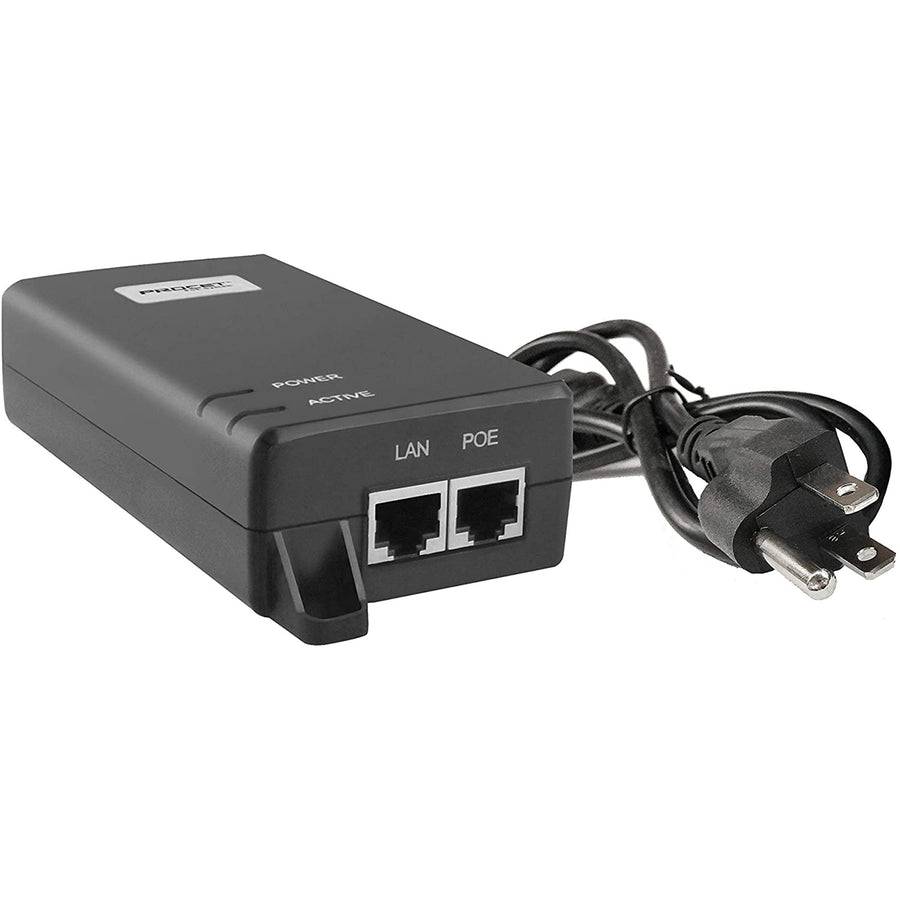

| Packing | Power Cord x 1(0.8 meters) with US plug, Manual x 1 |
| Brand | Procet PoE Systems |
|---|---|
| Product Type | Networking > Network Accessories > PoE Injectors |
| Weight | 0.5 kg |
