Procet PoE Systems PT-EN30G-24 - 24V DC 30 Watt Gigabit Passive Power over Ethernet Supply
Features
Procet 24V DC 30 Watt Gigabit Passive Power over Ethernet Supply
EN30G-24 is an indoor rated PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 24Vdc, 1.25A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit device.
It works for 30W PoE PDs, such as wireless APs, Wifi routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals.
Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz.
Compliant with Level VI Energy Efficiency requirement.
The effective distance is 100 meters over Cat5e/Cat6 cables. It is small in size but high performance.

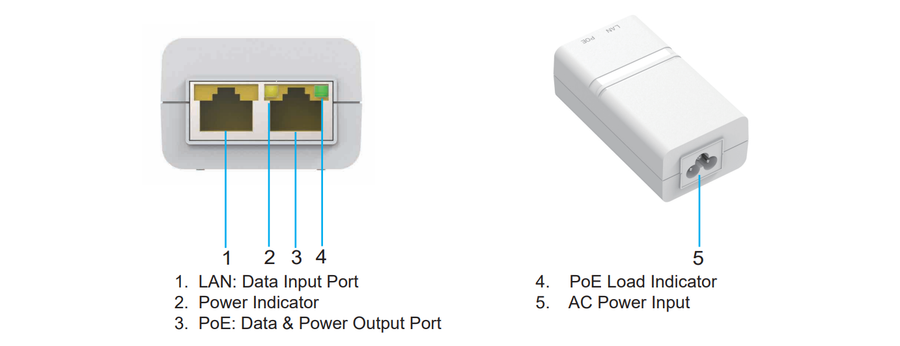

Product Profile

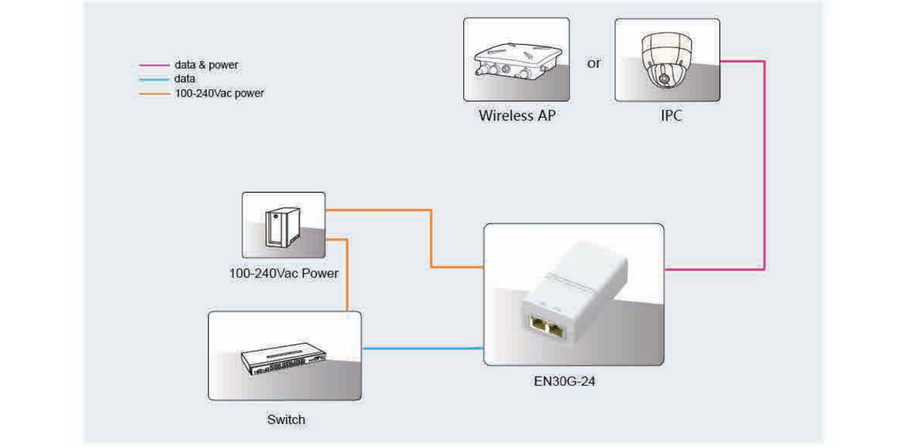

Product Working Diagram
Specifications
Technical Specifications
| Manufacturer's Product Code | PT-EN30G-24 |
|---|---|
| Standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, RoHS Compliance, WEEE Compliance |
| Input | 100-240Vac 1.0A 50/60Hz |
| Output | 24Vdc 1200mA |
| Power Pins | 4/5(+), 7/8(-) |
| Data Speed | 10/100/1000Mbps |
| Operating Temperature | 0 deg C to 40 deg C |
| Operating Humidity | 20% to 80%, non-condensation |
| Storage Temperature | -20 deg C to 70 deg C |
| Storage Humidity | 10% to 90%, non-condensation |
| Operating Altitude | up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV, Line-Line 1.2/50us (8/20us): 1KV |
| LED Indicator | Power Indicator : Yellow, PoE Load Indicator : Green |
| Case | Plastic |
| Color | White |
| IP Rated | IP40 |
| Size | 95.3mm x 51mm x 34.5mm |
| Brand | Procet PoE Systems |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
