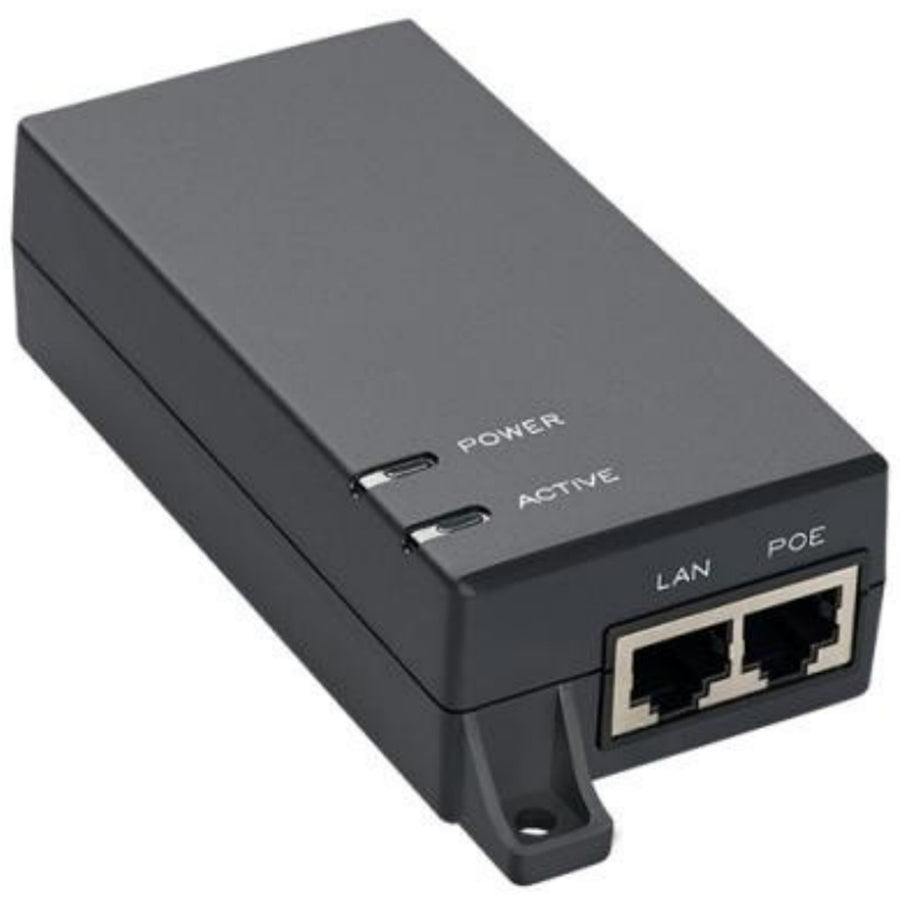

Go Wireless NZ Go Wireless PT-PSE100G 48V DC 30 Watt Gigabit Passive Power over Ethernet Supply
Go

Go Wireless NZ Go Wireless PT-PSE100G 48V DC 30 Watt Gigabit Passive Power over Ethernet Supply

SKU: PT-PSE100G ● In Stock
$30.01$32.35
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

The PT-PSE100G PoE Injector is a single port PoE Injector that is compatible with IEEE 802.at standard. Recently upgraded to a smaller form factor but still comes with the industry leading PoE technology that enables 30W of PoE over standard Cat5 or better cables to easily upgrade IP surveillance devices, WLAN APs and other Ethernet devices.

Dimensions

Product Working Diagram

Specifications

Technical Specifications

Standards IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, Support terminal equipment with IEEE802.3af/at, RoHS Compliance, WEEE Compliance
Input 100-240Vac 1.0A 50/60Hz
Output 48Vdc 630mA
Power Pins 4/5(+), 7/8(-)
Data Speed 10/100/1000Mbps
Operating Temperature 0°C to 40°C
Operating Humidity 20% to 80%, non-condensation
Storage Temperature -20°C to 70°C
Storage Humidity 10% to 90%, non-condensation
Operating Altitude Up to 2000meters
AC Surge Protection 1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE
Case Plastic
Colour Black
Mounting Wall-mounted
IP Rated IP40
Dimensions 134mm X 56mm X 33mm
Weight 175g
Safety Approvals CE, FCC
EMI FCC CFR47 Part 15, EN55024, EN55032
EMS IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)IEC61000-4-3(RS) 10V/m(80MHz~2GHz)IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kVIEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CMIEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall)
LED Indicator Power Indicator: Green, PoE Load Indicator: Green
