Procet PoE Systems PT-PSE106GBR-10 - Procet 55V DC 90 Watt 10 Gigabit 802.3bt PoE++ Power over Ethernet Injector

Procet 55V DC 90 Watt 10 Gigabit 802.3bt PoE++ Power over Ethernet Injector.

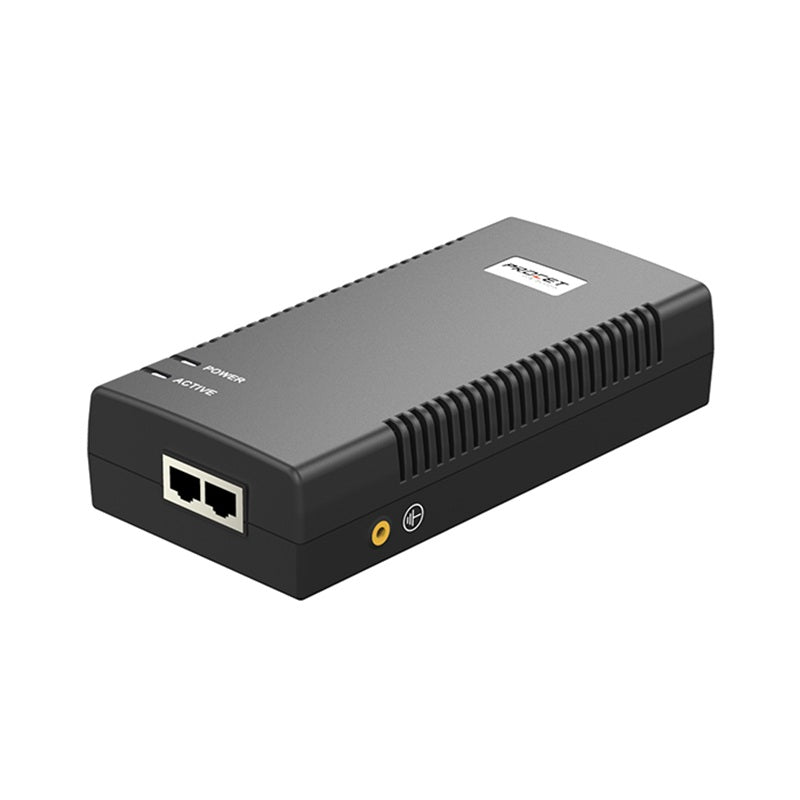

The Procet PT-PSE106GBR-10 is a single port PoE midspan Injector with 4 Pairs PoE up to 90 watts of power at 55VDC at 1.64A with 6KV (10/700us) surge protection. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE/10GbE NBase-T. It works for 90W PoE PDs, such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It complies to 802.3bt and backward compatible with IEEE802.3af/at standard.

The Procet PT-PSE106GBR-10 is designed for indoor use. It works with wide input voltage of 100-240Vac.

It has detecting chip inside, which will detect and classify PD before powering it. It will not apply power until a standardcompliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

Details
Manufacturer's Code	PT-PSE106GBR-10
Input	100-240Vac 2.0A 50/60Hz
Output	55Vdc 1640mA
Power Pins	4/5(+), 7/8(-) and 3/6(+),1/2(-)
Data Speed	10/100/1000Mbp & 2.5/5/10GbE
PoE Output	Fully compliant with IEEE802.3af/at/bt PoE standard
Operating Temperature	0℃ to 40℃
Operating Humidity	20% to 80%, non-condensation
Storage Temperature	-20℃ to 70℃
Storage Humidity	10% to 90%, non-condensation
Operating Altitude	up to 5000meters
Other Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5GbE/5GbE NBASE-T, Fully compliant with IEEE802.3af/at/bt PoE standard, RoHS Compliance, WEEE Compliance
EMI	FCC CFR47 Part 15, EN55032, EN55035
Case	Plastic
Color	Black
IP Rated	IP40
Size	178.71mm X 85mm X 41mm
Weight	500g
