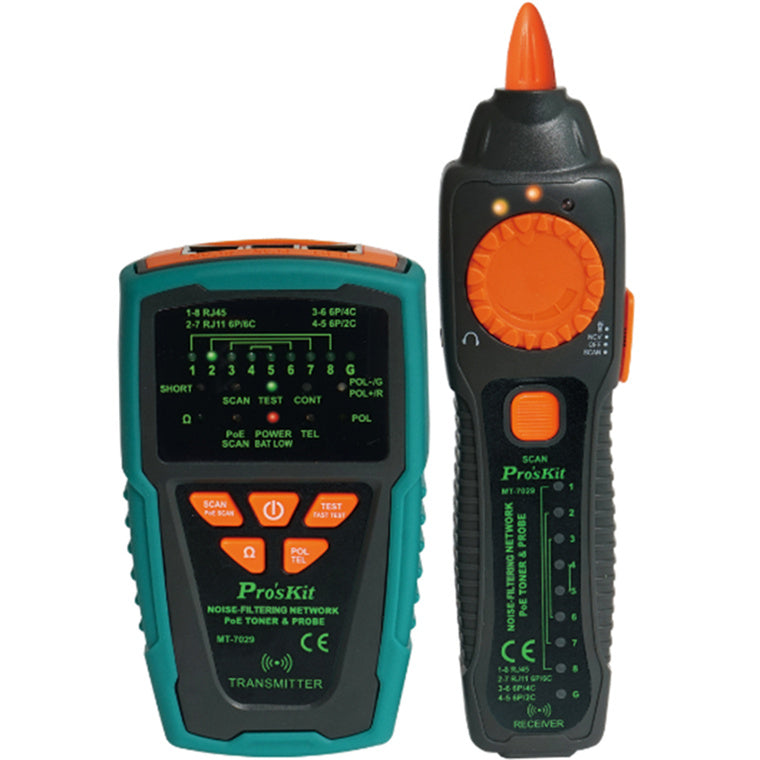

ProsKit MT-7029N Noise-Filtering Network PoE Toner & Probe Kit
You May Also Like
MSI Claw 8 AI+ A2VM Polar Tempest Edition-200NZ 8" FHD+ 120Hz Touch Handheld Gaming System

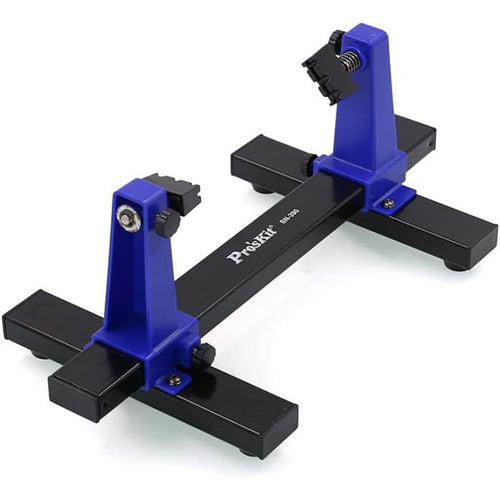

ProsKit SN-390 Adjustable PCB Holder 360 Degree Rotation Repair or Assembly
Telesin Underwater Diving Phone Case For iPhone & Android Phone Works with 99% of phones (5.4" - 6.9")
Features
- Strong Anti-Noise Availability
- PoE Switches & STP Wire Tracing up to 3KM
- Telephone Line Status/Polarity Indication
- Cable Mapping & Status Indication up to 300M
Strong Anti-Noise Availability
- With EMI filters to eliminate high frequency noise allows you to track wire easily and quickly
Telephone Line Status/Polarity Indication
- Identify the telephone line polarity easily and detect status such as severed lines, off-hook condition, or incoming call ringing
PoE Switches & STP Wire Tracing up to 3KM
- Ideal for tracking live Ethernet cables as well as STP cable and determining continuity of network
Cable Mapping & Status Indication up to 300M
- Fast/Slow scan function.
- Display the result of pin to pin cable mapping
- Display cable status and troubleshoot wiring
- for continuity, shorts, opens and crossover
Non- Contact Voltage Detecting
Specifications
Technical Specifications
| Tone frequency | 130 KHz |
|---|---|
| Max. distance of transmission & cable map | 3km & 300m |
| Tone mode | Single tone |
| Compatible connectors | for RJ45(8 pin)/RJ11(6 pin) cable map testRJ45 SCAN socket: for RJ45 locating Individual wire pairsRJ11 SCAN socket: for RJ11 locating Individual wire pairs |
| Cable types tested | RJ45 Lan cable Cat 5 / 5e / 6(UTP/ STP) RJ11/12 Telephone cable Cat 3 (6P/2C/4C/6C) |
| Continuity test | 1 LED (<=300), Coaxial cable & normal solid/Stranded wire by alligator clips patch cord |
| Cable map & shielded indication | 8 LEDs Fast/slow dual speed, 1 LED |
| Phone line polarity indication | 1 Dual color LED |
| Telephone line status indication | 1 Dual color LED |
| Network scan & POE scan | 1 LED & 1 LED |
| EMI filter(network scan & PoE scan) | YES |
| Other function | Live telecommunication equipment test and router test,Voltage protection DC 48V, auto power off, low battery display |
| Battery type | DC 9V (NEDA 1604/6F22) xl pcs (not included) |

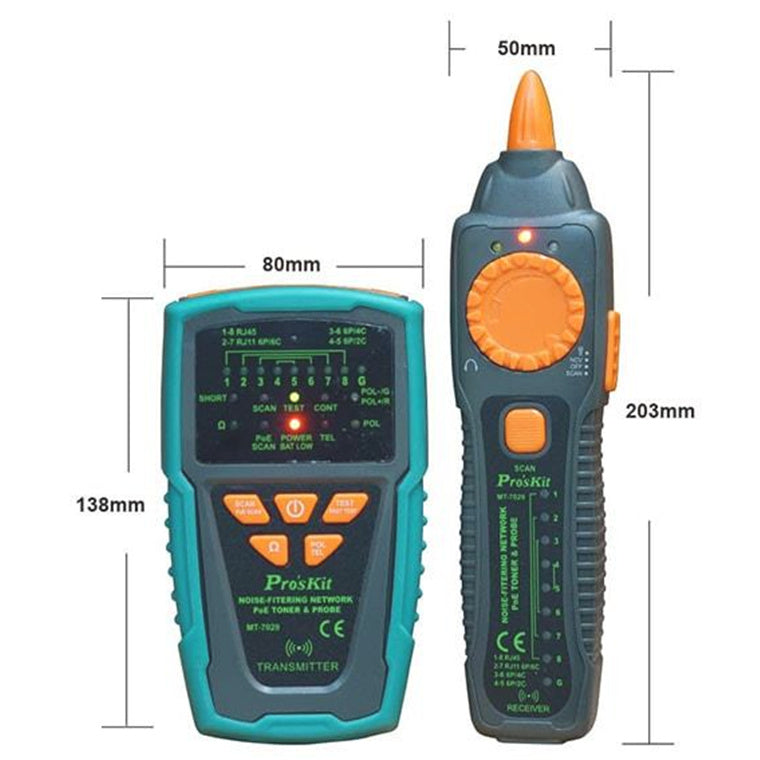

| Dimension (LxWxD) | 138x80x35 mm |
| Frequency | 130KHZ |
| Compatible connectors | RJ45(8 Pin)/RJ11(6 Pin) |
| Signal status indication | 1 dual color LED & buzzer, building ear jack |
| Cable map & shielded indication | 8 LEDs & 1 LED |
| NCV indication | 1 LED (AC90~1000V) |
| LED illumination | 1 LED |
| Battery type | 9V DC (NEDA 1604/6F22) xl pc (not included) |
| Dimension (LxWxD) | 203x50x32 mm |

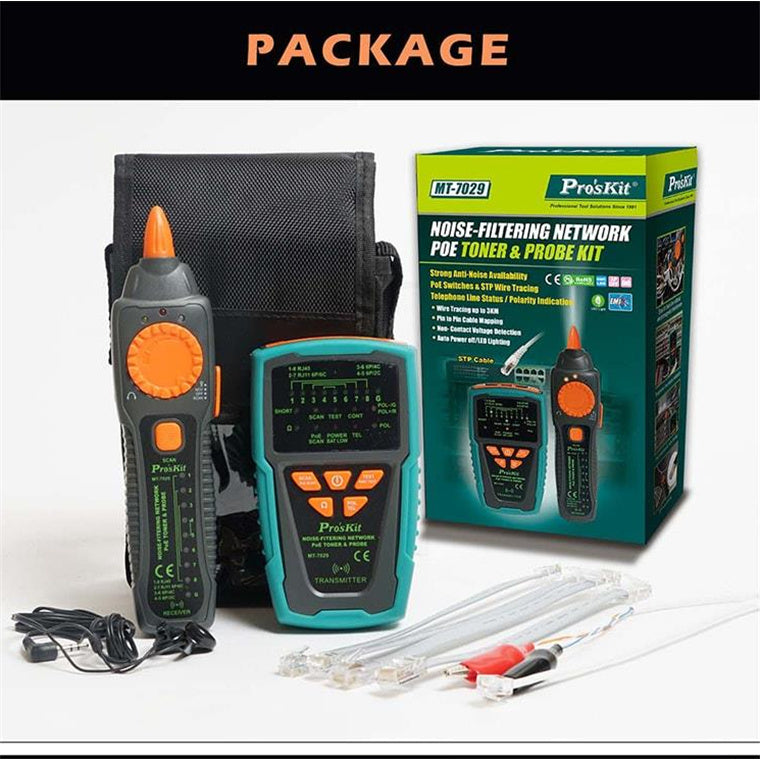

| Accessories | RJ45 cable patch cordsRJ11 cable patch cords RJ11 to alligator clips patch cord, earphone, storage bag, user manual |
| Brand | ProsKit |
|---|---|
| Weight | 0.5 kg |
| Warranty |
|---|
