-17%
ProsKit

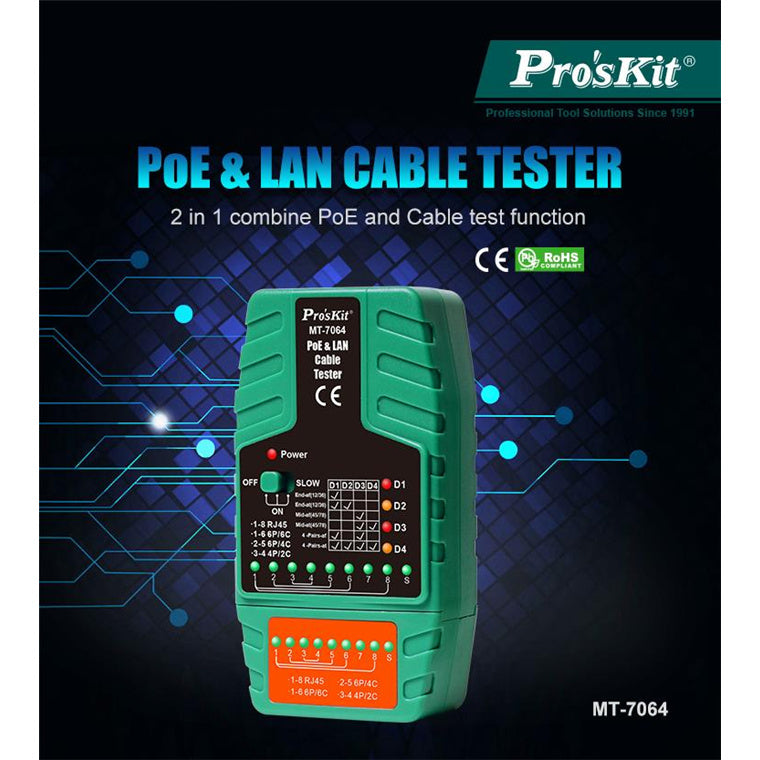

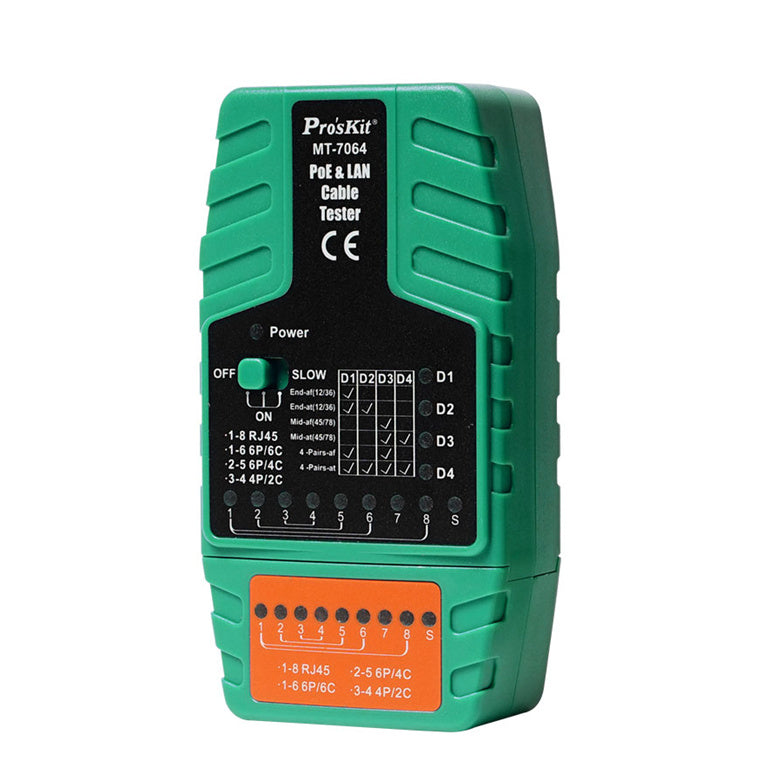

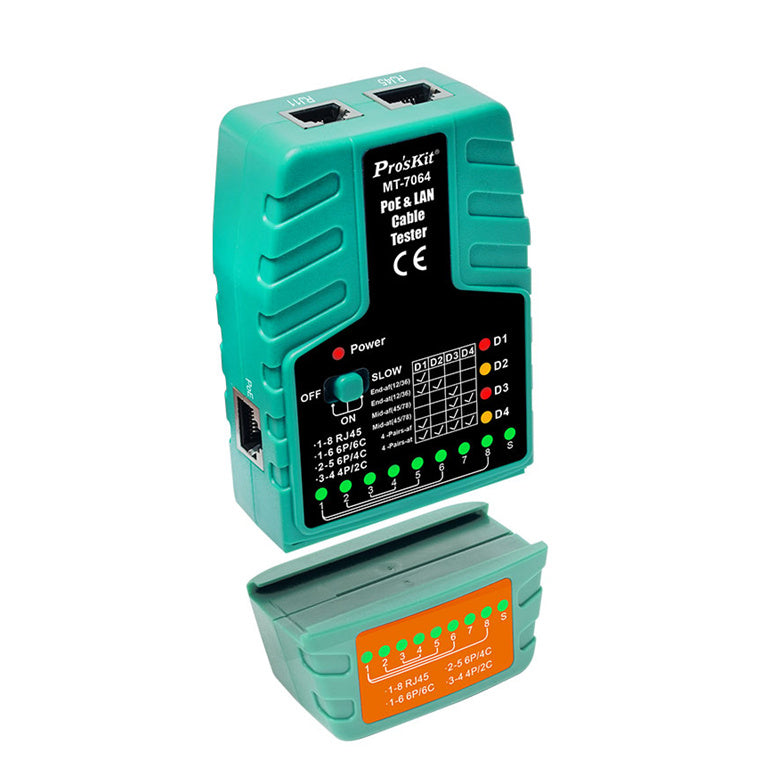

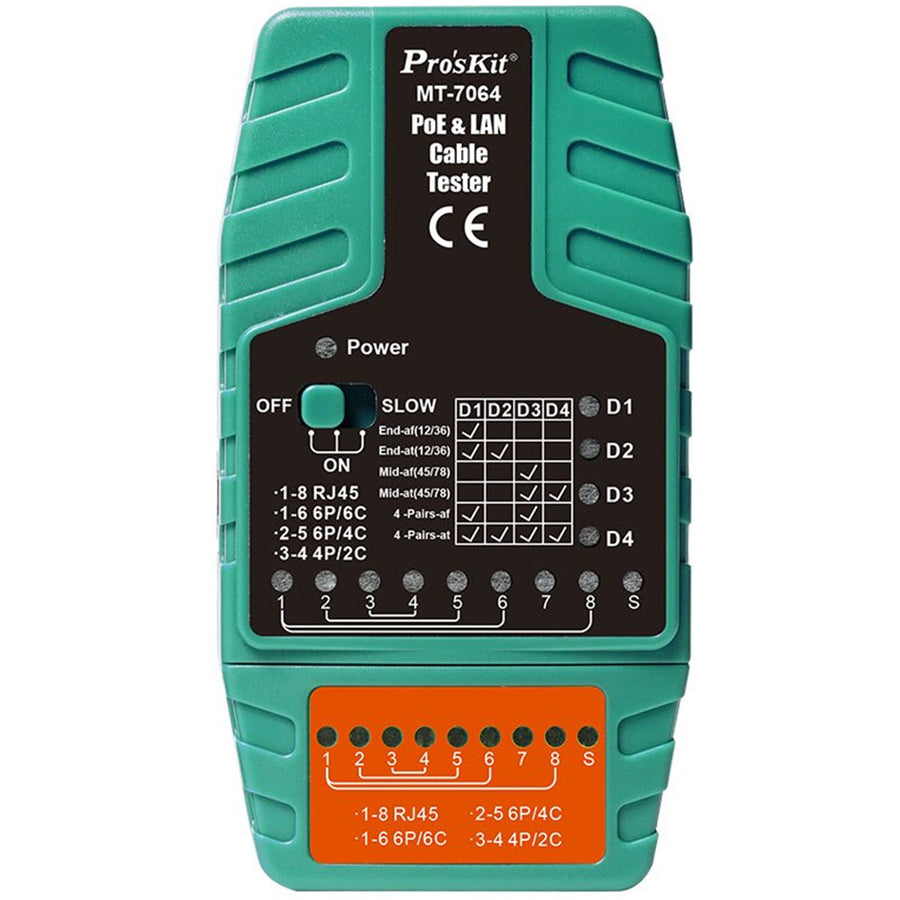

ProsKit MT-7064 PoE & LAN Cable Tester
$52.84$63.60
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
You May Also Like
TP-Link
TP-Link Archer T4U (AC1300) Dual-Band WiFi 5 USB Wireless Adapter
$44.08$56.52
inc GST ▲
+GST
ProsKit
ProsKit MT-7058 Wire Tester Mini Lan Ethernet Cable Tester Multifunctional Network Cable Tester RJ45 RJ11 RJ12 Cat5 Cat6
$34.72$45.20
inc GST ▲
+GST
Features
PoE Tester
- Easily tests Ethernet network for power over Ethernet existence
- Quickly detects the type of the Power Sourcing Equipment (either Endspan or Midspan)
- MT-7063 is a economy type only for detecting Midspan/Endspan.
- MT-7064 is an advanced type which can easily identify IEEE 802.3 af/at PoE standard and Midspan/Endspan
Cable Tester:
- Check the RJ11/RJ12/RJ45 pin to pin cable map
- Automatically runs all tests and checks for continuity, open, short and crossover wire pairs
- Cable mapping up to 300M
Specifications
Technical Specifications
| Max. distance of cable map | 300m |
|---|---|
| Compatible connectors | RJ45(8 Pin) & RJ11(6P/6C/4C/2C) & RJ12 & POE |
| Cable types tested | RJ45 Lan cable cat 5, 5e, 6(UTP/STP)RJ11/12 Telepnone cable cat 3 (6P/2C/4C/6C) |
| Cable map indication | 8 LED, Fast/Slow dual speed |
| Shielded indication | Yes |
| POE indication(Master) | 802.3 af/at POE standard and Midspan/Endspan |
| Live telecommunication equipment test and router test | Yes |
| Dimension (LxWxD) | Master : 103x66x27 mm, Remote : 103x35x27 mm |
| Battery type | DC 9.0V |
| Weight | 130g (Not including battery) |
| Brand | ProsKit |
|---|---|
| Weight | 0.212 kg |
| Warranty |
|---|
