POWERSHIELD

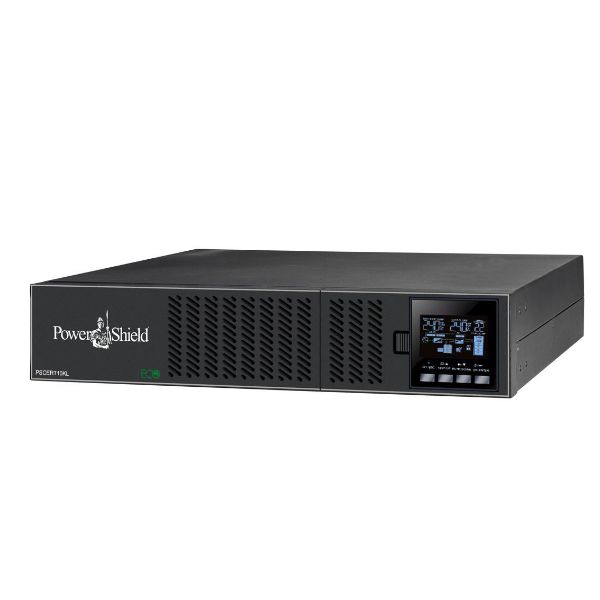

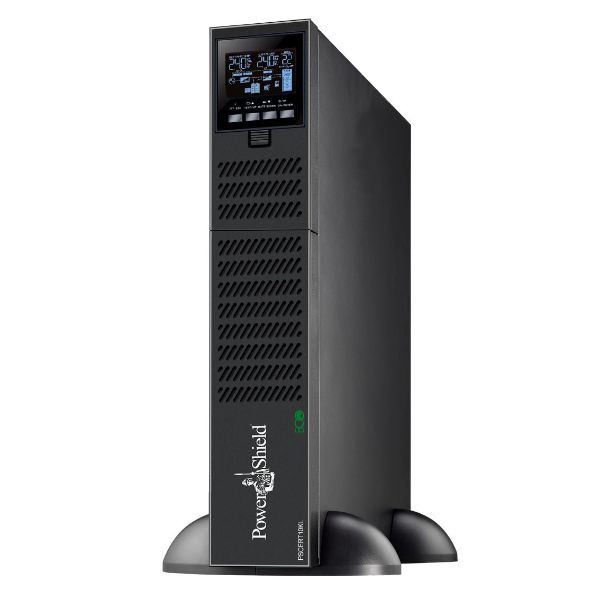

PSCERT10KL - POWERSHIELD PSCERT10KL - Centurion RT 10000VA Long run model. True On-line Double conversion. Rack/Tower
$5,019.12$6,982.41
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
-Exceptional surge protection
-Unity output power factor (PF=1)
-Informative & easy-shift LCD display
-ECO & advanced ECO mode
-Standard extra large charger
-Hot-swappable batteries
-Rack/Tower design
-Emergency Power Off Function (EPO)
Specifications
Technical Specifications
| Line Loss | 110V~300V AC @(0~60%) Load; 140V~300V @(60~80%) Load; 176V~300V AC @(80~100%) Load |
|---|---|
| Low Line Comeback | Low Line Loss Voltage +10V |
| High Line Comeback | High Line Loss Voltage -10V |
| Frequency Range | 46Hz~54Hz@ 50Hz system; 56Hz~64Hz@ 60Hz system |
| Phase | Single phase with ground |
| Power Factor | Correction =0.99@ nominal voltage (100% load) |
| OUTPUT | Output Power Factor: 0.9 |
| Output | Voltage 208/220/230/240V AC Selectable |
| AC Voltage Regulation | ±1% |
| Frequency Range (Synchronized Range) | 46Hz~54Hz@ 50Hz system56Hz~64Hz@ 60Hz system |
| Frequency Range (Batt. Mode) | 50Hz±0.1Hz or 60Hz±0.1Hz |
| Overload | AC Mode: 100%~110%: 10min; 110%~130%: 1min; >130%: 1secBattery Mode: 100%~110%: 30sec; 110%~130%: 10sec; >130%: 1sec |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | =1 % @ 100% Linear Load; =4% @100% Non-linear Load |
| Transfer Time | Line to Battery: 0msInverter to Bypass: 0msInverter to Eco: < 10ms |
| ECO Mode (Advanced) | <94% |
| Battery Mode | <93% |
| Battery Number | Optional strings of 16 or 20 batteries |
| Typical Recharge Time | According to an external battery pack |
| Charging Current (max.) | 4A ± 10% |
| Interface | USB and RS232 as standard |
| Software | PowerShield® NetGuard® software - supports Windows, Linux, Unix and Mac based operating systems |
| Optional | Intelligent slot for PSSNMPV4, PSModbus or PSAS400 dry contact |
| Dimensions (D x W x H) | UPS Unit: 600x438x88mm [2U] (weight: 20kg)PSRTBB16 (16 batteries): 688x438x88 [2U] (weight: 48kg)PSRTBB20 (20 batteries): 607x438x133 [3U] (weight: 60kg) |
| Temperature | 0°C~40°C |
| Humidity | 95% (RH Non-condensing) |
| Altitude | <1000m |
| Noise Level | Less than 58dB@ 1m |
| Brand | POWERSHIELD |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution |
| Weight | 8.617 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
You May Also Like
VERTIV
VERTIV 2353839 - UPS BYPASS SWITCH FOR PS2200 & GXT4-3000
Switching
$649.56$854.83
inc GST ▲
+GST
DYNAMIX
DYNAMIX RP-ATS - ATS PDU Dual 16A IEC Input 10 Port 10A IEC C13 Output Power Redundancy 8ms Switch Over
Switching
$1,582.60$1,808.39
inc GST ▲
+GST
DYNAMIX
DYNAMIX RPR-15VMCB - 15 Outlet Vertical Power Rail (10A) w/ 6kA C-Curve MCB Circuit Breaker on/off switch
Switching
$233.03$265.90
inc GST ▲
+GST
POWERSHIELD

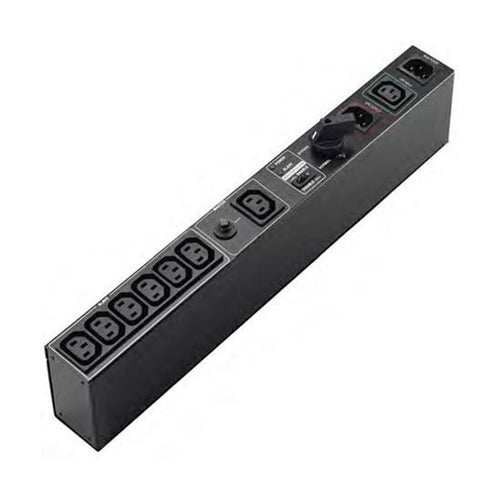

POWERSHIELD PSMBS2K - External Maintenance Bypass Switch for 1kVA or 2kVA UPS Rackmount Brackets Included
