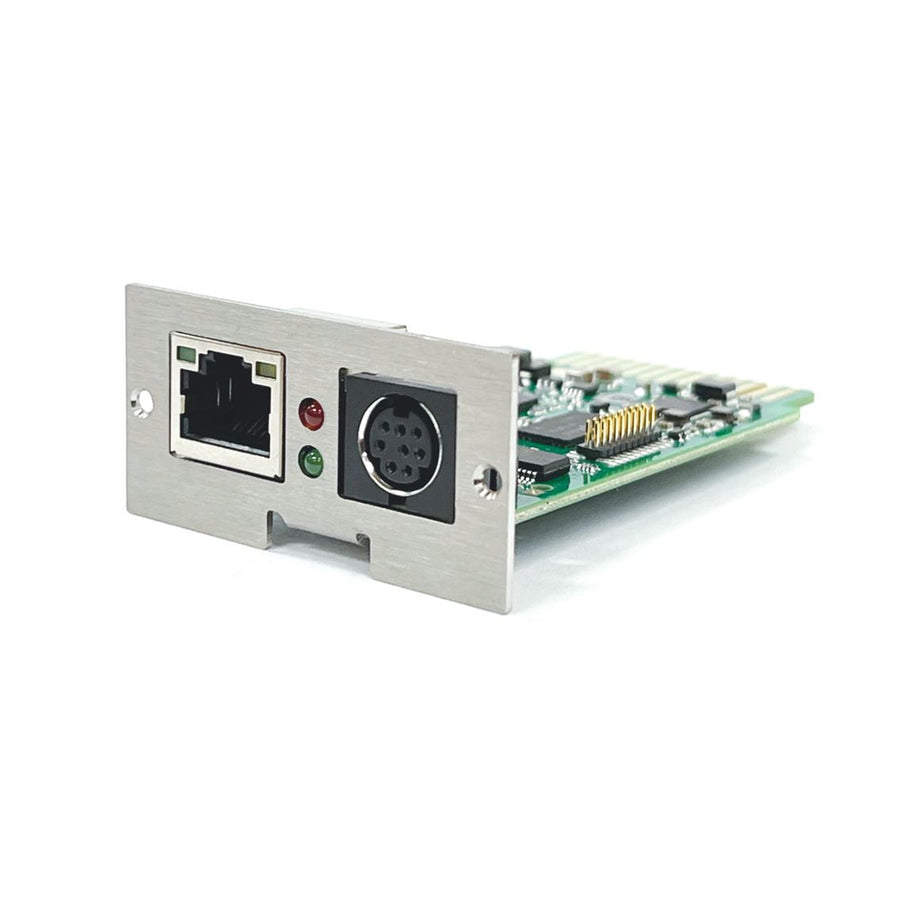

PSCSSNMP - POWERSHIELD V8 Cyber Secure SNMP Web Comms Card. Deigned for all All Centurion UPS. Most Secure!
Features
The Cyber-Secure SNMP follows the Australian Cyber Security Centre (ACSC) Information Security Manual (ISM) framework for risk management and cyber threats to protect information and systems from external threats. The Cyber Secure Web card follows industry standards with the user interface offering complex emergency procedures to be enacted simply.
Made in Germany and the USA, the Cyber-Secure SNMP is the most flexible UPS, SNMP and IT infrastructure solution on the market. It is developed to meet the requirements of the USA IoT Cybersecurity Act and EU Cybersecurity Act addressing information privacy, specifically pertaining to connected devices and the European Unions Directives.
LDAP AND RADIUS SUPPORT
More efficiency and more transparency than other devices. The Cyber-Secure SNMP provides enhanced connectivity via Radius for structured access according to local security compliance guidelines.
MODERN AND FLEXIBLE INTERFACE TO ENSURE COMFORT AND SECURITY
Access the Cyber-Secure SNMP directly via the modern and intuitive web interface to manage all requisite functions.
FULLY AUTOMATABLE FOR TIME-CRITICAL UPS AND IT MANAGEMENT
Benefit from the possibilities made by full integration of the Cyber-Secure SNMP as a management system for script solutions.
PRECISE EVENT AND MEASUREMENT LOGS
Log all measurement data and events with precise time stamps. The non-volatile memorystored records can be used to reconstruct the time line in case of an incident. Complex communication and notification system.
NETWORK SECURITY & SERVICES
Supports all common network services and fits seamlessly into any existing IT infrastructure.
Specifications
Technical Specifications
| Power consumption | 12V (min. 9V, max. 30V DC), 150 mA |
|---|---|
| Network / LAN | 10/100Mbit Base-T auto sense |
| RS-232 Interface | 2 |
| RS-485 Interface | COM2 MINIDIN connector for RS232 |
| USB Interface | Optional separate card |
| AUX Interface | not supported on cs141 Mini card |
| MODBUS over IP | Standard |
| BACnet over IP | Standard |
| Remote Syslog | Standard |
| Radius Server support | Standard |
| Status LED's | Green LED |
| MIB file available | Red LED |
| Dimension L x W x H (mm) | 42 x 80 x 26mm |
| Net Weight | 36g |
| Temperature | 0-70°C |
| Storage | 0-70°C |
| Max. operating ambient Temperature | 55°C |
| CPU | Cortex A8 800 MHz |
| Flash Memory | 512 MB |
| RAM | 128 MB DDR3 RAM |
| Humidity | 20-95%, not condensing |
| Certification | CE, UL/NEMKO |
| MTBF (EN/IEC 61709) | 916.028 hours (104.6 years) |
| Brand | POWERSHIELD |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution |
| Weight | 0.5 kg |
| Warranty |
|---|
