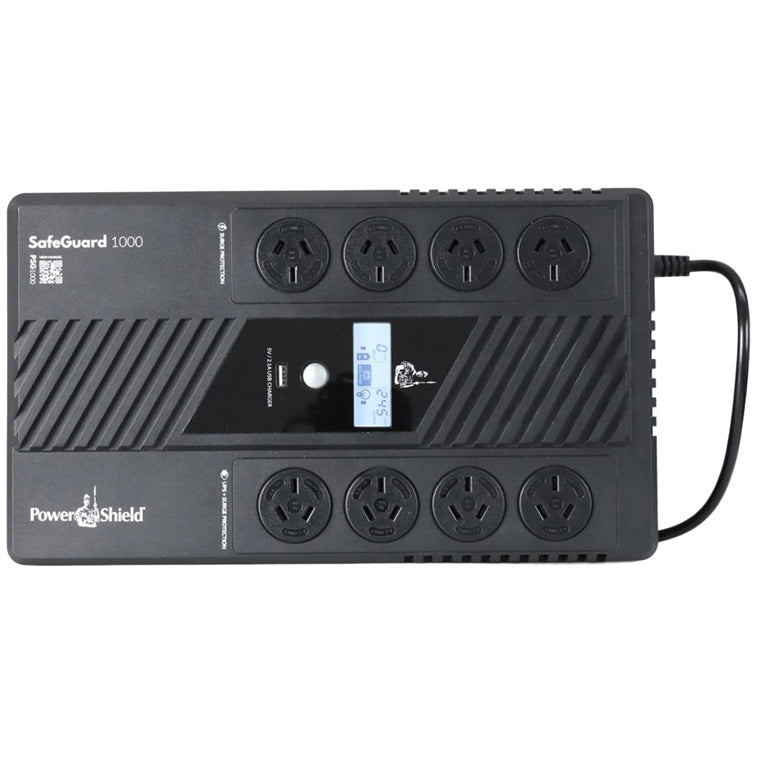

POWERSHIELD PSG1000 - SafeGuard 1000VA (600W) Line Interactive UPS 4 x NZ Battery Back Up & Surge Out
Features
please consider UPSDNX1000 instead, simillar product under diferent brand.
The PowerShield SafeGuard UPS Series remains one of the most popular UPS choices for workstations, telephone systems and security applications. The 1000VA model is line interactive, powerboard style UPSs that provide automatic voltage regulation, battery backup and surge protection in a convenient, wall mountable compact design.
HOT SWAPPABLE BATTERY
Easy hot-swappable, user replaceable battery that extends the service life of your UPS.
WALLMOUNTABLE / POWERBOARD STYLE
The SafeGuard Series are designed in a powerboard style that is ideal for physically restricted areas and can be conveniently wall mounted.
COLD START FUNCTION
SafeGuard UPSs can turn on equipment when there is no AC simply by connecting equipment and turning the UPS on. This is excellent when users need to power equipment for a short time.
EXCEPTIONAL SURGE PROTECTION
SafeGuard UPSs offer best in class surge protection.
EXTRA SURGE PROTECTED SOCKETS
The SafeGuard features Australian / New Zealand outlets which provide a high level of surge protection as well as a UPS output supply, to keep essential systems running during utility power outages. Additional Australian / New Zealand surge protected sockets are also provided for non-essential equipment.
USB CHARGING PORT
The SafeGuard 1000 features a 10W USB charging port for mobile devices.
OFF-MODE CHARGING
SafeGuard UPSs will continue to charge internal batteries whether the unit is on or off.
AUTOMATIC VOLTAGE REGULATION (AVR)
The AVR automatically regulates bucks/boosts unstable fluctuating utility voltages, bringing it within 10% of nominal voltage range and thereby protecting valuable equipment.
INBUILT BATTERY MANAGEMENT (HID)
- Plug and play on any computer or NAS drive
- Allows for orderly shutdown without software
USB COMMUNICATION WITH NETGUARD® SOFTWARE
The free, downloadable NetGuard software provides complete power monitoring. Parameters such as input/output voltage, battery capacity and load level are easily viewed. It also ensures a safe and orderly shutdown in
the event of a prolonged outage.
APPLICATIONS
- Small Office & home office equipment
- Stand-alone personal computers
- Work stations
- Telephone systems
- Point of sale equipment

Specifications
Technical Specifications
| Model Number | PSG1000 |
|---|---|
| Capacity | 1000VA / 600W |
| Topology | Line Interactive |
| Voltage | 240VAC (Nominal) |
| Voltage range | 177~290VAC |
| Frequency | 50Hz or 60Hz (Auto-sensing) |
| Output Voltage | 240Vac ±10% |
| Frequency Range (Batt. Mode) | 50Hz or 60Hz ±-1Hz |
| Transfer Time | 6 msec (Typical) |
| Waveform (Batt. Mode) | Simulated Sine Wave |
| NZ Outlets | 4 (UPS and Surge Protection) |
| NZ Outlets | 4 (Full Time Surge Protection) |
| Capacity | 12V*9Ah |
| Backup Time | 25 min (1 PC load at 100W) |
| Typical Recharge Time | 6-8 hours recover to 90% capacity |
| Full Protection | Overcharge, discharge, short circuit and thermal protection |
| Surge Protection | 475Joules /13000Amps - Best in its class |
| Interface | USB interface |
| Software | PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
| Visual Alarm | LED, AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload, Remaining Time |
| Audible Alarm | Battery Mode, Low Battery (Batt. Mode), Fault, Overload |
| Dimension D x W x H (mm) | 345 x 200 x 100 |
| Net Weight (kgs) | 6.6 |
| Temperature | 0-40°C |
| Humidity | 0-90% RH (non-condensing) |
| Noise Level | <40dB (no fan) |
| Safety/EMC | EN62040 - 1 - 2008, IEC60950 - 1: 2001, EN62040 - 2 2006 |
| RoHS | Directive 2011/65/EU |
| Brand | POWERSHIELD |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution |
| Weight | 3.329 kg |
| Warranty |
|---|
