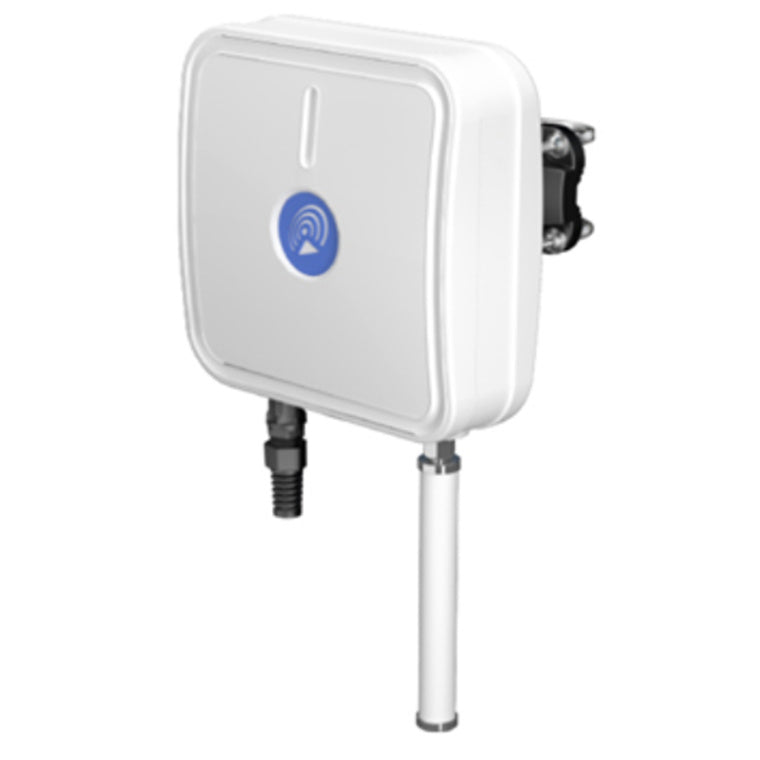

QuWireless A240M - QuMax A240M 4G/LTE & WiFi Antenna for RUT240/RUT241
QuWireless A240M - QuMax A240M 4G/LTE & WiFi Antenna for RUT240/RUT241
Features
QuMax for Teltonika RUT240 Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT240 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with a long distance to the base station. It is designed to have the Teltonika RUT240 router installed inside an IP67 enclosure. It is the first choice for fixed installations in an industrial environment. It also has an embedded outdoor Wi-Fi omni antenna.
- IP67 Outdoor antenna
- Passive PoE Support
- Made to fit mount
Specifications
Technical Specifications
| Product Code | A240M |
|---|---|
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360 |
| Frequency Gain | 0.694-0.96 GHz: 4dBi, 1.7 - 2.2 GHz: 5dBi, 2.2 - 2.7 GHz: 6dBi |
| Beamwidth | 90°/90° +/- 30° |
| Polarization | Vertical |
| Impedance | 50 O |
| WiFi Frequencies | 2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi) |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress Protection | IP67 |
| Dimensions | 272 x 276 x 96 mm |
| Weight | 1.8 kg |
| Operating Temperature | From -40°C to 75°C |
