QuWireless A360M - QuMax A360M 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT361

SKU: A360M ● In Stock

$121.39

Free shipping over $299 Genuine product 7-day returns

QuWireless A360M - QuMax A360M 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT361

Features

QuMax for Teltonika RUT360

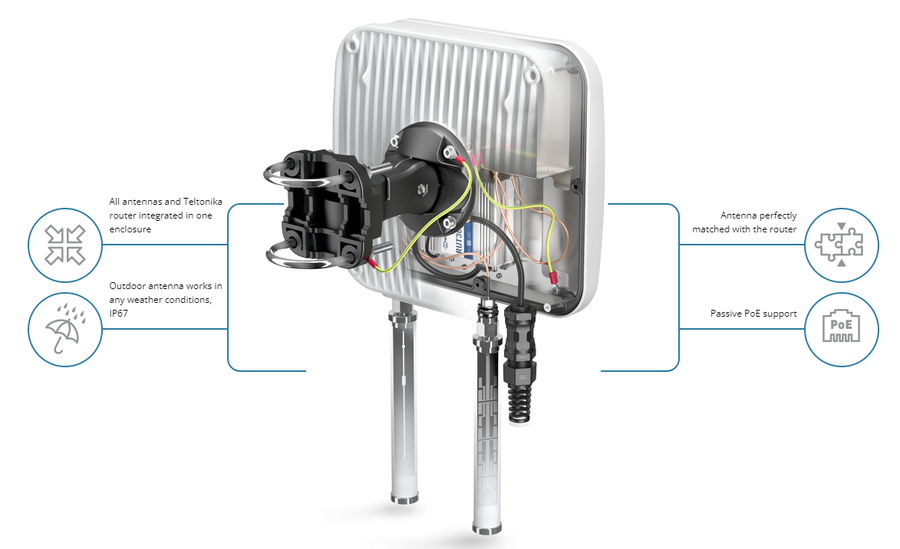

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT360 (All-in-one)

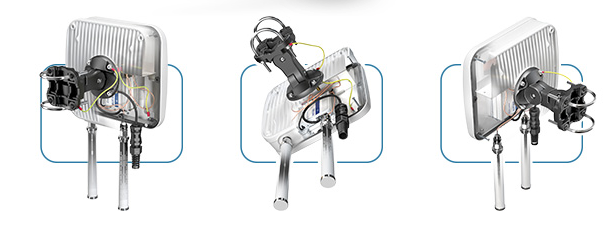

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT360 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.

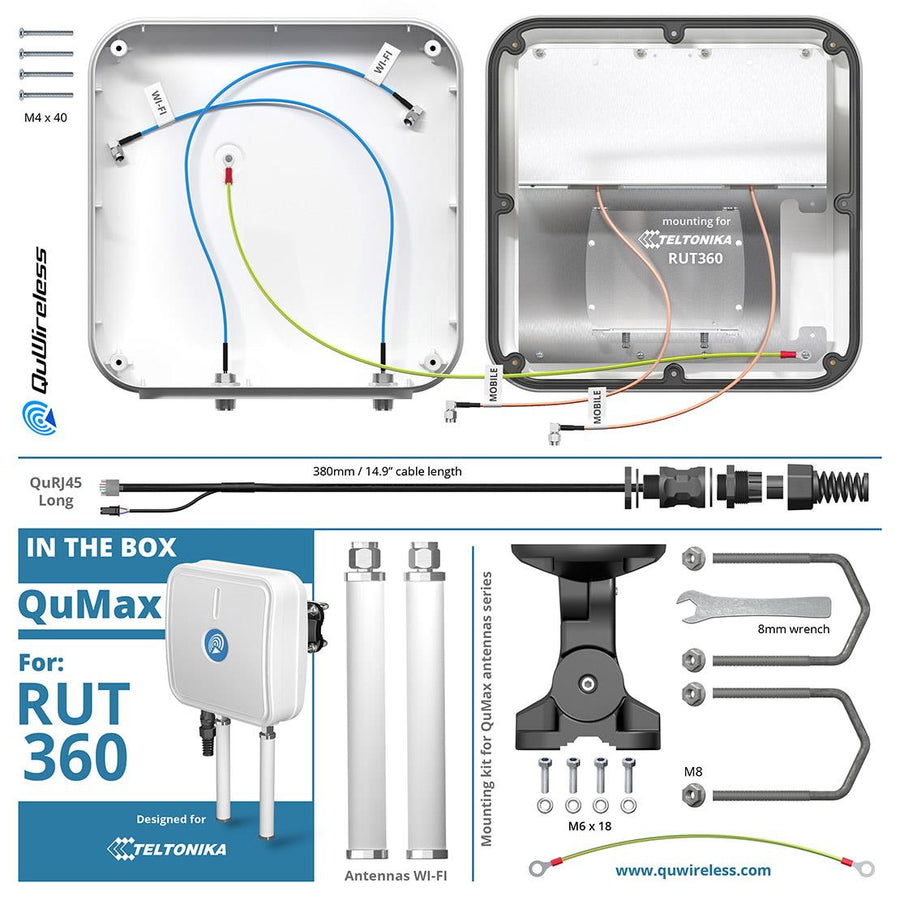

In the box

Router mounting adapter manual

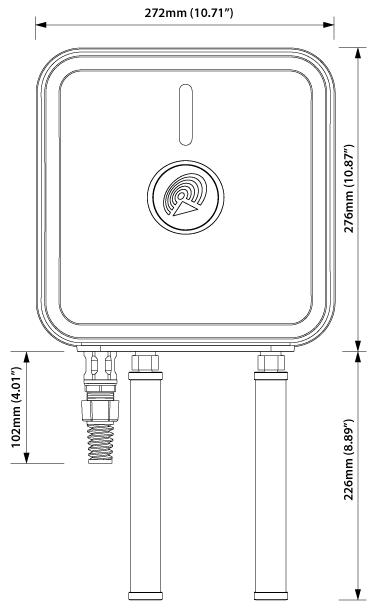

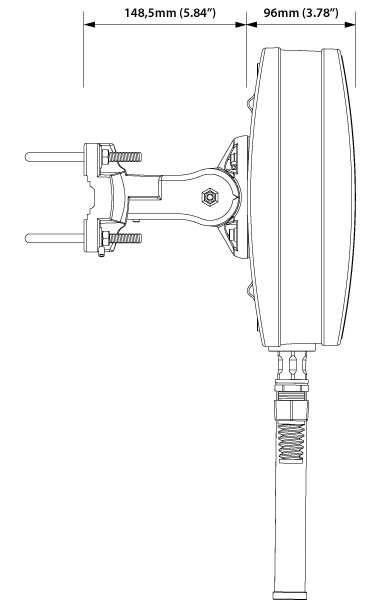

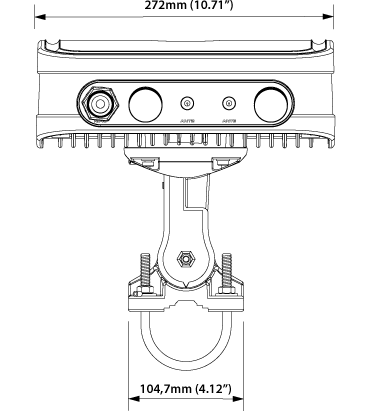

Dimensions

For more information: https://quwireless.com/qumax-rut360

Specifications

Technical Specifications

Frequency	0.694 - 0.96 GHz1.7 - 2.2 GHz2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain	0.694 - 0.96 GHz : 4 dBi1.7 - 2.2 GHz : 5 dBi2.2 - 2.7 GHz : 6 dBi
Front-to-Back	>8 dB
VSWR	<1.30, max <1.80
Beamwidth	90°/90° ±30°
Polarization	Vertical
Impedance	50 O
Frequency	2.40 - 2.50 GHz
Gain	6 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 O
Materials	ABS, aluminum, PTFE, Fiberglass
Connector type	RJ45 + 2xNf + 2xNm in external omni wi-fi antenna
Ingress protection	IP67
Dimensions	272 x 276 x 96 mm10.71 x 10.87 x 3.78 inch
Weight	1.8 kg3.97 lbs
Operating temperature	From -40°C to 75°CFrom -40°F to 167°F
