QuWireless AX09S - QuSpot AX09S Multiband LTE/4G/GPS Enclosure Omnidirectional antenna for Teltonika RUTX09
QuWireless AX09S - QuSpot AX09S Multiband LTE/4G/GPS Enclosure Omnidirectional antenna for Teltonika RUTX09
Features

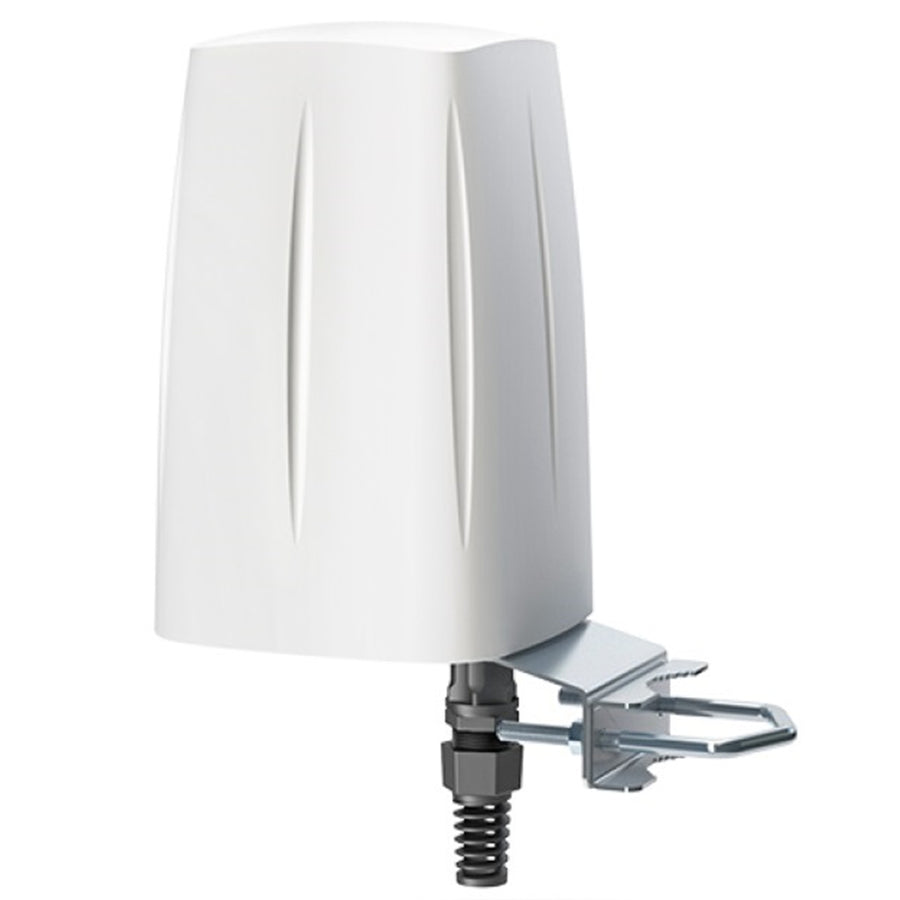

QuSpot Multiband LTE/4G/GPS Enclosure Omnidirectional antenna for Teltonika RUTX09

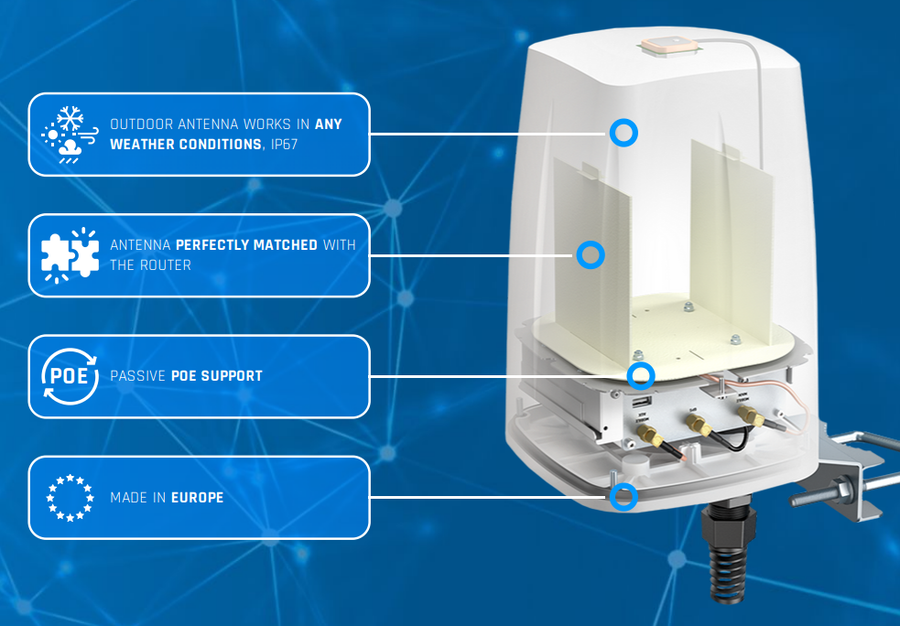

Integrated outdoor multi band LTE omni antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)
QuSpot omni LTE antenna for Teltonika RUTX09 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded GPS antenna. If you use RUTX09 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
- IP67 Outdoor antenna
- Passive PoE Support
- Made to fit mount
- Easy to Install
- Easy Integration with Teltonika RUTX09
Specifications
Technical Specifications
| MPN | AX09S |
|---|---|
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95 |
| Frequency Gain | 694 - 960MHz : 2 dBi, 1.7 - 2.2 GHz : 2 dBi, 2.2 - 2.7 GHz : 4 dBi |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ohm |
| Materials | ABS, aluminum, PTFE |
| Connector Type | RJ45 |
| Ingress Protection | IP67 |
| Dimensions | 160 x 160 x 240 mm |
| Weight | 1.5Kg |
| Operating Temperature | From -40°C to 75°C |
