Features

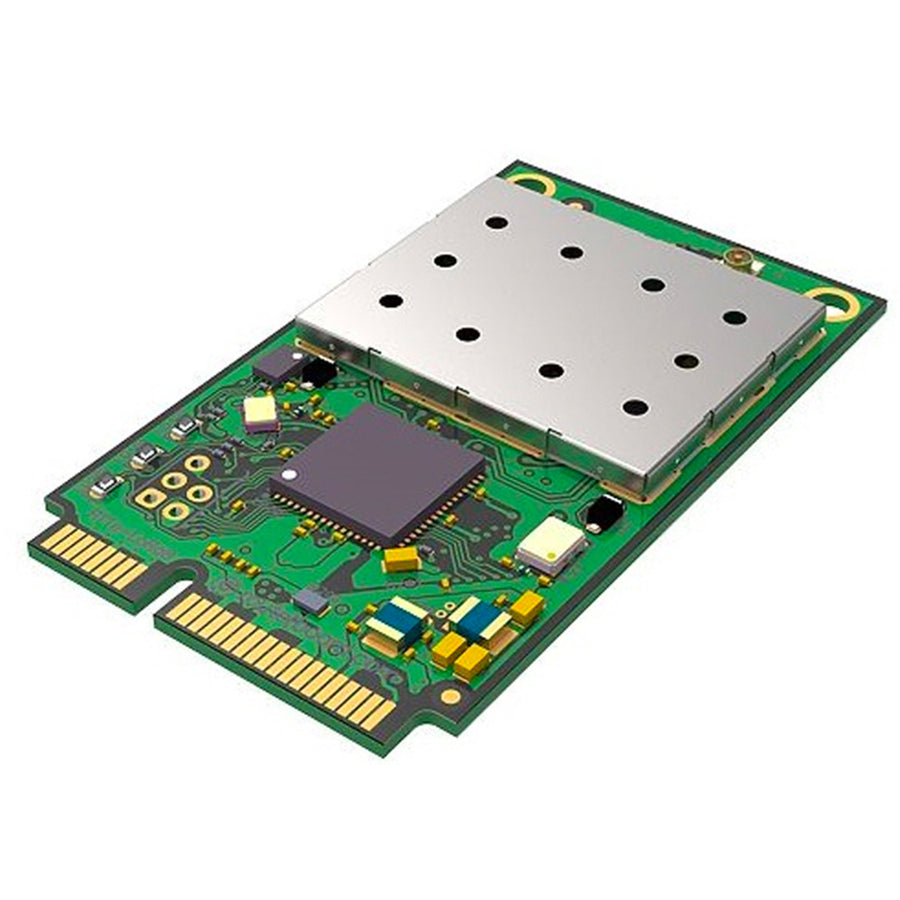

MikroTik R11e-LR9 LoRaWAN IoT Concentrator Gateway mini-PCIe card 902-928MHz. R11e-LoRa9 is a new LoRaWAN concentrator Gateway card in mini PCIe form factor based on Semtech SX1301 chipset. It enables LoRaWAN connectivity for any MikroTik product that has mPCIe slot with connected USB lines.
With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.
Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)
- Supports 902-928 MHz (AU915-928, US902-928, AS923, KR920-923)
- Easily onboard and monitor 100's of LoRaWAN Gateways with the Scopious onboarding tool
Specifications
Technical Specifications
| Manufacturer | MikroTik |
|---|---|
| MPN | R11e-LR9 |
| Product Type | LoRaWAN Concentrator Gateway mini-PCIe card |
| Interface | Mini-PCIe |
| Supported class | A and C |
| Frequency | 902-928 MHz (AU915-928, US902-928, AS923, KR920-923) |
| RF Output power | 902-928 MHz 23 dBm |
| Receive max sensitivity | -137 dB @ SF12 |
| Range | Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit |
| Operating ambient temperature | -40degC to +70degC |
| Max power consumption | 2 W902-928 MHz (AU915-928, US902-928, AS923, KR920-923) |
