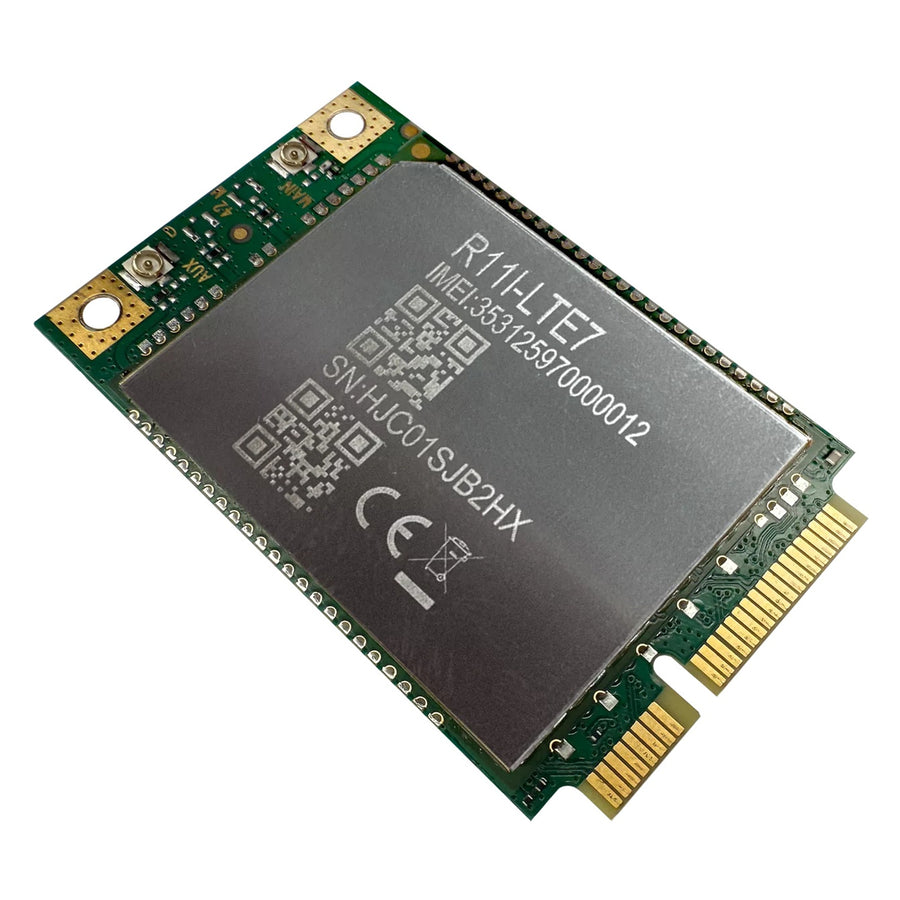

R11e-LTE7 - MikroTik R11e-LTE7 3G/4G/LTE CAT7 miniPCI-e Card with Carrier Aggregation and Band 28 support
MikroTik

R11e-LTE7 - MikroTik R11e-LTE7 3G/4G/LTE CAT7 miniPCI-e Card with Carrier Aggregation and Band 28 support

SKU: R11e-LTE7 ● In Stock
$158.48
Free shipping over $299 Genuine product 7-day returns

R11e-LTE7

R11e-LTE7 - MikroTik R11e-LTE7 3G/4G/LTE CAT7 miniPCI-e Card with Carrier Aggregation and Band 28 support

Description

The MikroTik R11e-LTE7 is an easy drop-in upgrade for RouterBOARD integrators. This miniPCIe CAT7 modem delivers up to 300 Mbps with Band 28 & 32 support and carrier aggregation for better rural performance. Fully compatible with RouterOS v7 devices such as LtAP and RBM33G – upgrade your LTE speed without changing your setup.

The next-generation miniPCIe LTE CAT7 modem for your RouterBOARDs. Drop-in replacement for FG621-EA – now offering 300 Mbps down / 100 Mbps up, with added Band 32 & Band 28 support.

Perfect for LtAP, RBM33G, or any system with miniPCIe or USB (if you’re using an adapter). Compared to the previous FG621 version, this miniPCIe unit has a smaller form-factor, so it should fit better inside more devices. Upgrade your mobile connectivity without changing the whole setup!

Features
  • LTE Cat7
  • Supports Band 28

Specifications

Details
Product code R11e-LTE7
MTBF Approximately 100000 hours at 25°C
Tested ambient temperature -10°C to 55°C
Max power consumption 5 W
RF connector type 2 uUFL
3G Category R8 (DL 42.2 Mbps; UL 5.76 Mbps)
3G bands 1 (2100MHz), 5 (850MHz), 8 (900MHz), 3 (1800MHz)
LTE Category 7 (DL 300 Mbps; UL 100 Mbps)
MIMO DL 2x2
MIMO UL 1x1
LTE FDD bands 1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz), 32 (1500MHz)
LTE TDD bands 38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
TAC 35312597
Certification CE, ROHS
IP rating IP00
