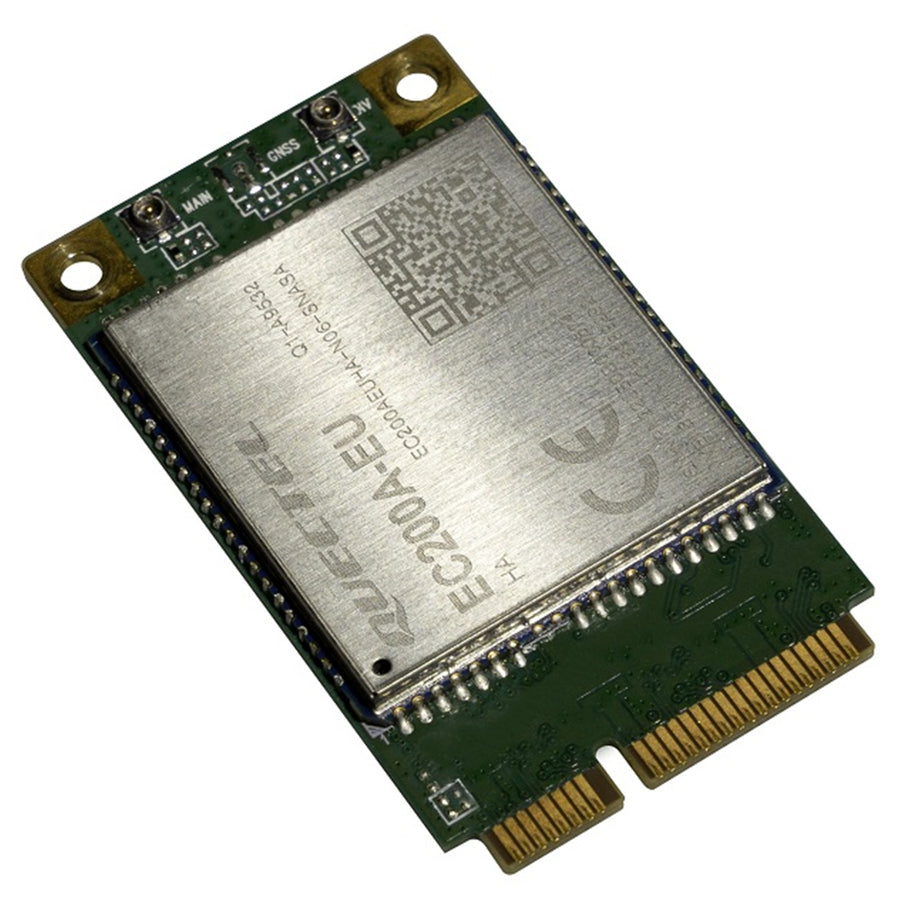

R11eL-EC200A-EU - MikroTik R11eL-EC200A-EU 2G/3G/4G/LTE Cat-4 MiniPCIe Card with B28 Support
Features
The MikroTik R11eL-EC200A-EU is an extra cost-effective upgrade of MikroTik's previous R11 LTE4 modem. It offers the same speed (up to 150 Mbps) and features as the earlier version, but the price is even lower now!
This mini-PCIe modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.
- LTE Category 4 Modem (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
- LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
- 3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
- 2G bands 3 (1800MHz) / 8 (900MHz)
Specifications
Technical Specifications
| Manufacturer | MikroTik |
|---|---|
| MPN | R11eL-EC200A-EU |
| Product Type | 2G/3G/4G/LTE Cat-4 MiniPCIe Card |
| LTE modem | EC200A-EU |
| TAC | 86314105 |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink |
| Supported target regions | EMEA/APAC/Australia |
| LTE FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| 2G Category | Class12 |
| 2G bands | 3 (1800MHz) / 8 (900MHz) |
| Max power consumption | 3 W |
| Operating temperature | -35°C to +70°C |
| Connector | 2x u.FL |
| Form Factor | miniPCIe |
| Brand | MikroTik |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 2.0 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
